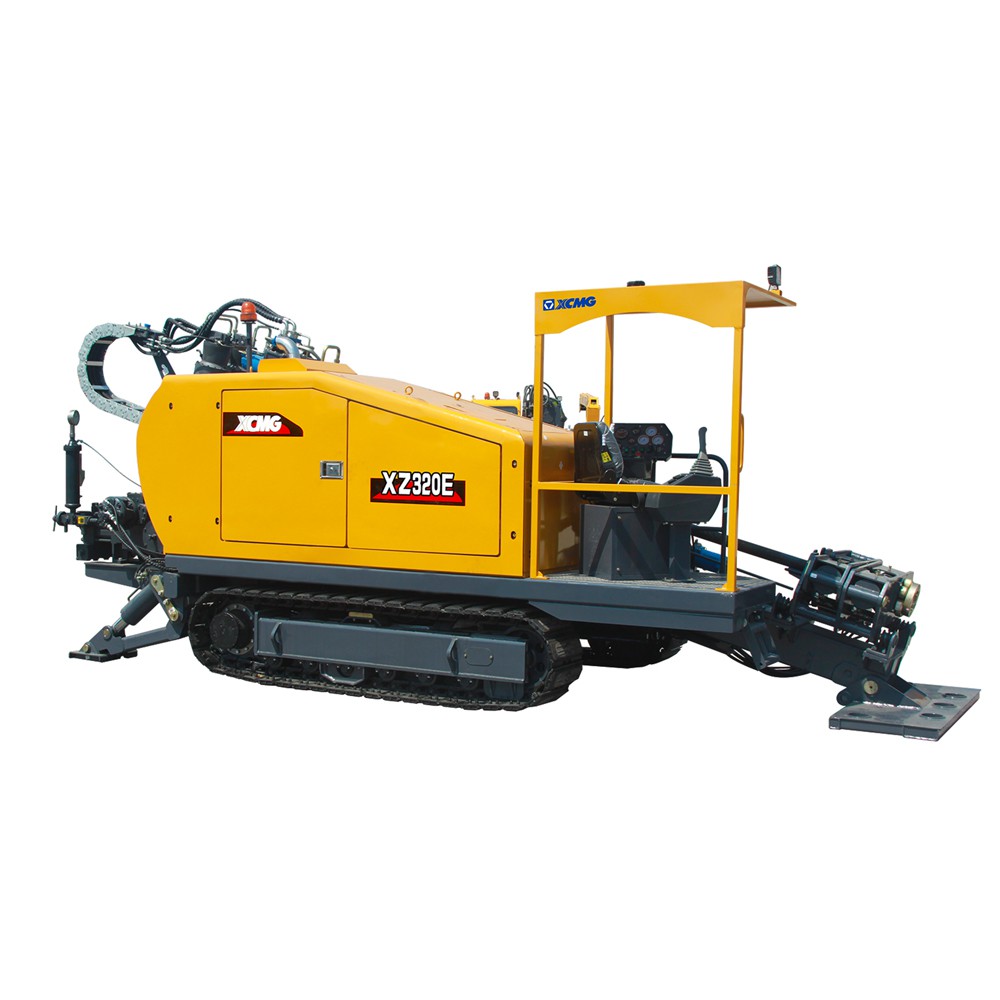

XCMG Official XZ320E Horizontal Directional Drill (HDD)

XCMG Official XZ320E Horizontal Directional Drill (HDD)

XCMG Manufacturer

FOB for Piling Mach Reference Price:Get Latest Price
Chat Now / EA
1 / EA (Min. Order)
Payment Terms:
View Details
This supplier also supports L/C,D/P,T/T,Western Union payments for offline orders.


Shipping

Product

Summary

Certification:ISO9001

Dimension(L*W*H):6200×2280×2450mm

Weight:10500kg

Power(W):154kw

Model Number:XZ320E

Brand Name:XCMG

Place of Origin:China

Power Type:Diesel

Type:Horizontal Directional Drill

Details

Product Name:357636-XZ320E

Display online time:2018-11-27

weight:10500.000kg

After-sales Service Provided:Engineers available to service machinery overseas

Warranty:12 Months

Condition:NEW

Moving Type:crawler

Max.thrust-pull force:345kN

Max. thrust-pull speed:36m/min

Max. spindle speed:140r/min

Max. inclination angle:20

Max. torque:12600N •m

engine model(China III ):QSB5.9-C210

rated power(China III ):154 kW / 2200 r/min

engine model(China II ):6BTAA5.9-C205

rated power(China II ):153 kW / 2200 r/min

engine model(China III EU Stage IIIA ):QSB6.7-C220

rated power(China III EU Stage IIIA ):164 kW/2200r/min


XZ320E Horizontal Directional Drill

1、Hydraulic pilot control, provide comfortable operating performance and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system.
2、Carriage and clamp using double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
3、High-speed sliding systems, piston motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.
4、Optional full-automatic pipeloader, drilling box can accommodate 40 piece of drill pipes, ensure one time reached 120 meters, efficient automation construction, reduce construction costs and labor intensity.
5、Support the diverse needs of customers, the machine can option configuration with the automatic (semi-automatic) full-automatic pipe loader, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing,mud throttling and other devices, can also be optioned more eco saving Dongfeng Cummins with EU Stage ⅢA.

Description

Unit

Parameter value

Engine

Manufacturers

Dongfeng Cummins

China III

Model

QSB5.9-C210

Rated Power

kW /r/min

154 / 2200

China II

Model

6BTAA5.9-C205

Rated Power

kW /r/min

153/ 2200

China III

EU Stage IIIA

Model

QSB6.7-C220

Rated Power

kW /r/min

164/2200

Thrust-Pull

Type

Pinion and rack drive

Max thrust-pull force

kN

345/345

Max thrust-pull speed

m/min

36

Rotation

Type

four motor

Torque

N·m

12600

Max spindle speed

r/min

140

Loader Crance

/

/

Max inclination angle

°

20

Pipe

Diameter × Length

mm×mm

Φ73×3000

Mud pump

Max Flow rate

L/min

320

Max pressure

MPa

8

Weight

kg

10500
