XCMG Official XJY240Z Multi-function Rescue Vehicle for sale
Chat Now
1 / EA (Min. Order)
Payment
Shipping
Promotion
Coupon
No Coupon
XCMG E-commerce Inc.
Follow
XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
Recommendation
Summary
Model Number:
Brand Name: XCMG
Place of Origin: China
Size:
Max Work Height:
Fuel Type:
Emission Standard:
Tank Capacity:
Horsepower:
Transmission:
Type:
Drive Wheel:
Certification:

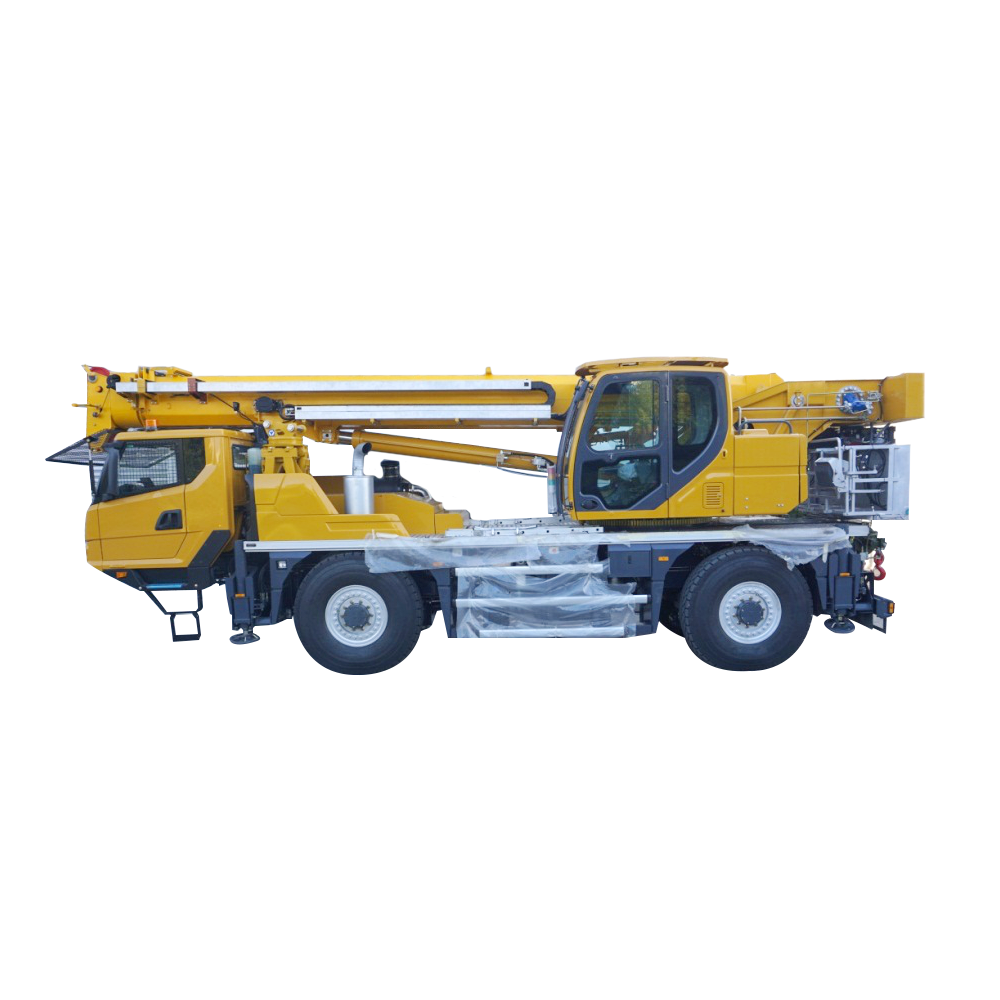

XJY240Z multi-functional rescue vehicle is a high mobility, multi-functional emergency rescue equipment which has the functions of lifting, saving, grabbing, dragging, pushing, cutting, expansion, etc. It can be used as an antecedent breaking vehicle to undertake the tasks of dredging cave-ins and removing obstacles, as well as a rescue vehicle to undertake the tasks such as high-low altitude, long-distance forcible entry and rescue etc. It is widely used in the emergency rescue of earthquake, landslide, flood, mudslide and other natural disasters.

Product features:

Multi-functional lifting arm

Equipped with fast change device, it can be quickly connected with a variety of modular machines and tools, with good versatility.

Equipped with electrical, hydraulic and gas quick connection connectors, convenient for quick connection with handheld operating tools.

Fast Wheel Exchange

High speed driving with wheel to reach the working site quickly.

Driving with triangular crawler near working site, as low ground pressure,  has strong operation ability on bad ground.

With common quick-change interface of tire and triangle caterpillar is convenient for quick switching and improved rescue efficiency .

Modular operation equipment

The modular interface design of the operation equipment can meet the needs of saving, grabbing, lifting, dragging, cutting and expanding various operation functions.

High mobility chassis

Strong off-road capability, stronger general performance, more efficient control.

Larger Angle of climbing, higher vertical over-obstacle height.

项目
Parameter item
参数
Parameter
项目
Parameter item
参数
Parameter
起重
Lifting
主臂最大吊重/ t20绞盘
Winch
拉力/ t
Pull
10
Max. lifting of main arm
副臂最大吊重/ t3抓斗
Grab bucket
抓重/ kg
Grab weight
2000
Max. lifting of folding arm
救援平台
Rescue platform
尺寸/ mm2420×975×1240液压剪
Hydraulic shear
剪力/ kN
Shear force
390
Platform size
承重/ kg400扩张器
Hydraulic Expander
扩张力/ kN
Expand force
120
Load
最大行驶速度/ km/h100最大爬坡能力60%
Max.speedMax.grade ability
最小转弯直径/ mm16000最小离地间隙/ mm355
Min. turning diameterMin. ground clearance
涉水深度/ mm600接近角/离去角/ °30/30
Wading depthApproach and Departure angle
轮距/ mm 2076轴距/ mm4500
TreadWheelbase
驱动形式4×4轴数2
Drive formAxle
外形尺寸/ mm10455×2550×3930整备质量/ kg24000
Outline sizeCurb weight
