XCMG 24m aerial work platform GTBZ24A Hydraulic articulated boom lift price
Chat Now
1 / EA (Min. Order)
Payment
Shipping
Promotion
Coupon
No Coupon
XCMG E-commerce Inc.
Follow
Xuzhou Construction Machinery Group Co., Ltd. (XCMG) was founded in 1943. Since then, XCMG has stood at the forefront of the Chinese construction machinery industry and developed into one of the domes
Recommendation

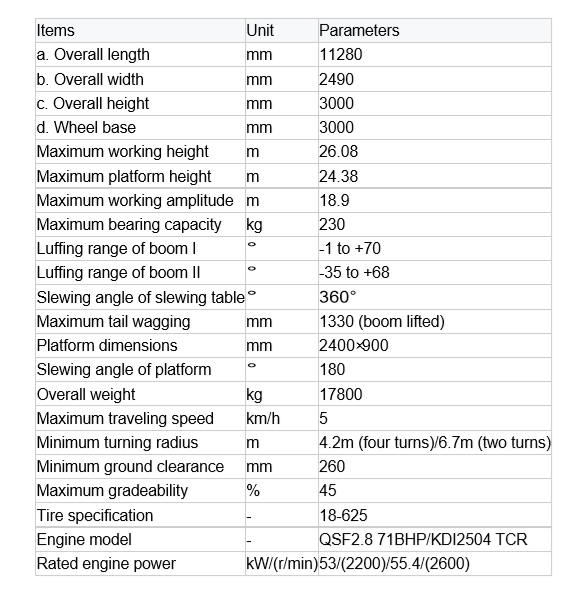

Summary
Weight: 17800kg
Overall Dimension: 11280*2490*3000 mm
Table Size: 2400*900 mm
Max Lifting Height: 24.38mm
Min Lifting Height: 260mm
Rated Loading Capacity: 230kg
Power: 53/(2200)/55.4/(2600)kW/(r/min)
Lift Drive / Actuation: Hydraulic
Lift Mechanism: Telescoping Lift
Model Number: GTBZ24A
Brand Name: XCMG
Place of Origin: Jiangsu, China
Certification: CE/ISO

Telescoping Lift aerial work platform GTBZ24A.


The 24m articulated boom aerial work platform features excellent maneuverability and fuel economy, four-wheel drive, outstanding extending capacity and higher working range, and highly efficient and stable working experience, with the gradeability leading the industry. The pioneering adaptive power energy-conservation system improves the fuel economy to the maximum degree. Featuring leading performance, accurate control, and high safety and reliability, this machine can meet the needs of the industry users, including building construction, bridge and equipment maintenance, shipyard, petrochemical, and renting industries.


Performance Characteristics:


1. Outstanding Extending Capacity and Working Range

The upward, downward, and spanning capacities are promoted to the maximum degree to realize multi-directional positioning function and efficiently reach the working space, with the maximum horizontal extending reach hitting 18.9m.


2. Superexcellent Maneuverability

The customized valve control system and all accurately controlled motions remarkably improve the motion smoothness and the flow anti-saturation design is applied to provide efficient and stable composite motion experiences.


3. Industry’s Highest Fuel Economy

Compared with traditional hydraulic system, the pioneering adaptive power energy-conservation system reduces by >30% the comprehensive fuel consumption under diversified working conditions.
