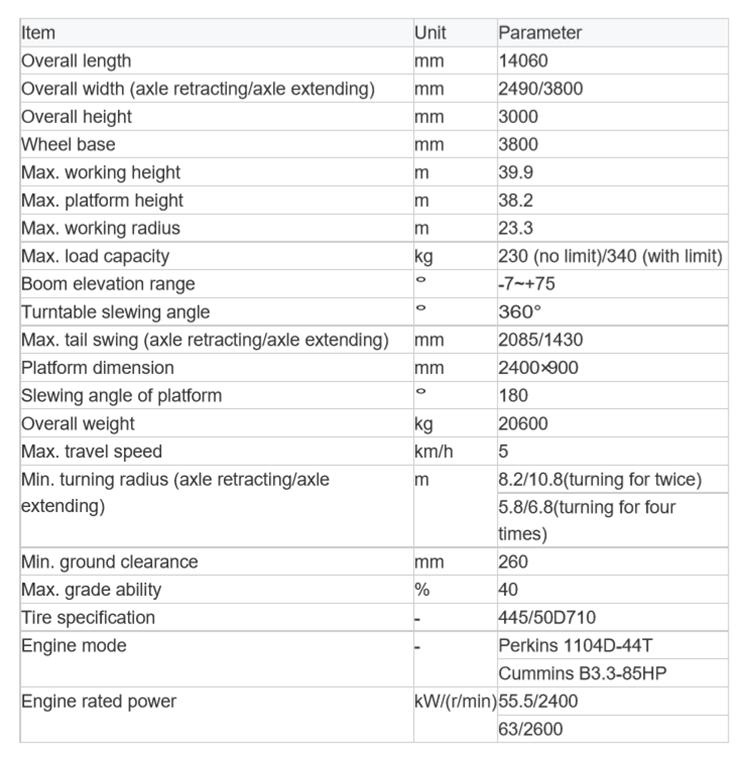

Summary
Weight: 20600kg
Overall Dimension: 14060*2490*3000 mm
Table Size: 2400*900 mm
Max Lifting Height: 39.9m
Min Lifting Height: 260mm
Rated Loading Capacity: 230kg
Power: 55.5kW/2400r/min
Lift Drive / Actuation: Hydraulic
Lift Mechanism: Telescoping Lift
Model Number: GTBZ38S
Brand Name: XCMG
Place of Origin: Jiangsu, China
Certification: CE/ISO

Telescopic Lift aerial work platform GTBZ38S.



Main configuration:



Four-wheel drive, four-wheel steering, axle balance, foam filled tires

Max. travel speed: 5km/h;

Max. grade ability: 40%;

Axle extending and retracting system: Max. span is 3.8m, providing better vehicle stability

Axle balance system: greatly improving the capability to pass through rugged road surface



XCMG CTBZ38S built-in traveling reducer integrating motor and reducer is selected, with fast and slow travel speed, which can meet the requirements for traveling in different environment. The traveling mechanism has self-braking function when traveling on a slope, meanwhile clutch device is equipped for dragging in event of failure.



Performance Highlights:



1. Double closed pump respectively controls left and right motors for chassis traveling, variable pump controls the hydraulic system of whole vehicle except traveling, which is directly driven by the engine to provide power for hydraulic system.

2. The speeds of inside and outside tires can be harmonized and controlled so as to improve smoothness in traveling and reduce tire wear.

3. The engine can be rotated out by removal of locking bolts, which is easy access to the engine and accessories for maintenance and service.
