Xuzhou Construction Machinery Group Co., Ltd. (XCMG) was founded in 1943. Since then, XCMG has stood at the forefront of the Chinese construction machinery industry and developed into one of the domes

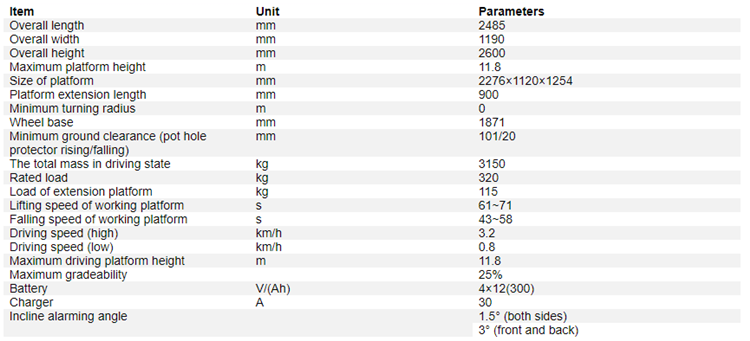

Summary
Weight:
3140kg
Overall Dimension:
2485*1190*2600mm
Table Size:
2276*1120*1254mm
Max Lifting Height:
11.8m
Min Lifting Height:
Rated Loading Capacity:
320Kg
Power:
Lift Drive / Actuation:
Hydraulic
Lift Mechanism:
Scissor Lift
Model Number:
GTJZ1212
Brand Name:
XCMG
Place of Origin:
Jiangsu, China
Certification:
CE and KC

12m hydraulic drive self-propelled
mobile scissor lift table aerial working platform GTJZ1212.
The scissors aerial work platform which
is the newly developed series by XCMG can provide customers with a variety of
personalization options. The compact structure can be applied flexibly in a
narrow space; with the new electric drive system, the driving is more smooth,
without emissions more environmentally friendly; industry-leading automatic
pothole protection system, safe and reliable; more extensible platform
workspace. Shear can be used in the truck series construction and maintenance
of commercial buildings, warehouses, airports and other areas.
Performance Characteristics:
1.Convenient Transportation And Stable
Operation
The telescoping sub-platform achieves
large working space and works with folding platform to realize easier
transportation and translocation.The industry-leading automatic pit protection
system and the widened wheel tread design enable your free operations even on
rough ground.
2.Environmental Cons Truction And
Convenient Service
Pure electric drive, zero release, low
noise and more environmental construction. Overall swing-type tray is
convenient for service and maintenance.
3.General And Modular Design
The modular design for the machine
guarantees the universality of parts, makes the customers’ repairs and
maintenances easier, and achieves more competitive cost.
