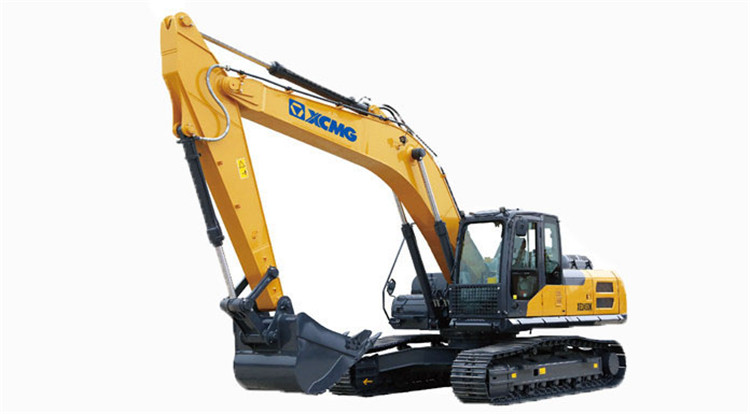

XCMG 25 ton Chinese Cheap Hydraulic Crawler Excavator Machine with Excavator Attachments XE245DK
Chat Now
1 / EA (Min. Order)
Payment
Shipping
Promotion
Coupon
No Coupon
XCMG E-commerce Inc.
Follow
Xuzhou Construction Machinery Group Co., Ltd. (XCMG) was founded in 1943. Since then, XCMG has stood at the forefront of the Chinese construction machinery industry and developed into one of the domes
Recommendation
Summary
Rated Speed: 2050rpm
Max Digging Radius: 10240mm
Machine Weight:
Maximum Digging Depth:
Maximum Digging Height:
Bucket capacity: 1.2m3
Operating Weight: 25500Kg
Model Number: XE245DK
Brand Name: XCMG
Place of Origin: China

XCMG Excavator 25 ton Chinese Cheap Hydraulic Crawler Excavator Machine with Excavator Attachments XE245DK.



I. More energy-saving and environmental friendly



1. The common rail super high pressure injection engine compliant with National III emission standard has low speed, large torque, low fuel consumption and good economy.



2. New generation hydraulic components have higher efficiency, more accurate control and higher reliability with combination of latest research achievements so that reliable strong digging force and excellent operating efficiency are ensured.



3. With new generation microcomputer control technology, fuel injection time and quantity of the engine can be controlled accurately so that the engine is always running in the optimum economic area, which ensures optimum efficiency and economy of the machine in various operating conditions.



II. More efficient return



1. The brand new optimization design with 1.3m³ reinforced bucket greatly improves digging and loading efficiency.



2. The self-developed intelligent control system realizes high efficiency and low fuel consumption in mine heavy-load mode through automatic flow distribution and accurate power matching control.



III. More reliable and durable



1. The integrated electric system has more concise design and higher reliability.



2. The optimization design of box structure of work devices and XCMG’s own patented technology support contribute higher reliability.



(1) The structure of middle filling grease is adopted at the root of front end of arm so that reliability is improved.



(2) New T-type sleeve bearing is adopted so that wear resistance is improved



3. New type bucket design improves abrasive resistance, enhances the strength of ear plates and arc plates and improves service life.



4. The detachable triangle anti-collision beam is equipped as standard configuration to protect vehicle body in all directions so that deformation and cracking of vehicle body caused by impact of external force are greatly reduced.



5. Brand new mine reinforced chassis has wide track gauge and long track shoe, more reliable and durable.



6. New type thermal management system is developed to improve operating temperature and environment of engine and hydraulic system so as to improve system efficiency, reduce fuel consumption and prolong service life of components.



7. Electrical plug-in components with world-class quality have waterproofing grade up to IP56 and better reliability.



IV. More intelligent control



1. Advanced XCMG excavator intelligent management system, with the adoption of CAN bus communication and Internet of Things technology, the integration of main control system, engine ECM, monitoring system, control panel, GPS cloud point system and OBD system, digital sharing of machine information is achieved and intelligence level is improved.



2. With convenient mobile phone APP micro service, location of excavator, operating conditions, working hours, fuel consumption and maintenance period can be mastered anytime anywhere.



3. Autonomous controller collects the altitude of vehicle position and engine intake pressure, automatically determines and confirms database, and reminds the operator on the display to select plateau model.



V. More comfortable and safer



1. Brand new cab has super large view, lower noise and more comfortable operating environment. Large power air-conditioner has better refrigerating effect. Integrated control panel brings more comfortable control, 8-inch large display is more fashionable.



2. With family style shield-shape appearance the machine has steady streamline, elegant and full of power.



3. With one-key emergency stop equipped, construction security is guaranteed.



VI. Convenient maintenance and service



1. Engine filter elements are placed together, which brings convenient and fast maintenance.

Item

Unit

Parameters

Operating weight

Kg

25500

Bucket capacity

0.91.4

Engine

Model

/

Cummins QSB6.7

No. of cylinders

/

6

Rated power/speed

kw/rpm

150/2050

Maximum torque/speed

N.m

825/1250

Displacement

L

6.7

Main performance

Travel speedH/L)

km/h

5.3/3.6

Swing speed

r/min

11.2

Gradeability

°

≤35

Ground pressure

kPa

56.7

Bucket digging force

kN

185

Arm digging force

kN

129

Maximum tractive force

kN

199

Hydraulic system

Main pump

/

Two piston pumps

Rated flow of main pump

L/min

2×241

Main safety valve pressure

MPa

34.3/37

Travel system pressure

MPa

34.3

Swing system pressure

MPa

25

Pilot system pressure

MPa

3.9

Oil Capacity

Fuel tank capacity

L

400

Hydraulic tank capacity

L

220

Engine oil capacity

L

19.5

Appearance size

A Overall length

mm

10170

B Overall width

mm

3190

C Overall height

mm

3130

D Width of platform

mm

2996

E Track length

mm

4445

F Overall width of chassis

mm

3190

G Track shoe width

mm

600

H Wheel base of crawler

mm

3655

I Track gauge

mm

2590

J Counterweight clearance

mm

1062

K Min. ground clearance

mm

490

L Min. tail swing radius

mm

2955

M Track height

mm

943

Working scope

A Max. digging height

mm

10048

B Max. dumping height

mm

7123

C Max. digging depth

mm

6972

E Max. vertical wall digging depth

mm

5567

F Max. digging radius

mm

10240

G Min. swing radius

mm

3510

Standard

Length of boom

mm

6000

Length of arm

mm

2964

Bucket capacity

1.3

Length of arm

mm

2500

Bucket capacity

1.2

Rock bucket
