Summary

Rated Speed: 2300rpm

Max Digging Radius: 3900mm

Machine Weight: 1795KG

Maximum Digging Depth: 2290mm

Maximum Digging Height: 3475mm

Bucket capacity: 0.04m3

Operating Weight: 1795KG

Model Number: XE15U

Brand Name: XCMG

Place of Origin: Jiangsu, China

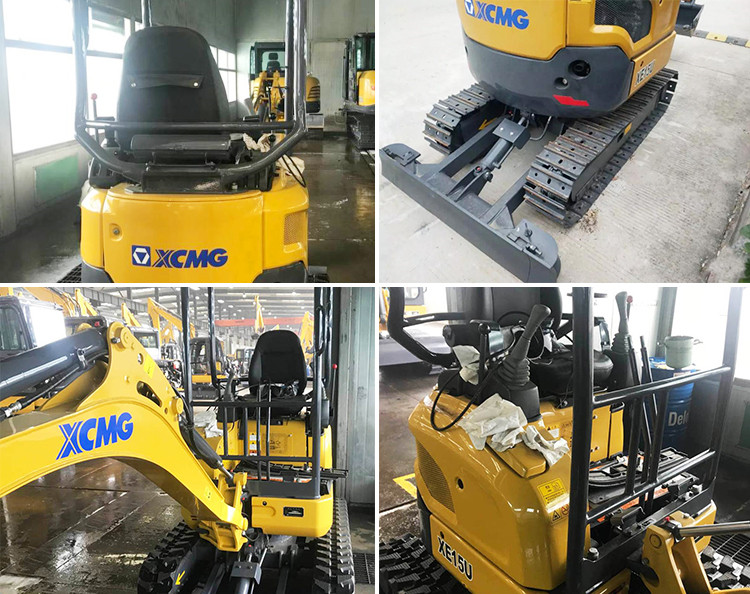

XCMG Mini Excavators 1.5 Ton Crawler Excavator Machine XE15U.

XE15U hydraulic excavator uses a mechanical injection oil engine with national II emission standards and has characteristics of strong power, energy conservation and environmental protection, high reliability and excellent performance.

With latest technological achievements used, key hydraulic parts have low energy consumption, fast response speeds, accurate control, and small impact forces, and can maintain strong mining ability and high operation efficiency. Perfect matching of the engine and hydraulic system power ensures that the engine can work in an area with optimal fuel consumption, improves a fuel utilization ratio, and saves the cost. A new-type hydraulic system provides enough flow for all working devices and has high efficiency.

1. More efficient return

Tailless design for a turning radius ensures that the XE15U hydraulic excavator will not touch obstacles at the tail in narrow working conditions.

2. More reliable and durable

A four-point supporting shed that meets safety standards is used for the cab, and widens the driver's horizon while ensures the shed's strength. Seats are configured with standard safety belts, improving driver's working security.

3. More comfortable and safe

Brand-new designed hand holder, cup holder, etc. improve operation comfort and convenience maximally.

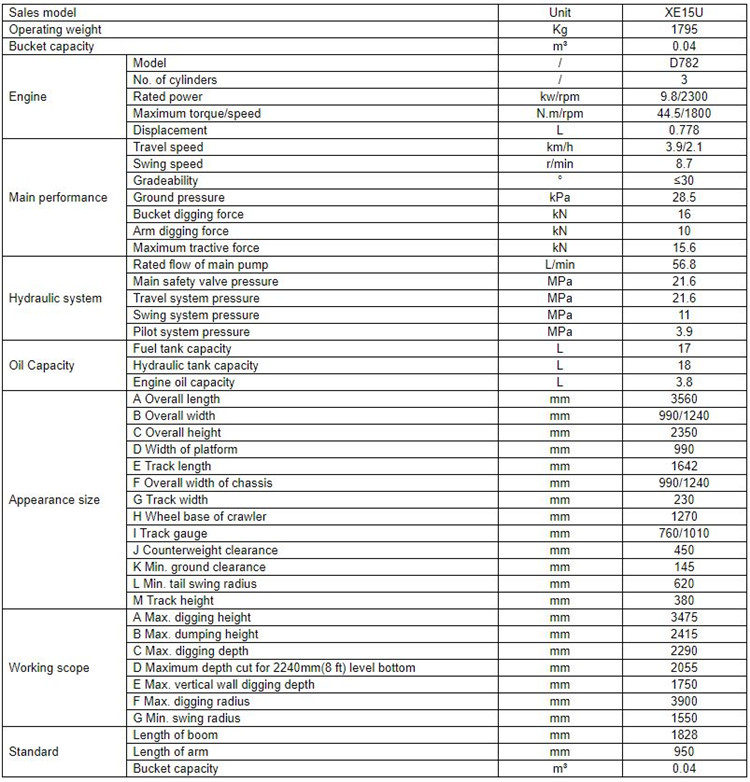

Sales model		Unit	XE15U
Operating weight		Kg	1795
Bucket capacity		m³	0.04
Engine	Model	/	D782
	No. of cylinders	/	3
	Rated power	kw/rpm	9.8/2300
	Maximum torque/speed	N.m/rpm	44.5/1800
	Displacement	L	0.778
Main performance	Travel speed	km/h	3.9/2.1
	Swing speed	r/min	8.7
	Gradeability	°	≤30
	Ground pressure	kPa	28.5
	Bucket digging force	kN	16
	Arm digging force	kN	10
	Maximum tractive force	kN	15.6
Hydraulic system	Rated flow of main pump	L/min	56.8
	Main safety valve pressure	MPa	21.6
	Travel system pressure	MPa	21.6
	Swing system pressure	MPa	11
	Pilot system pressure	MPa	3.9
Oil Capacity	Fuel tank capacity	L	17
	Hydraulic tank capacity	L	18
	Engine oil capacity	L	3.8
Appearance size	A Overall length	mm	3560
	B Overall width	mm	990/1240
	C Overall height	mm	2350
	D Width of platform	mm	990
	E Track length	mm	1642
	F Overall width of chassis	mm	990/1240
	G Track width	mm	230
	H Wheel base of crawler	mm	1270
	I Track gauge	mm	760/1010
	J Counterweight clearance	mm	450
	K Min. ground clearance	mm	145
	L Min. tail swing radius	mm	620
	M Track height	mm	380
Working scope	A Max. digging height	mm	3475
	B Max. dumping height	mm	2415
	C Max. digging depth	mm	2290
	D Maximum depth cut for 2240mm(8 ft) level bottom	mm	2055
	E Max. vertical wall digging depth	mm	1750
	F Max. digging radius	mm	3900
	G Min. swing radius	mm	1550
Standard	Length of boom	mm	1828
	Length of arm	mm	950
	Bucket capacity	m³	0.04
