XCMG official 14m China electric articulating boom lift GTBZ14J self-propelled equipment price
Chat Now
1 / EA (Min. Order)
No Coupon
XCMG E-commerce Inc.
Xuzhou Construction Machinery Group Co., Ltd. (XCMG) was founded in 1943. Since then, XCMG has stood at the forefront of the Chinese construction machinery industry and developed into one of the domes
Weight: 6900kg
Overall Dimension: 6.69*2.26*2.13m
Table Size: 1.83*0.76*1.15m
Max Lifting Height: 14.2m
Min Lifting Height:
Rated Loading Capacity: 230kg
Power: 38KW/3000rpm
Lift Drive / Actuation: Electric Motor
Lift Mechanism: Articulated Lift
Model Number: GTBZ14J
Brand Name: XCMG
Place of Origin: Jiangsu, China
Certification: CE

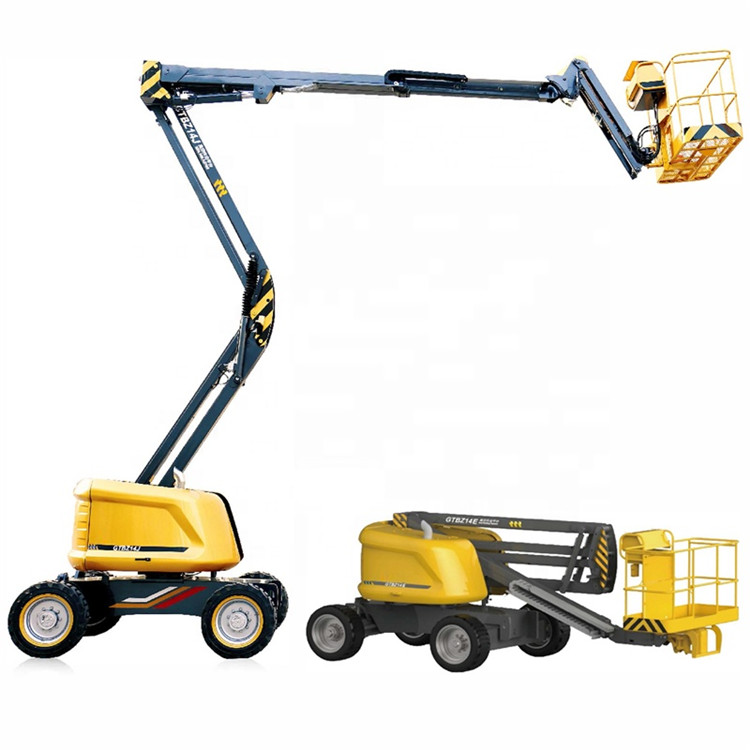

14m China electric articulating boom lift self-propelled equipment GTBZ14J.


14m-level articulated boom aerial work platform aiming at meeting customer demand has intelligent and perfect control system, adopts humanized layout and lubrication-free design, is easy for use and maintenance and provides comprehensive safety protection and abundant configuration options.


Model features:

(1) Flexibility and efficiency

"Σ-type” double link jib has characteristics of compact structure and flexible extension, which can achieve vertical lifting and horizontal extension and has very strong obstacle climbing ability;180° rotatable platform provides bigger operation range; Narrow-type rotary table with compact structure can achieve" zero tail wagging" and improve operation efficiency.


(2) Super strong site adaptability

Cross-country type chassis, four-wheel drive system, pouring-type cross-country wide type, full-time axle balanced system and 38kw strong power are configured so that the equipment has excellent terrain adaptability.


(3) Advanced performance, safety and reliability

Full-range operation, visual and friendly control panel and easy operation; Electro-hydraulic proportional system control is accurate and efficient. Protective measures such as chassis incline protection, platform overload alarming, emergency landing, safety speed limit, flexibility start-stop technology, etc. are provided.
