XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
Recommendation

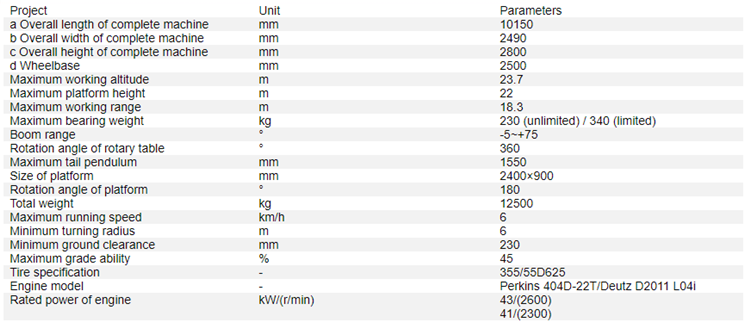

Summary
Weight: 12500kg
Overall Dimension: 10150*2490*2800 mm
Table Size: 2400*900 mm
Max Lifting Height: 23.7m
Min Lifting Height:
Rated Loading Capacity: 230 kg (unlimited) / 340kg (limited)
Power: 43KW/2600 r/min
Lift Drive / Actuation: Hydraulic
Lift Mechanism: Telescoping Lift
Model Number: GTBZ22S
Brand Name: XCMG
Place of Origin: Jiangsu, China
Certification: CE

22m hydraulic mobile telescopic boom lift equipment GTBZ22S.



It is the highest-efficiency straight boom aerial work platform applied at the elevation of 22 meters. Being four-wheel driven, it has the top-ranking grade ability among the industry; provided with the double-operating-radius curve, the machine has the industry-leading operating altitude/radius and carrying capacity. This type of machine, not only simple and high efficiency, but also safe and reliable, may satisfy the diversified demands of different industrial users engaged in building construction, bridge and equipment maintenance, shipbuilding, petrochemical engineering, lease etc.



Model features:

Main configuration: Four-wheel drive, two-wheel steering, axle balance, and foam per fusion tires.

(1) Maximum running speed 6km/h;

(2) Maximum climbing rate of 45% - the highest level in the industry;

(3) Axle balance system - substantially increase the ability of vehicles through the rugged road;

(4) Select built-in reducer of motor and reducer integrated, with two speed of fast speed and low speed to meet the driving requirements of vehicle in different environments. In the ramp, the travelling mechanism is equipped with self-braking function, while setting the clutch device, to facilitate the drag in the event of failure.
