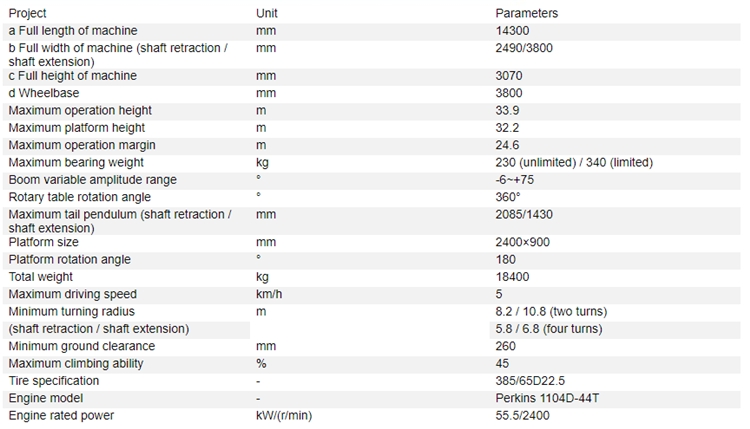

Summary
Weight:
7980kg
Overall Dimension:
14300*2490*3070mm
Table Size:
2400*900mm
Max Lifting Height:
33.9m
Min Lifting Height:
Rated Loading Capacity:
230kg(unlimited)/340kg(limited)
Power:
55.5kw/2400r/min
Lift Drive / Actuation:
Hydraulic
Lift Mechanism:
Telescoping Lift
Model Number:
GTBZ32S
Brand Name:
XCMG
Place of Origin:
Jiangsu, China
Certification:
ISO
32m china
hydraulic telescopic boom lift equipment GTBZ32S.
It is a straight boom aerial work platform with the
widest scope of application at the same elevation. It is featured by: the
widest scope of application among the products operating under the same
elevation to enhance the ability of operation; the strongest capacity of
loading within the industry to satisfy the user’s demands on heavy load; and
the excellent capacity of climbing drive to adapt itself to all kinds of
complicated road conditions. The machine may be widely used for building
operations, bridge & equipment maintenance, shipbuilding, petrochemical
engineering and other related industries.
1. Super-strong Capacity of Climbing
Drive
The electronic steering and wide foam types both
attribute to an excellent capacity of climbing drive, thus adapting itself to
all kinds of complicated road conditions.
2. Strongest Capacity of Loading Within
the Industry
The maximum load capacity of 30&32 meters is
480kg&340kg respectively ranks the first within the industry, thus
satisfying the user’s demands on heavy load.
3. Excellent Working Range
The double-load
operating-curve control technologies realizes a real-time monitoring over
loads, thus producing a strong capacity of operation, as well as a widest
working range at the same elevation.
