XCMG 700 ton Largest Hydraulic Mining Excavator Equipment XE7000.



XE7000 is the largest tonnage mining excavator independently developed by XCMG to meets requirements of large-scale mining construction.



Adopting dual power unit control system, the excavator is equipped with intelligent monitoring and fault self-diagnosis system, centralized fire extinguishing system, centralized lubrication system and a variety of safety equipment to ensure safe and efficient operation of the whole machine, as well as simple operation and convenient maintenance.



According to the characteristics of different mining construction, the machine can flexibly select two power options (diesel engine or motor engine) and two working modes (shovel or backhoe).

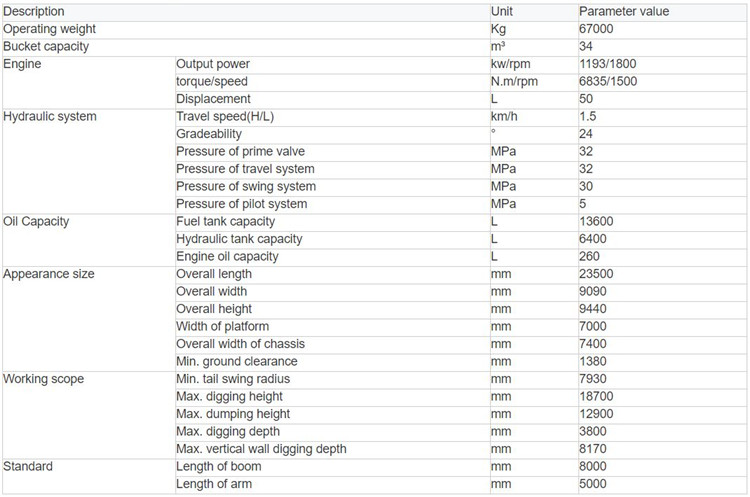

Description

Unit

Parameter value

Operating weight

Kg

67000

Bucket capacity

34

Engine

Output power

kw/rpm

1193/1800

torque/speed

N.m/rpm

6835/1500

Displacement

L

50

Hydraulic system

Travel speed(H/L)

km/h

1.5

Gradeability

°

24

Pressure of prime valve

MPa

32

Pressure of travel system

MPa

32

Pressure of swing system

MPa

30

Pressure of pilot system

MPa

5

Oil Capacity

Fuel tank capacity

L

13600

Hydraulic tank capacity

L

6400

Engine oil capacity

L

260

Appearance size

Overall length

mm

23500

Overall width

mm

9090

Overall height

mm

9440

Width of platform

mm

7000

Overall width of chassis

mm

7400

Min. ground clearance

mm

1380

Working scope

Min. tail swing radius

mm

7930

Max. digging height

mm

18700

Max. dumping height

mm

12900

Max. digging depth

mm

3800

Max. vertical wall digging depth

mm

8170

Standard

Length of boom

mm

8000

Length of arm

mm

5000
