XCNG Official XGS22 Brand New 22m Self-Propelled Telescopic Boom Lift Working Platform for Sale
Chat Now
1 / EA (Min. Order)
No Coupon
XCMG E-commerce Inc.
Xuzhou Construction Machinery Group Co., Ltd. XCMG was founded in 1943. Since then, XCMG has stood at the forefront of the Chinese construction machinery industry and developed into one of the domes

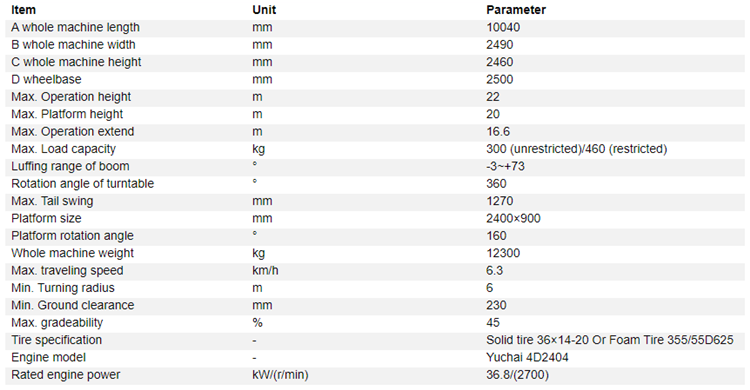

Weight: 12300kg
Overall Dimension: 10040*2490*2460mm
Table Size: 2400*900mm
Max Lifting Height: 22m
Min Lifting Height:
Rated Loading Capacity: 300 (unrestricted)/460 (restricted)kg
Power: 36.8kw
Lift Drive / Actuation:
Lift Mechanism: Telescoping Lift
Model Number: XGS22
Brand Name: XCMG
Place of Origin: Jiangsu, China
Certification: CE/ISO9001

XCNG Official XGS22 Brand New 22m Self-Propelled Telescopic Boom Lift Working Platform.


XGS22 self-propelled Telescopic Mobile Elevating Work Platform highlights with outstanding performance, efficiency, dynamics and easy operation. It is leading in the industry with maximum carrying capacity of 460kg, high operation height and amplitude, suit for construction of large load and wide operation area.

Advantages and features:
* Dual parallel linkage and telescopic arm could realize the dynamic adjustment of vehicle center of gravity, making the complete vehicle more stable.

* With 4WD, off-road wide tires and axle balance system, the machine is excellent in drive and adaptability to road.

* Multi-load envelope control technologies could real-time monitor the load, effectively making use of boom and making its work performance at leading edge.

* Auto balance extending mechanism improves safety of extending mechanism and extends service life of steel rope.

* Electrical control system adopts the distributed control technologies based on PLC and CAN, implementing the auto leveling, the weighting of platform payload, the dynamic monitoring and the fault warning.
