XCMG elevated lift XGS28 28m hydraulic telescopic boom lift
¥10000.00-¥1000000.00
1 / EA (Min. Order)
Payment
Shipping
Promotion
Coupon
No Coupon
XCMG E-commerce Inc.
Follow
Xuzhou Construction Machinery Group Co., Ltd. XCMG was founded in 1943. Since then, XCMG has stood at the forefront of the Chinese construction machinery industry and developed into one of the domes
Recommendation

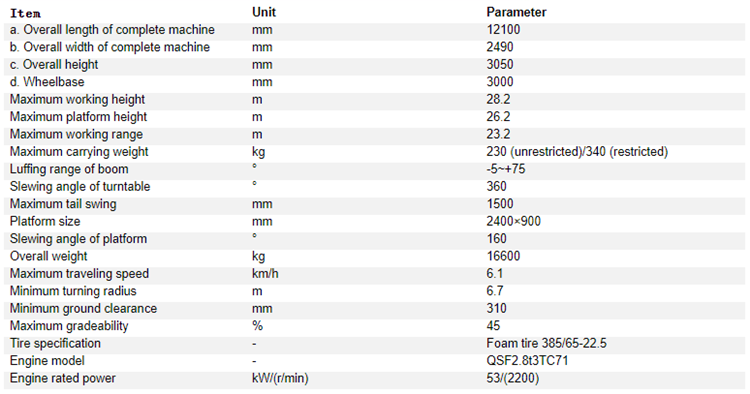

Summary
Weight: 16600kg
Overall Dimension: 12100*2490*3050mm
Table Size: 2400*900mm
Max Lifting Height: 28.2m
Min Lifting Height:
Rated Loading Capacity: 230/340kg
Power: 53kw
Lift Drive / Actuation: hydraulic
Lift Mechanism: Telescopic lift
Model Number: XGS28
Brand Name: XCMG
Place of Origin: Xuzhou, Jiangsu, China
Certification: CE/ISO9001

XCMG elevated lift XGS28 28m hydraulic telescopic boom lift.



XGS28 elevated lift telescopic boom lift developed with Max. working height at 28.2m, max. payload at 340kg, max. gradeability at 45%.



This vehicle is structured as three sections of telescopic arms and tower arm mechanism, with a small fly jib, featuring wide work range. Dual payload control system is adopted to adjust the work range depending on the payload, meeting the different loading requirements and thus becoming an ideal selection in the construction of building, bridges, steel structures and stadiums.



Product Highlights:



1.Adjust the work range by itself according to the payload, meeting the different loading requirements.



2.Making the construction more effective, suitable for the relatively low and narrow site.



3.Greatly dropping the fault ratio and extend the service life of complete vehicle.



4.Making the fault diagnosis and maintenance easier.

uMore telescopic elevated lift
