XCNG XGS58 58m self propelled telescopic boom elevated lift
¥10000.00-¥1000000.00
1 / EA (Min. Order)
Payment
Shipping
Promotion
Coupon
No Coupon
XCMG E-commerce Inc.
Follow
Xuzhou Construction Machinery Group Co., Ltd. XCMG was founded in 1943. Since then, XCMG has stood at the forefront of the Chinese construction machinery industry and developed into one of the domes
Recommendation

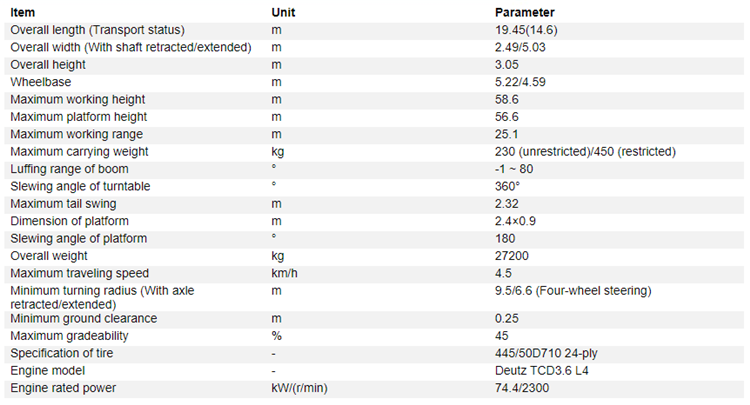

Summary
Weight: 27200kg
Overall Dimension: 19450*2490*3050mm
Table Size: 2400*900mm
Max Lifting Height: 58m
Min Lifting Height:
Rated Loading Capacity: 230/450kg
Power: 74.4KW
Lift Drive / Actuation: hydraulic
Lift Mechanism: Telescopic lift
Model Number: XGS58
Brand Name: XCMG
Place of Origin: Xuzhou, Jiangsu, China
Certification: CE/ISO9001

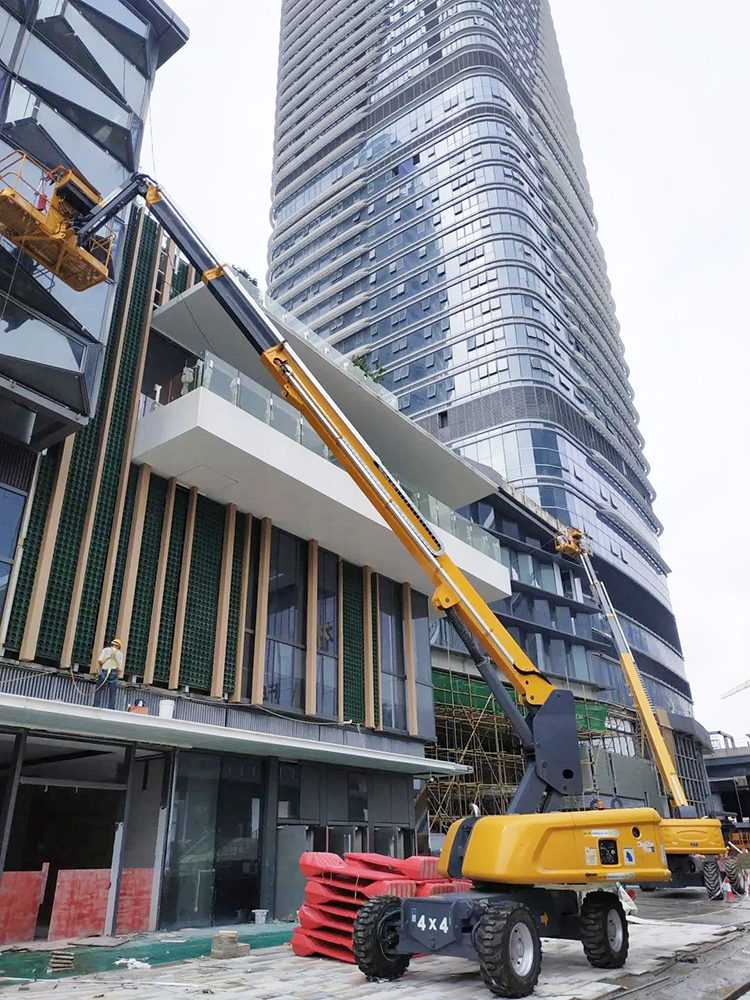

XCNG XGS58 58m self propelled telescopic boom elevated lift.



XGS58 self propelled telescopic boom elevated lift: platform height 58.6m, maximum platform carrying capacity 450KG; luffing angle of the boom is as large as 80° for high and extra-high aerial operation; precise operation, flexible telescopic jibs that cross various complicated application structures, including steel structure, buildings of petrochemical engineering, power generation and wind power plant, stadium, conference center and theatre.



Advantages & Highlights:



1.360° turning angle and luffing and telescopic straight crank arm ensure complete operation of surrounding buildings without moving, which improves operation efficiency greatly.



2.X-shaped swinging axle system and 4WD independent swing; large wheelbase could be realized for low-altitude or slope traveling; wide span could be reached for superstructure boom, keeping the support steady.



3.The swinging of crank could shorten the transportation length; crank locking and monitoring, making the work safer.



4.Customized sheet-type proportional valves have the flow curve design according to action features, ensuring the excellent micro manipulation.



5.Dual leveling mode: telescopic boom and work platform, improving the product precision up to within 2.5° and hence making the aerial work safer.

uMore telescopic elevated lift
