- Rated Load:5000kg
- Dimension(Long* Breadth * High):8225*3016*3515mm
- Type:Front Loader
- Place of Origin:Xuzhou, Jiangsu, China
- Model Number:ZL50GN
- Brand Name:XCMG
- Certification:ISO/CE
- Dimension(Long * Breadth * High):8225*3016*3515mm
- Product Name:G5ABEEA307BFDA
- Display online time:2020-08-07
- weight:17500.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:wheel
- Machine Weight:17.5t
- Engine Brand:Weichai/Cummins/Shangchai
- Power(W):162 KW
- Bucket capacity:2.5~4M3
- dump clearance at max lift:3100~3780mm
XCMG wheel loader
ZL50GN 5 ton loader.
In recent years, XCMG made numerous
breakthroughs in loader technology development and continuously make history in
loader industry. Implementation of “service throughout full life cycle"
brings about trouble-free lifetime experience! Marketing service network spread
around the world covers extensive areas.
Product Overview:

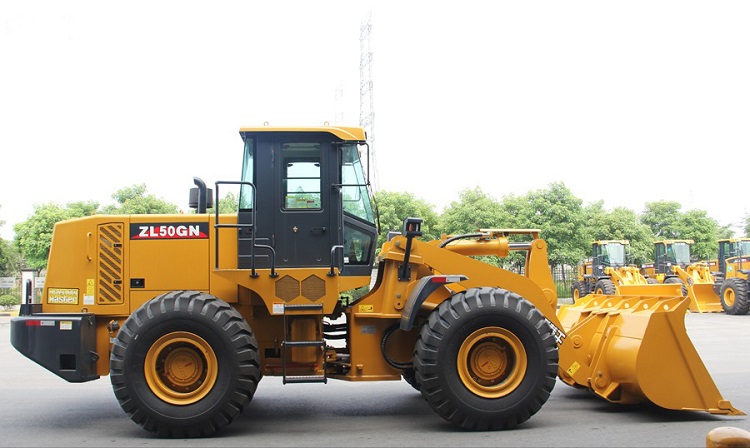

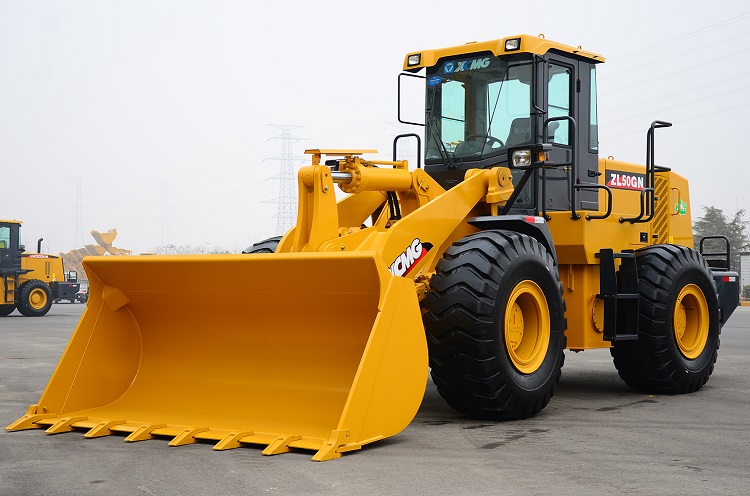

XCMG wheel loader ZL50GN is the most
popular model of China 5t wheel loader, Now ZL50GN is upgrading to new model
ZL50GV equipped with EURO III engine with electric injector, new model will
have high performance.
ZL50GN wheel loader is the latest
cross-generation product developed ,the first-choice equipment for the
production organization the fields of ports, mines, engineering constructions,
and logistics.
Performance
Highlights:
1.Heavy load for the rocky condition;
the working device and front and rear frame feature thick board of high
strength, reasonable distribution and strong carrying capacity.
2.The large rock bucket with capacity
of 2.5m³ is improved in terms of the work efficiency and adaptation. The bucket
teeth adopt the structure of toolholder and sleeve. The cutting blade and
bucket edge are equipped with protection device, featuring excellent abrasion
resistance and shock resistance.
3.The thickness of the front frame lug
and baseboard is 70mm, and the thickness of the up and down articulated board
is 30mm. The machine is superior among the products of same kind in terms of
the structural strength and carrying capacity.
4.160kN breakout force handle all
kinds of materials with ease,≥3.5m high dumping capacity handle the severe
conditions with ease.

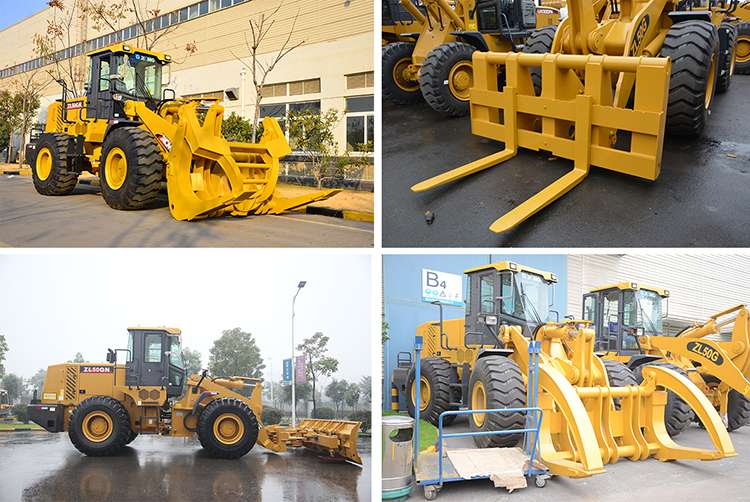

Optional parts:
Grasping grass pliers / Sliding fork /
Standard bucket/ Side dumping / Light material Blade bucket
3.5m3/4m3/4.5m3,2.5m3 Mine bucket.
|
Overall dimensions |
Overall length (bucket on the ground) |
8165 mm |
|
Overall width |
2850 mm |
|
|
Bucket width |
3016 mm |
|
|
Overall height |
3485 mm |
|
|
Wheel base |
3300 mm |
|
|
Tread |
2250 mm |
|
|
Min. ground clearance |
450 mm |
|
|
Specification |
Rated capacity |
5000 kg |
|
Bucket volume |
2.5 m3 (Bucket for rock) |
|
|
3 m3 (Standard bucket) |
||
|
3.5 m3 (Bucket for light material) |
||
|
4 m3 (Bucket for light material) |
||
|
Operating weight |
17500kg±300kg |
|
|
Traveling speeds |
ForwardⅠ/Reverse Ⅰ |
0~11.5/0~16.5 km/h |
|
Forward Ⅱ/Reverse Ⅱ |
0~38 km/h |
|
|
Forward Ⅲ/Reverse Ⅲ |
||
|
Forward Ⅳ/Reverse Ⅳ |
||
|
Max. tractive force |
165±5kN |
|
|
Max. climbing gradient |
30 º |
|
|
Max. dumping angle |
45 º |
|
|
Max. dumping height |
≥3100 mm (main cutting edge) |
|
|
Dumping reach |
≥1100 mm (main cutting edge) |
|
|
Dumping angle of bucket |
≥45 º |
|
|
Max. Breakout force |
Breakout force of bucket |
170 KN |
|
Breakout force of lifting |
134 KN |
|
|
Maximum digging depth |
40 mm (the bucket bottom is level) |
|
|
Lifting time of boom |
≤6 s |
|
|
Total cycling time |
≤11 s |
|
|
Min. Turning radius |
Outside of the bucket |
7300 mm |
|
Center of the tyre |
6400 mm |
|
|
Turning angle of the chassis |
35 º |
|
|
Oscillating angle of the rear axle |
±12 º |
