XCMG Official XE135D 13 ton Crawler Excavator for sale
Summary
- Rated Speed:5.2kM/h
- Max Digging Radius:8304mm
- Maximum Digging Depth:5546mm
- Maximum Digging Height:8638mm
- Bucket capacity:0.32~0.61m³
- Operating Weight:13200kg
- Model Number:XE135D
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- weight:13200.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

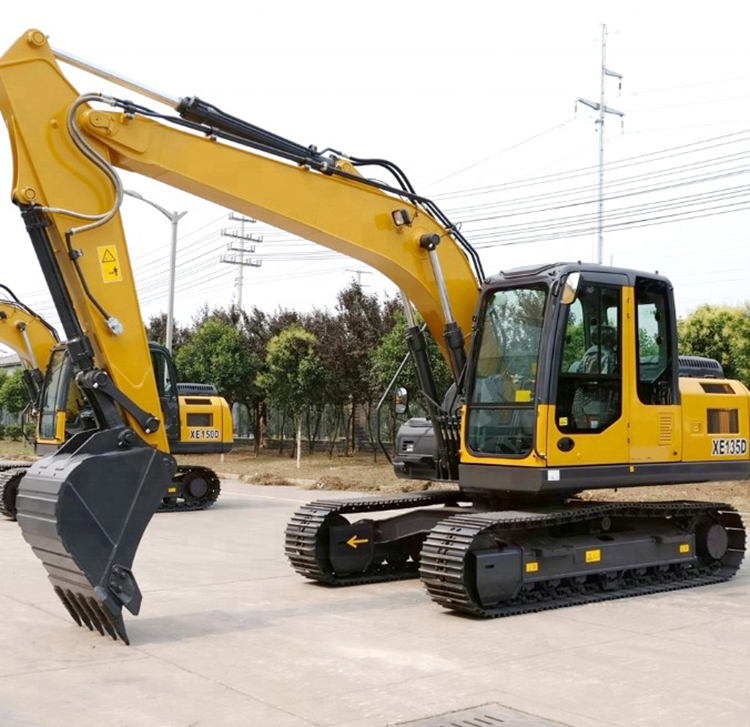

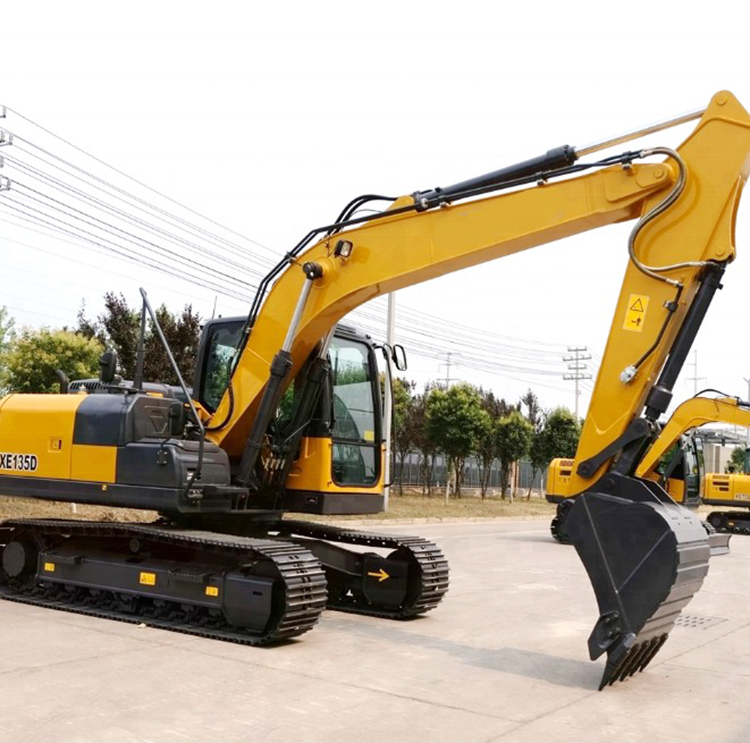

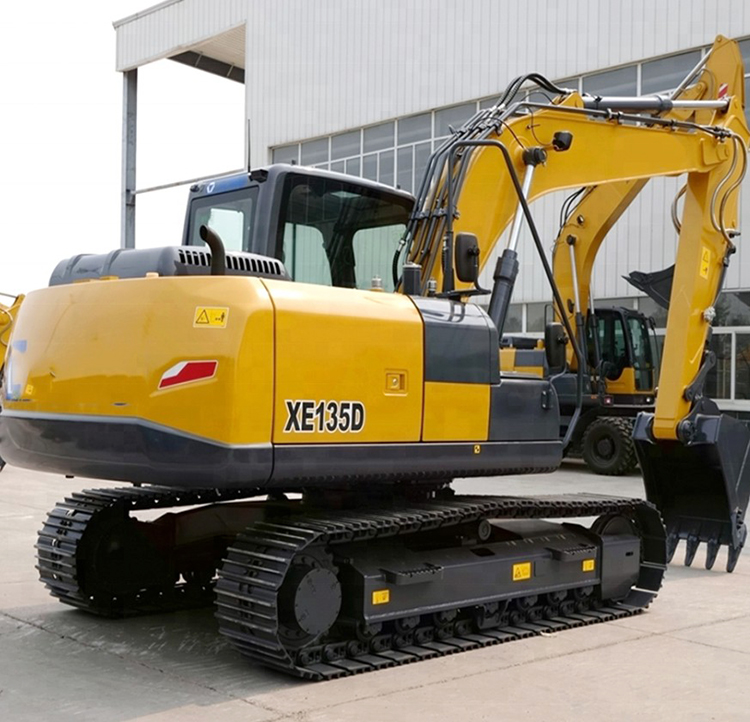

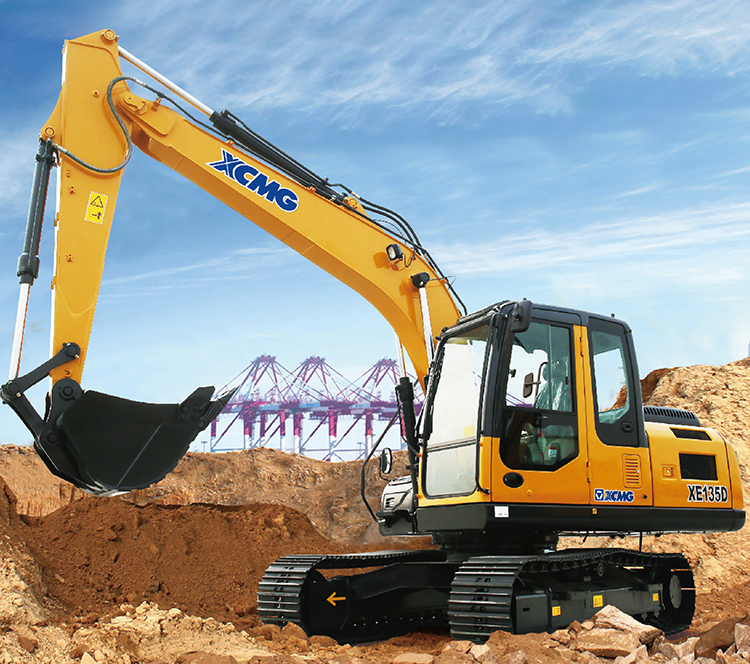

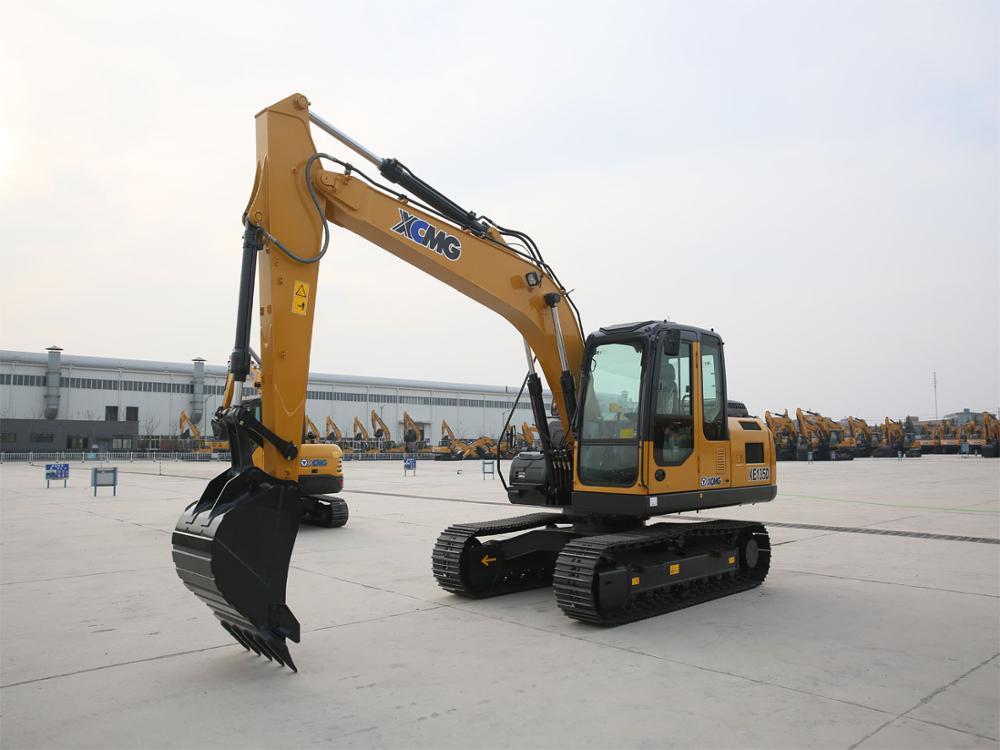

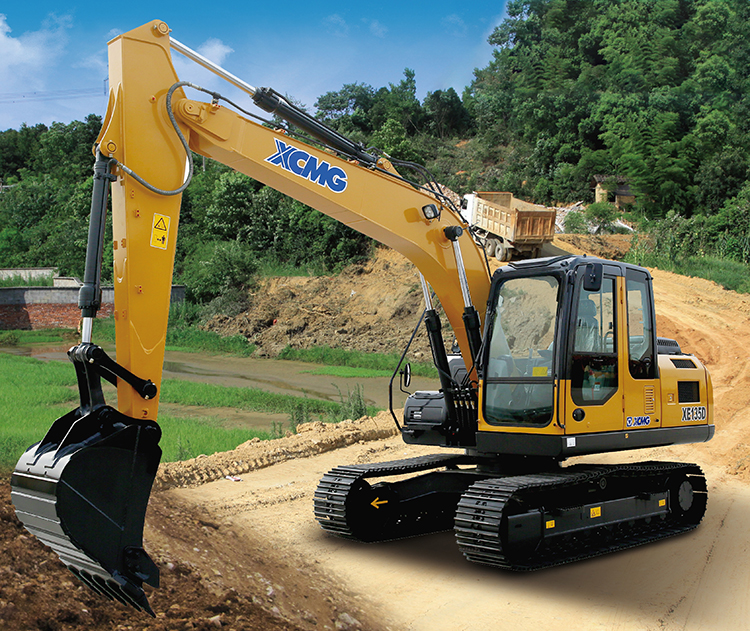

XCMG Official XE135D 13 ton Crawler Excavator.
XCMG XE135D 13 ton Crawler Excavator adopts a new engine jointly developed by XCMG and Cummins.XCMG XE135D 13 ton Crawler Excavator has strong power (the highest power among the same tonnage), high torque at low speed and high fuel economy.XCMG XE135D 13 ton Crawler Excavator can reduce fuel consumption by 7% compared with the previous generation. New generation internationally famous hydraulic elements are of high rated working pressure, high efficiency, precise control, small impact and long service life.
Combined with the new generation XEICS intelligent control system independently developed by XCMG excavator, it can make full use of engine output power, with optimized fuel power curve, it can save up to 7% fuel under the same level of operating efficiency. The main structural components are all optimized by FEA, and after long-term high-intensity operation assessment, the service life is longer.
1. Ecological and economical
* Customized XCMG exclusive engine can meet Euro stage IV Emission Standard.
* Well-known hydraulic components, higher eficiency.
* Minicomputer control technology makes operation more economical.
2.Multiple applications
* Different boom, arm and bucket combinations can provide excellent all-around versatility.
* Multi-functional work tool system can meet various operational requirements including digging, breaking and so on.
3. Comfortable operating experience
* Air conditioner and heater ensure the appropriate temperature.
* Air-suspension seat equipped with electric heating function.
* Integrated control panel and large display screen provide multiple information.
|
Sales model |
Unit |
XE135D |
|
|
Operating weight |
Kg |
13200 |
|
|
Bucket capacity |
m³ |
0.32-0.61 |
|
|
Engine |
Model |
/ |
QSF3.8 |
|
No. of cylinders |
/ |
4 |
|
|
Output power |
kw/rpm |
86/2200 |
|
|
Maximum torque/speed |
N.m/rpm |
470/1300 |
|
|
Displacement |
L |
3.8 |
|
|
Main performance |
Travel speed |
km/h |
5.2/2.9 |
|
Swing speed |
r/min |
11 |
|
|
Gradeability |
° |
35 |
|
|
Ground pressure |
kPa |
40.4 |
|
|
Bucket digging force |
kN |
99.1 |
|
|
Arm digging force |
kN |
68 |
|
|
Maximum traction |
kN |
134 |
|
|
Hydraulic system |
Rated flow of main pump |
L/min |
125.4*2 |
|
Main safety valve pressure |
MPa |
31.4/34.3 |
|
|
Travel system pressure |
MPa |
34.4 |
|
|
Rotary system pressure |
MPa |
25 |
|
|
Pilot system pressure |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
260 |
|
Hydraulic tank capacity |
L |
105 |
|
|
Engine oil capacity |
L |
11 |
|
|
Appearance size |
A Overall length |
mm |
7795 |
|
B Overall width |
mm |
2525 |
|
|
C Overall height |
mm |
2880 |
|
|
D Width of platform |
mm |
2490 |
|
|
E Track length |
mm |
3648 |
|
|
F Overall width of chassis |
mm |
2490 |
|
|
G Track width |
mm |
500 |
|
|
H Length to center of rollers |
mm |
2918 |
|
|
I Track gauge |
mm |
1990 |
|
|
J Counterweight clearance |
mm |
931 |
|
|
K Min. ground clearance |
mm |
466 |
|
|
L Min. tail swing radius |
mm |
2325 |
|
|
M Track height |
mm |
802 |
|
|
Working scope |
A Max. digging height |
mm |
8638 |
|
B Max. dumping height |
mm |
6174 |
|
|
C Max. digging depth |
mm |
5546 |
|
|
D Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
5335 |
|
|
E Max. vertical wall digging depth |
mm |
4698 |
|
|
F Max. digging radius |
mm |
8304 |
|
|
G Min. swing radius |
mm |
2445 |
|
|
Standard configuration |
Length of boom |
mm |
4600 |
|
Length of arm |
mm |
2520 |
|
|
Bucket capacity |
m³ |
0.52 |
|
|
Optional configuration |
Length of boom |
m³ |
/ |
|
Length of arm |
m³ |
2100/3010 |
|
|
Bucket capacity |
m³ |
0.32/0.4/0.61 |
|
