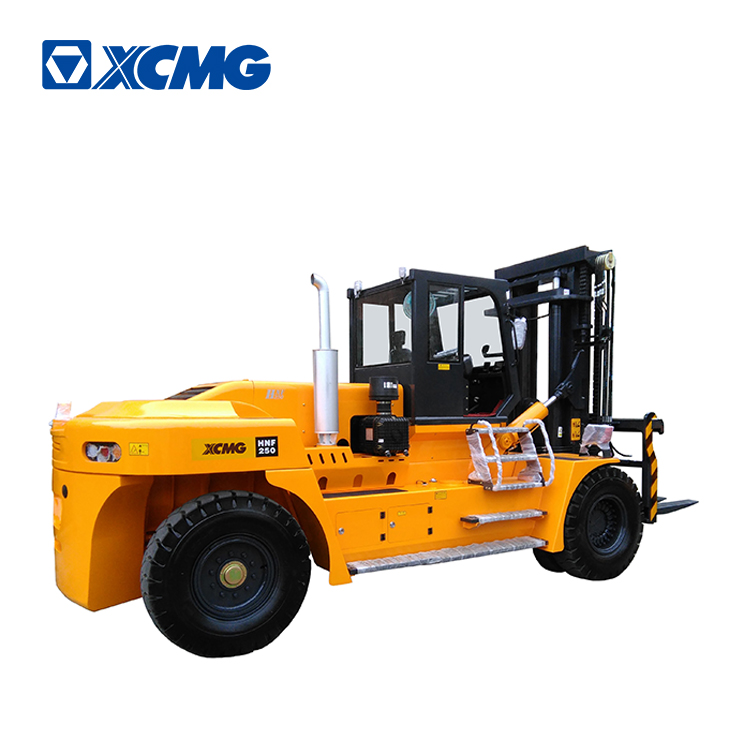

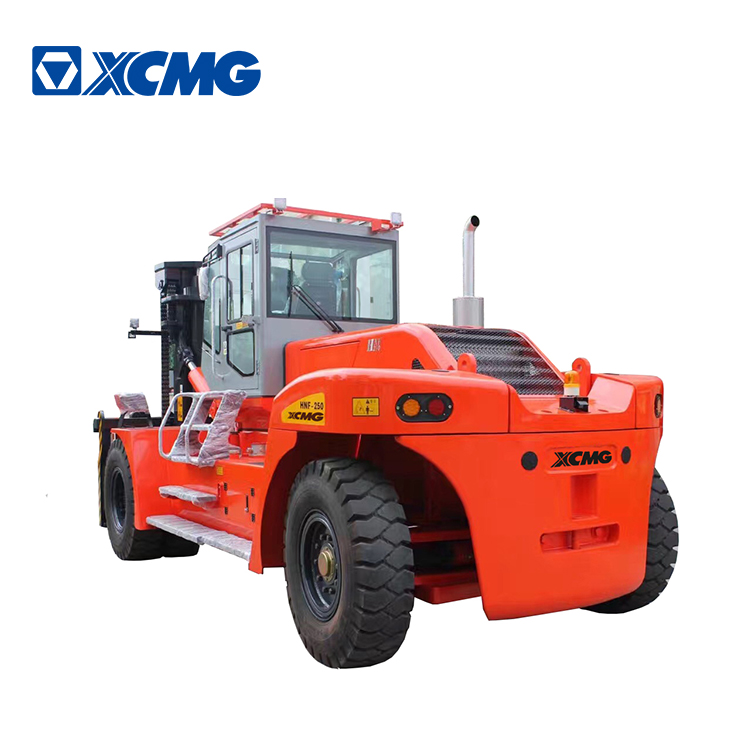

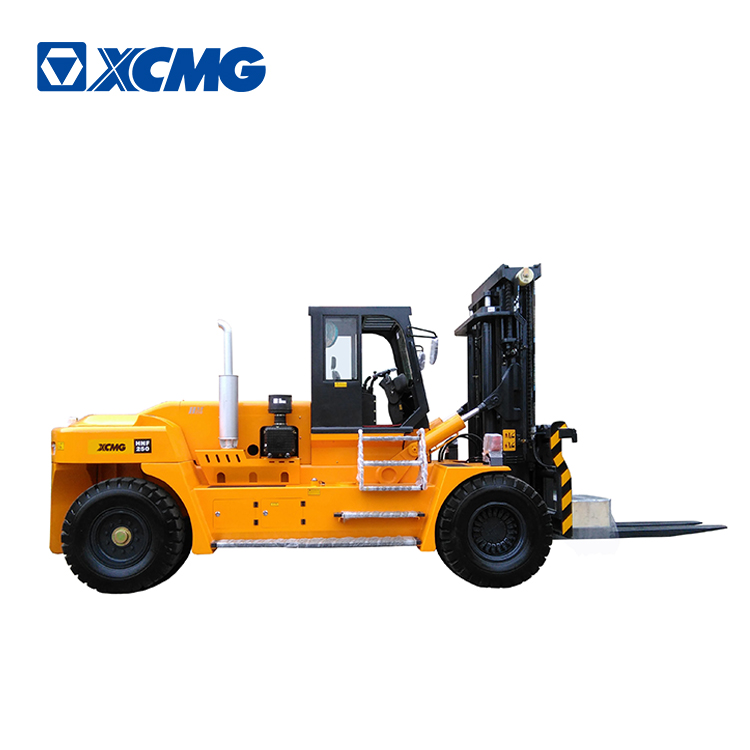

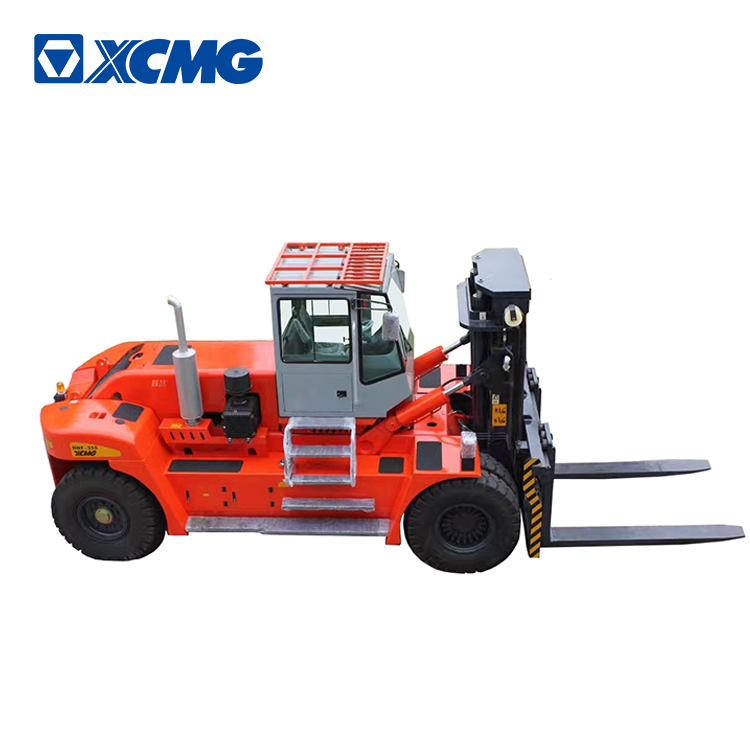

XCMG heavy duty 25 ton forklift HNF-250 with CVT transmission

  • XCMG heavy duty 25 ton forklift HNF-250 with CVT transmission
  • XCMG heavy duty 25 ton forklift HNF-250 with CVT transmission
  • XCMG heavy duty 25 ton forklift HNF-250 with CVT transmission
  • XCMG heavy duty 25 ton forklift HNF-250 with CVT transmission
  • XCMG heavy duty 25 ton forklift HNF-250 with CVT transmission
  • XCMG heavy duty 25 ton forklift HNF-250 with CVT transmission
  • XCMG heavy duty 25 ton forklift HNF-250 with CVT transmission

Share:
XCMG heavy duty 25 ton forklift HNF-250 with CVT transmission
FOB for OEM Reference Price:Get Latest Price
$10000.00-$1000000.00 1 / EA (Min. Order)
Model: HNF-250
Engine: Cummins
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG heavy duty 25 ton forklift HNF-250 with CVT transmission
XCMG heavy duty 25 ton forklift HNF-250 with CVT transmission
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
Summary
  • Fork Width:300mm
  • Fork Length:2440mm
  • Min Lifting Height:3860mm
  • Max Lifting Height:3500mm
  • Rated Loading Capacity:25t
  • Power Source:Diesel
  • Type:heavy duty forklift
  • Model Number:HNF-250
  • Brand Name:XCMG
  • Place of Origin:Xuzhou, Jiangsu,China
Details
  • weight:35000.000kg
  • Condition:New
  • Moving Type:Other
  • Overall Dimensions:9190*3050*3860mm
  • Load Center:1250mm
  • Transmission:Hydraulic
  • Weight:35000kg

XCMG heavy duty 25 ton forklift HNF-250 with CVT transmission.



The HNF-250 first unit of heavy duty 25 ton forklift with CVT transmission in china. The transmission adopts the driving model combined by mechanical and hydraulic, it is a new torque transfer method.



The engine output torque is distributed by mechanical and hydraulic and shifted, torsional transferred, then inter-flow to output shaft.



The transmission controlled the transmission ratio by controlling the ratio of mechanical and hydraulic flow, realizing the continuously adjustable of the gear ratio.



1Comparing with the current widely adopted AT (hydraulic) transmission. It can save 25% fuel and reduce the same percentage emission. And is also more energy-saving comparing with hydrostatic transmission.



2, It has the following features: better starting moment force, stable acceleration, easy to operate, accurate, the gear ratio can be adjusted continuously, comfortable, High transmission efficiency.



3, Comparing with the traditional inching function, it has the advantage zero power lost and the transmission temperature is low.

XCMG heavy duty 25 ton forklift HNF-250 with CVT transmission

Configuration

Model

Unit

HNF-250

Performance

Rated load

25000

Load center

1250

Mast tilt angle (front/rear)

º

6/12

Overall dimensions

Length with fork

mm

9190

Width

mm

3050

Height

mm

3860

Mast lifting height

mm

3500

Fork size (L*W*H)

mm

2440X300X110

Min. turning radius

mm

6700

Max. travel speed (with load)

Km/h

24

Lifting speed (with load)

mm/s

260

Gradeability (with load)

%

20

Weight

Kg

35000

Tyre

Front

4X14.00-24/28PR

Rear

2X14.00-24/28PR

Wheel tread

Front

mm

2200

Rear

mm

2390

Wheelbase

mm

4400

Min. ground clearance

mm

300

Engine

Model

CUNNINS QSC8.3-C240

Rated power/rotate speed

KW/r.pm

179/2200

No. of cylinder

6
