XCMG Official QAY200 All Terrain Crane for sale
Summary
- Model Number:QAY200
- Brand Name:XCMG
- Place of Origin:China
- Certification:ISO9001
Specifications
- weight:71000.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
QAY200 All Terrain Crane
1、Power and traveling performance, benz diesel engine, 16-speed ZF automatic gearbox.
2、Suspension system. Functions of automatic leveling, suspension lifting, elastic/rigid state switch-over.
3、Self-assembled technology
counterweight researched & developed by ourselves, improves 30% the
lifting capacity of medium-length boom effectively. Whole assembling
process is finished by itself, no need for other equipment convenient
and quick. Completely new assembling method is used. Only 30 minutes is
enough for assembly, the working efficiency is improved greatly.
4、Super lifting performance. Fast
automatically telescoping system improves operating efficiency. High
strength wear sliders are available.
5、Driver’s
cab. Air cushioned seat, steering wheel adjustable in height and
inclination. Ergonomic location of operating elements and indicators
ensures simplification and comfort during continuous operation.

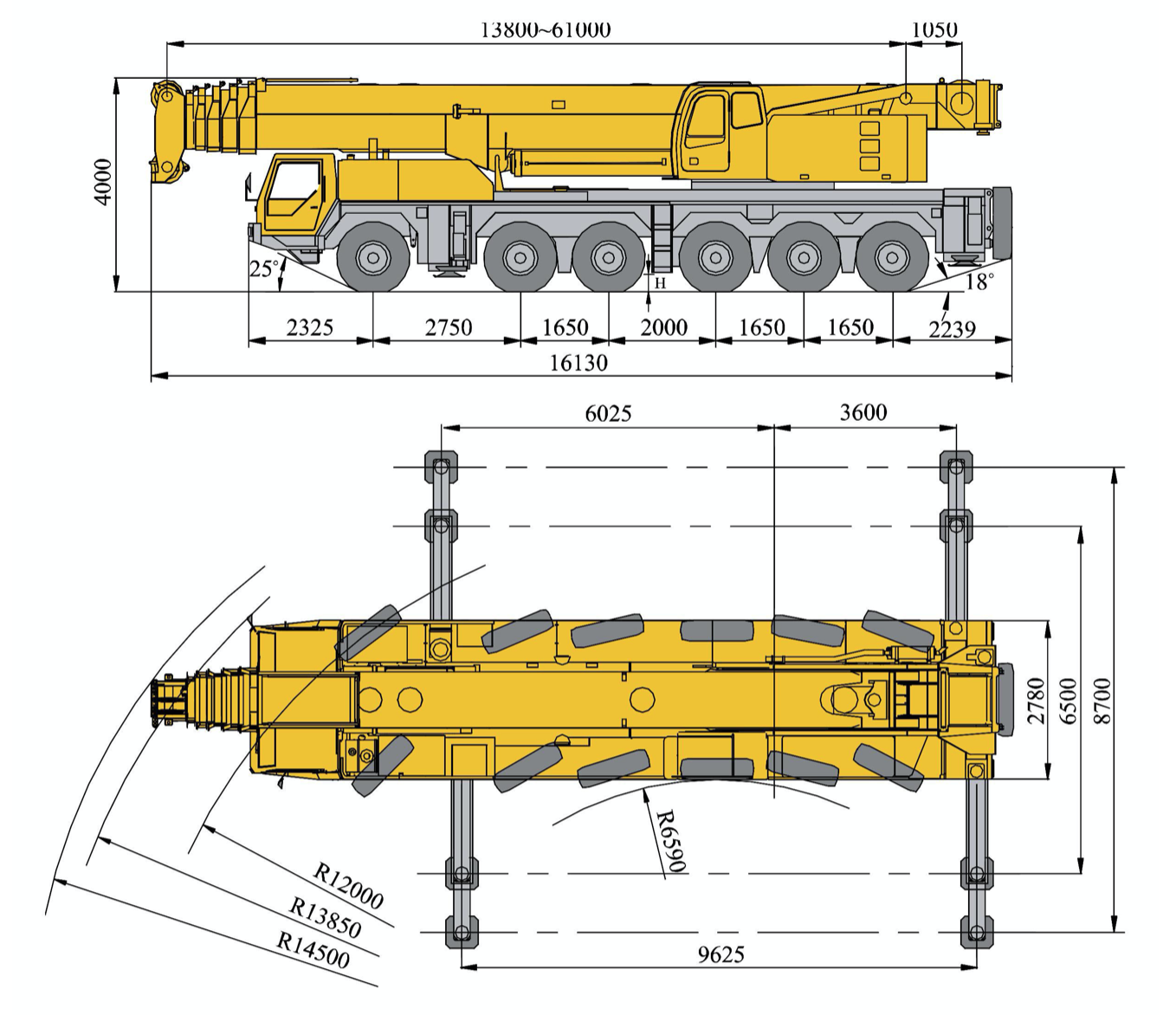

Dimensions
H | |
385/95 R25 （14.00 R25） | 278mm |
XCMG—QAY200
Weight | |||||||||||||
Axle | 1 | 2 | 3 | 4 | 5 | 6 | Total weight | ||||||
t | 11.75 | 11.75 | 11.85 | 11.85 | 11.9 | 11.9 | 71 | ||||||
Hook | No.of lines | Weight kg | Remarks | ||||||||||
130t | 12 | 1600 | Double hook | ||||||||||
65t | 6 | 1000 | Single hook | ||||||||||
30t | 3 | 500 | Single hook | ||||||||||
Working speeds | |||||||||||||
Km/h | |||||||||||||
385/95 R 25 (14.00 R 25) | 2.1~71 | 48% | |||||||||||
Drive | Working speed | Max.single line pull | Rope diameter/length | ||||||||||
0-120 m/min, no load, 4th layer, | 148kN | 26 mm/280 m | |||||||||||
0-110 m/min, no load, 4th layer | 122kN | 26 mm/210 m | |||||||||||
0-1.9 r/min | |||||||||||||
Approx. 75s for boom elevation from -1.5° to 80° | |||||||||||||
Approx. 100s for boom extension from 9.7m to 31m | |||||||||||||
XCMG——QAY200 | |||||||||||||
