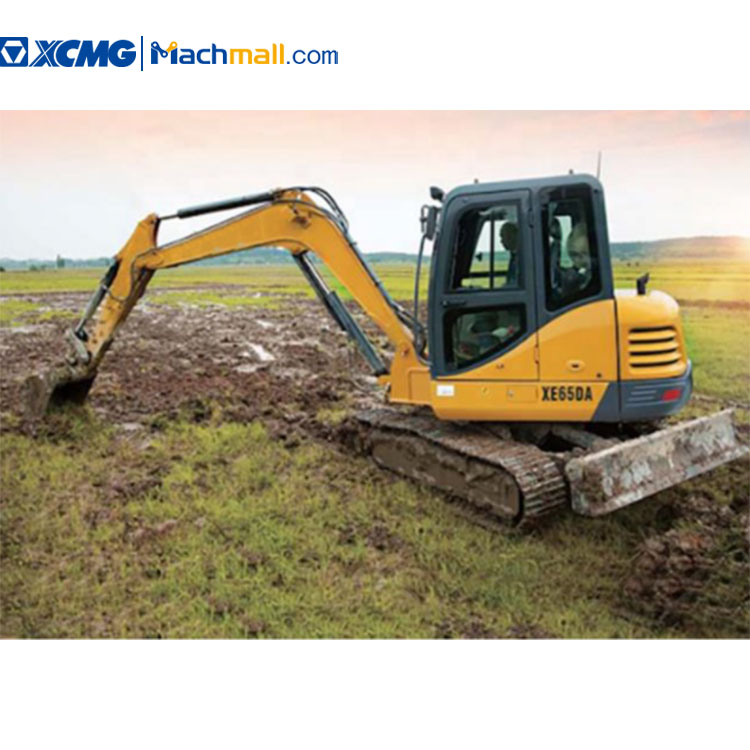

XCMG Small Digger mini excavator 6.5 ton excavator XE65DA
XE65DA
Specs & Compare
Details
Select 3 models for comparison
Rated Speed
Max Digging Radius
Machine Weight
Maximum Digging Depth
Maximum Digging Height
Bucket capacity
Operating Weight
Model Number
Brand Name
Place of Origin
Engineering & Construction Machinery
XE65DA
4.2/2.4 km/h
6130mm
6150kg
--
5630mm
0.25m³
6.5T
XE65DA
XCMG
China
+ Add a Product
+ Add a Product
Summary
- Rated Speed:4.2/2.4 km/h
- Max Digging Radius:6130mm
- Machine Weight:6150kg
- Maximum Digging Height:5630mm
- Bucket capacity:0.25m³
- Operating Weight:6.5T
- Model Number:XE65DA
- Brand Name:XCMG
- Place of Origin:China
Specifications
- weight:6150.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Top Brand crawler excavator XE65DA can not only quickly dig trenches, but also can replace the crushing hammer, crushing work.crawler excavator XE65DA can be replaced with different appliances to adapt to different conditions, saving manpower and equipment costs.
Selling point:
1.Enlarging and widening the chassis, the solid chassis makes the excavation more stable and the lifting operation easier.
2.Bulldozing shovel with standard hydraulic lock, long time operation can not drop the shovel, high safety.
3.Higher efficiency and large capacity bucket, new optimization of bucket shape, more efficient unloading.
| Sales model | Unit | XE65DA | |
| Operating weight | Kg | 6150 | |
| Bucket capacity | m³ | 0.25 | |
| Engine | Model | / | 4TNV94L |
| No. of cylinders | / | 4 | |
| Rated power | kw/rpm | 36.2/2100 | |
| Displacement | L | 3.054 | |
| Main performance | Travel speed | km/h | 4.2/2.4 |
| Swing speed | r/min | 10 | |
| Gradeability | ° | 35 | |
| Ground pressure | kPa | 32.1 | |
| Bucket digging force | kN | 48.3 | |
| Arm digging force | kN | 32.5 | |
| Maximum tractive force | kN | 52 | |
| Hydraulic system | Rated flow of main pump | L/min | 160 |
| Main safety valve pressure | MPa | 24.5 | |
| Hydraulic tank capacity | L | 85 | |
| Engine oil capacity | L | 12 | |
| Appearance size | A Overall length | mm | 5860 |
| B Overall width | mm | 2040 | |
| C Overall height | mm | 2585 | |
| D Width of platform | mm | 1780 | |
| F Overall width of chassis | mm | 2040 | |
| G Track width | mm | 400 | |
| I Track gauge | mm | 1600 | |
| J Counterweight clearance | mm | 700 | |
| K Min. ground clearance | mm | 385 | |
| Working scope | A Max. digging height | mm | 5630 |
| B Max. dumping height | mm | 3945 | |
| C Max. digging depth | mm | 3830 | |
| F Max. digging radius | mm | 6130 | |
| G Min. swing radius | mm | 1670 |
Company Information
3 Global Call Centers
134 Spare Parts Service Centers
Over 300 Dealers
Over 2,000 Service Outlets
XCMG is the largest manufacturer of construction machinery in China, and also a multinational company with global influence,
which is devoted to providing global customers with complete solutions and top-notch service for construction machinery.
XCMG have established a global R&D system with a total of six centers across China, the US, Germany, Brazil and India, with China national technology center at its core. In addition to a number of manufacturing bases across China, the US, Germany, the Netherlands, Poland, Austria, Brazil, India, and Uzbekistan, we also have three equipment brands (XCMG, Schwing, and CHIMACH), and several component brands including FT, AMCA, and Hirschmann.
XCMG have established a global R&D system with a total of six centers across China, the US, Germany, Brazil and India, with China national technology center at its core. In addition to a number of manufacturing bases across China, the US, Germany, the Netherlands, Poland, Austria, Brazil, India, and Uzbekistan, we also have three equipment brands (XCMG, Schwing, and CHIMACH), and several component brands including FT, AMCA, and Hirschmann.
300
Overseas Dealer
30
Overseas Company
2000
Overseas Service & Parts Center
15
Overseas Manufacturing Bases & KD Factory
40
Overseas Office
6
R&D Center
Our Certificates
Certificate of
TÜV Rheinland
Certificate of
TÜV NORD
EC
Conformity Certificate
EAC
Conformity Certificate
Certificate of
TÜV SÜD America
GSO
Conformity Certificate
Client Visit
XCMG New Product Promotion and
User Experience Day Held in Brazil.
User Experience Day Held in Brazil.
Fiji's Prime Minister Josaia Bainimarama
operated in person XCMG's products
and spoke highly of it.
operated in person XCMG's products
and spoke highly of it.
Algerian Customers Favor
XCMG's Small Machinery
XCMG's Small Machinery
XCMG shows uo at 10th CCFS
President Morales and Ambassador Shen
conduct "Fire Cupping Baptism",
an Indian tradition, to launch the excavators.
conduct "Fire Cupping Baptism",
an Indian tradition, to launch the excavators.
XZ5000 Horizontal Directional Driller
with the Largest Tonnage of
China "Married" to Malaysia
with the Largest Tonnage of
China "Married" to Malaysia
Office of the Import and Export Company
of XCMG in Peru Held a Successful Footbal
Match
of XCMG in Peru Held a Successful Footbal
Match
Snapshot of XCMG's delegation presenting
gifts to the municipal government of Guarulhos
City, Stateof Sao Paulo.
gifts to the municipal government of Guarulhos
City, Stateof Sao Paulo.
African Clients Give Thumps-up
to XCMG
to XCMG
President of the Plan & Budget Committee
of Iranian Ministry of Energy Leads a Team
to Visit XCMG
of Iranian Ministry of Energy Leads a Team
to Visit XCMG
Seminar on Business Officials and Entrepreneurs
from Developing Countries held in XCMG
from Developing Countries held in XCMG
The Seminar Participants Visit XCMG
Hosting Machinery Sector
Hosting Machinery Sector
XCMG on Exhibition
Production Environment
Our Services
Global Service Team
Overseas Spare Parts Centers
Overseas Service Training
Packaging & Shipping
Successful Overseas Projects
FAQ
1:Are you original manufacture?
A:Yes,we XCMG are on official leading manufacture in construction machinery in China and we have the whole
series products you need.
series products you need.
2:What kind terms of payment can be accepted?
A:Normally we can work on T/T term or L/C term.
3:Which incoterms 2010 terms can we work?
A:Normally we work on FOB, CFR, CIF.
4:What about delivery time?
A:7-30 days after receiving the deposit
5:What about the warranty time?
A:12 months after shipment or 2000 working hours
6:What about the Minimum Order Quantity?
A:The MOQ is 1 pcs.
