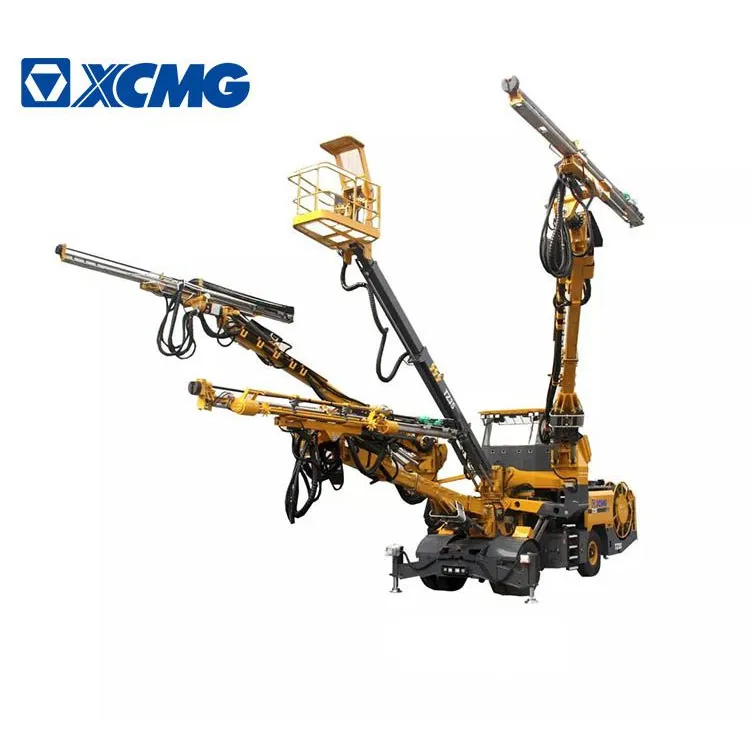

XCMG Official TZ3S Computer-aided three-boom hydraulic pilot drill jambo
TZ3S
Specs & Compare
Details
Select 3 models for comparison
Transport Dimension(L*W*H)
Weight
Model Number
Brand Name
Place of Origin
Certification
Engineering & Construction Machinery
TZ3S
17240×2926×3278 mm(opened)/17240×2926×3656 mm(closed)
50000 kg
TZ3S
XCMG
China
CE/ISO9001
+ Add a Product
+ Add a Product
Summary
- Transport Dimension(L*W*H):17240×2926×3278 mm(opened)/17240×2926×3656 mm(closed)
- Weight:50000 kg
- Model Number: TZ3S
- Brand Name:XCMG
- Place of Origin:China
- Certification:CE/ISO9001
Specifications
- weight:50000.000kg
- Condition:New
- Moving Type:Wheel
- Maximum operating cover area:186.5 m²
- Maximum operating height:13110 mm
- Maximum operating width:16527 mm
- Drill boom extended length:1602 mm
- Drill boom lifting angle:(69/-43)°
- Tilt angle for propeller:±45°
- Propeller tilt angle:360°
- Propeller compensation length:1800 mm
- Maximum propulsive force:22.5 kN
- Drill hole depth:5140/6015mm
- Impact power of gadder:18.8/31 kW
- Impact frequency of gadder:47/(63-72)Hz
- Swing torque of gadder:780/671N·m
- Diameter for dill hole:Φ43—Φ140 mm
- Water flushing pressure:10—15 bar
- Gas lubrication pressure:2—4 bar
- Lifting height for work service platform:12000 mm
- Swing width for work service platform:15500 mm
- Rated load for work service platform:400 kg
- Lifting height of cab:1200 mm
- Lifting height of cab roof:700 mm
- Total installed power:237/282 kW
- External power supply:380/50 V/Hz
- Maximum traveling speed:20 km/h
- Maximum gradability:20°
- Engine power:186 kW
- Transport dimension:17240×2926×3655 mm
- Curb weight:50000 kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Intelligent and efficient drilling equipment：
1. Five types of propellers and two drilling machine configurations (18KW and 33KW) realize deeper and faster drilling.
2. The multi-stage anti-seizure design reduces the drilling tool consumption by 10%.
3. The drilling pipe extension assisting system easily realizes the pipe-shed drilling, grouting-hole drilling, and advance geological exploration.
4. The enclosed cab with heating and air conditioning system and noise reduction design guarantees the comfortable and easy operations.
5. The intelligent computer guiding realizes accurate positioning of drilling boom and higher arrangement efficiency of holes.
| Item | Unit | Parameter |
| Maximum operation cover area | ㎡ | 186.5 |
| Maximum operation height | mm | 13110 |
| Maximum operation width | mm | 16527 |
| Drill boom extended length | mm | 1602 |
| Drill boom lifting angle | ° | 69/-43 |
| Tit angle for propeller | ° | ±45 |
| Propeller tit angle | ° | 360 |
| Propeller compensation length | mm | 1800 |
| Maximum propulsive force | kN | 22.5 |
| Drill hole depth | mm | 5140/6015 |
| Impact power of gadder | kW | 18.8/31 |
| Impact frequency of gadder | Hz | 47/(63-72) |
| Swing torque of gadder | N·m | 780/671 |
| Diameter for dill hole | mm | φ43-φ140 |
| Water flushing pressure | bar | October 15th |
| Gas lubrication pressure | bar | February 4th |
| Lifting height for working service platform | mm | 12000 |
| Swing width for working service platform | mm | 15500 |
| Rated load for working service platform | kg | 400 |
| Lifting height of cab | mm | 1200 |
| Lifting height of cab roof | mm | 700 |
| Total installed power | kW | 237/282 |
| External power supply | V/Hz | 380/50 |
| Maximum traveling speed | km/h | 20 |
| Maximum gradability | ° | 20 |
| Engine power | kW | 186 |
| Transport dimension（L×W×H） | mm | 17240*2926*3278 |
| Transport dimension（L×W×H） | mm | 17240*2926*3655 |
| Curb weight | kg | 50000 |
