XCMG Official XCA300U All Terrain Crane for sale
Summary
- Model Number:XCA300U
- Brand Name:XCMG
- Place of Origin:China
- Certification:ISO9001
Specifications
- weight:73400.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCA300U All Terrain Crane
1、The
lifting capacity takes the lead in the industry with strong power, the 6-axle all terrain crane with high intelligent level.
2、Dynamically
choosing different braking modes, which contributes to precise control
on power performance and avoids invalid braking control or insufficient
braking force, and can shorten emergency braking distance, effectively
avoid traffic accident, reduce the abrasion of braking system and
increase the service life3、Comfort: Improved designs, such as imperial man-machine interactive interface, US principle braking system, electronic rearview mirror and reserved ports for attaching boom dolly, significantly satisfy the operating habits of North Americans.4、Safety: FSG outrigger length detection system, outrigger pressure detection system, and several warning functions, such as braking disk abrasion warning, superstructure low slewing pressure warning (with DOLLY attached) are available, well ensuring the traveling safety.
5、The leg length and length sensor, leg pressure sensor and rotary angle sensor are equipped to collect the crane's attitude accurately, and display information to the user automatically with the help of vehicle mounted display.

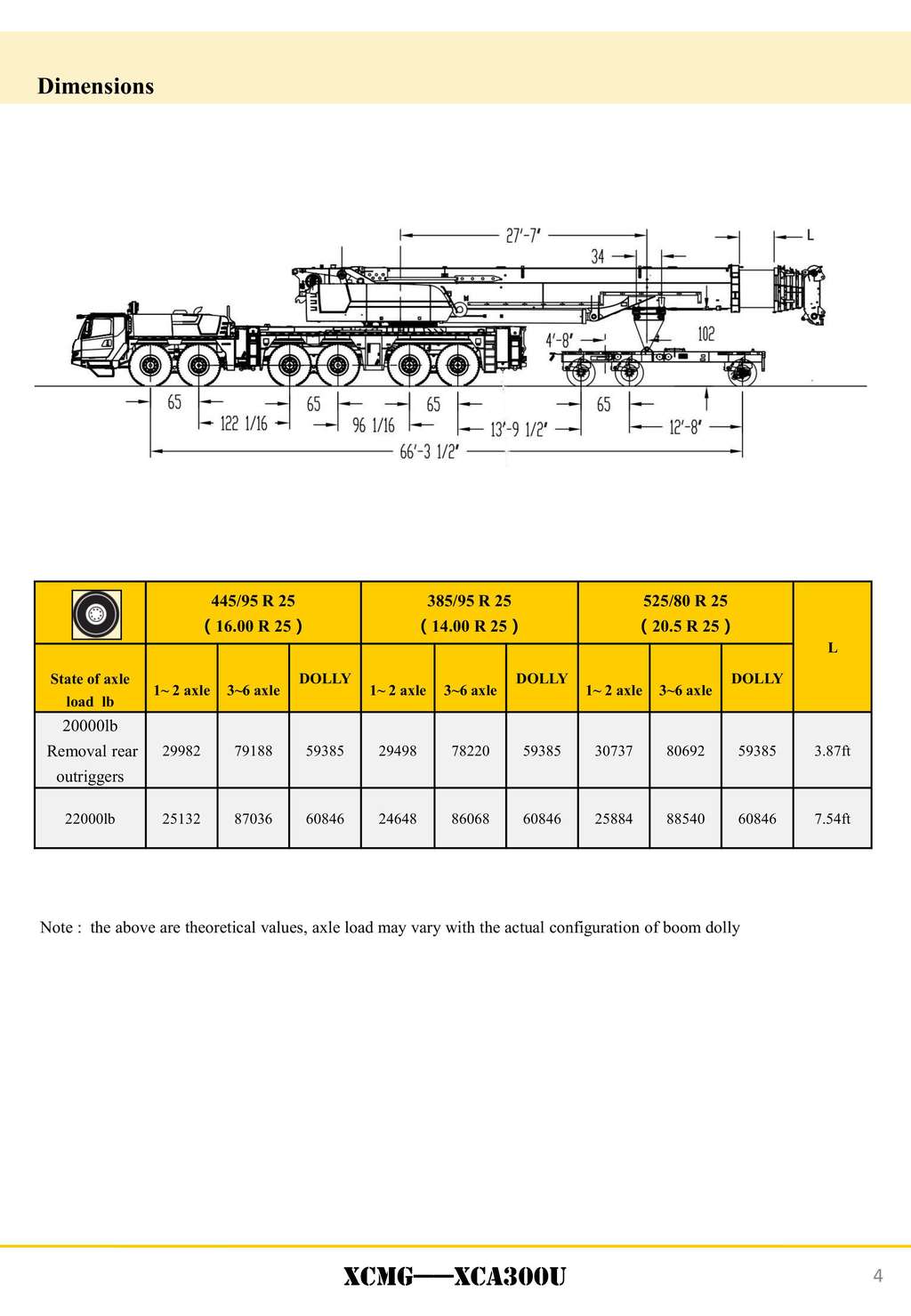

weight | |||||||||||||
Axles | 1 | 2 | 3 | 4 | 5 | 6 | Total weight | ||||||
lb | 27595 | 27595 | 26639 | 26639 | 26639 | 26639 | 161820 | ||||||
Hook | No.of lines | Weight lb | Remarks | ||||||||||
154USt | 14 | 4259.4 | Double hook,Optional | ||||||||||
121USt | 11 | 3192.3 | Double hook,Standard | ||||||||||
88USt | 7 | 4045.5 | Double hook,Standard | ||||||||||
33USt | 3 | 3176.9 | Single hook, Standard | ||||||||||
13USt | 1 | 1009.7 | Single hook, Optional | ||||||||||
Working speeds | |||||||||||||
mph | |||||||||||||
445/95 R 25 (16.00 R 25) | 1.24~55.9 | 52% | |||||||||||
385/95 R 25 (14.00 R 25) | 1.24~51.5 | 60% | |||||||||||
525/80 R 25 (20.5 R 25) | 1.24~55.9 | 52% | |||||||||||
Drive | Working speed | Max.single line pull | Rope diameter/length | ||||||||||
0-416.7fpm,single line,5th layer,no load | 24691.9lb | 0.9 in/1213.9 ft | |||||||||||
0-416.7 fmp,single line,5th layer,no load | 24691.9lb | 0.9 in/1213.9 ft | |||||||||||
0-1.2 r/min | |||||||||||||
Approx. 85s for boom elevation from -1° to 83° | |||||||||||||
Approx. 900s for boom extension from 49.2ft to 262.5ft | |||||||||||||
XCMG——XCA300U | |||||||||||||
Technical specifications | |||
Chassis | |||
Fram | Designed and manufactured by XCMG, with all covered walking surface, made of import ed high strength steel with inverted trapezoid cross section. | Brakes | Service brake: double-circuit air pressure brake, acting on all wheels. Parking brake: spring energy brake, acting on wheels of 2-6 axles. Auxiliary brake: engine brake, transmission retarded brake. |
Outrigger | Variable pump driven by chassis engine, used for hoisting, elevating, telescoping and slewing operation. Imported electro-hydraulic direction valve, matching perfectly stably. Air-cooled hydraulic oil cooler, which may effectively reduce the temperature of oil in the system, suction filter and return filter. | Steering | All axles steering, advanced electro-hydraulic proportional steering control is suitable for various demands of working conditions, some steering modes followed may be realized. |
Engine | OM473LA.E4-2, in-line six-cylinder water- cooled EFI diesel engine, manufactured by Daimler, rated power 576.6hp /1700 rpm, max. torque 2028.3 lb-ft / 1300 rpm, EPA Tier4f / CARB Tier4f / EU Stage4 emission standards. Fuel tank capacity : 118.9gal. | Driver's cab | New type steel structure full dimension cab with suspension connecting structure, and there is shock absorb fitted at the rear of the cab, equipped with adjustable seats, safety glass of electrically operated door window lift , electric-adjustable mirrors, steering wheel adjustable in height and angle, reverse displayer, large screen liquid crystal display. Combined control panel reasonably arranged ergonomically designed concept. Heater and air conditioner are standard. |
Hydraulic system | The Twin-variable variable displacement pump is connected to the engine through PTO for controlling the movements of outriggers, steering, suspension and heat dissipation. | Electrical System | DC 24 volts is in series with two 12-volt battery packs. |
Superstructure | |||
Gearbox | Electric controlled transmission with hydrau lic torque converter imported from Allision America, equipped with retarded brake, with 6 forward gears and 1 reverse gears available | Frame | Designed and manufactured by XCMG, made of high-strength steel. |
TYansfercase | Electric controlled transmission with hydrau lic torque converter imported from Allision America, equipped with retarded brake, with 6 forward gears and 1 reverse gears available | Superstructureengine | OM936LA.E4/3 , in-line six-cylinder water- cooled EFI diesel engine, manufactured by Daimler, rated power 281.6hp/ 2200 rpm, max. torque 848.2lb-ft / 1200 ~ 1600 rpm, EPA Tier4f / EU Stage4 emission standards. Fuel tank capacity : 76.6gal. |
Alxes | High strength axle with reliable performance, imported originally from KESSLER Germany, equipped with pneumatically controlled drum brake. The 4th axle is fitted an axle-disconn ecting device. 1st, 3rd and 5th alxes driving is applied during normal road travel, and 1st, 3rd, 4th and 5th alxes driving on complex road conditions. | Hydraulic system | Variable pump driven by superstructure engine, used for hoisting, elevating, telescop ing and slewing operation. Imported electro- hydraulic direction valve, matching perfectly stably. Large power Air-cooled hydraulic oil cooler, which may effectively reduce the temperature of oil in the system. |
Suspension | Hydro-pneumatic suspension is adopted for all axles, providing good shock absorbing effect. Functions of automatic leveling, susp ension lifting, elastic/rigid state switch-over, etc. are available. Stroke of suspension cylinder: -5.1in~+5.1in. | Operating mode | Variable continuous speed regulation. Electric proportional pilot control of all operation of hydraulic pump and proportional valve to control the crane by 2 control handle. |
Tires | 12 tires, each axle is equipped with single tire, manufactured by Michelin, large bearing capacity. Tire specifications: 445/95R25(16.00R25). | Main winch system | Hydraulic controlled speed regulation, with groove drum equipped, driven by hydraulic variable motor through planetary gear reducer, and with built-in constant closed brake, equi pped with imported wire rope and pouch socket. |
Brakes | Service brake: double-circuit air pressure brake, acting on all wheels. Parking brake: spring energy brake, acting on wheels of 2-6 axles. Auxiliary brake: engine brake, transmission retarded brake. | ||
XCMG——XCA300U | |||
Technical specifications | |||
Additional equipment | |||
Slewing system | Single row four-point ball contact external gearing slewing ring and right-arranged double slewing mechanism, driven by a hydraulic motor, with a planetary gear reducer and a normally closed brake equipped, for 360° continuoxis rotation. Power control and free slewing function as well as stepless speed regulation are available. | Auxiliary winch system | Hydraulic controlled speed regulation, with groove drum equipped, driven by hydraulic variable motor through planetary gear reducer, and with built-in constant closed brake, equi pped with imported wire rope and pouch socket. |
Operator's cab | Large arc glass, swing-out door, adjustable seat, equipped with safety glass and top pro tective rails, LMI, controller box, electric wind shield wipers, engine accelerator pedal, engine start switch and windshield visor, etc. are also available, heater and air conditioner are standard. | Jib | Lattice welding structure, with 0° , 20° and 40° jib offset angles available. Jib length: 19.7ft〜118.1ft Length of wind power jib: 26.2ft. |
Safety devices | Hydraulic balance valve, Hydraulic relief valve, Double-way hydraulic valve, LMI. Spring centering system for control levers. Lowering limiter for preventing wire rope from over-releasing. Anti-two block at boom head for preventing wire rope from over winding. Anemometer fbr measuring the wind velocity. | Single top | Installed at the boom top, used for single line operation. Its lifting performance is the same as that fbr boom, but the max. lifting load could not exceed 24691.91b. |
LMI | The safety protection device is installed in operator's cab. When actual moment approa ches overload value, it may send out visual alarm, and automatically stop dangerous movements before overloading. Overload memory function (black box) and fault self diagnosis function are available. | Super-lifting | Y-type super lifting device may be installed at the end of the basic boom. The design of two parts of line super lifting wire rope enables the pulling force of the super lifting double i叫roving. With the super lifting device, under longer boom length, the boom deflection may be reduced by 20%-30%, and the lifting performance be doubled. |
Combined counterweight | Total weight is 22046lib. 6 counterweight combinations of 01b, 440931b, 881851b, 1322771b, 1763691b and 2204611b are available. | Tires | 12 tires, each axle is equipped with single tire, manufactured by Michelin, large bearing capacity. Tire specifications:385/95R25 ( 14.00R25 ) or 525/80R25 ( 20.5R25 ). |
Electrical System | DC 24 volts is in series with two 12-volt battery packs.
| Brake | Eddy-current retarder brake, which are safe and reliable, and will prolong the service life of brake lining. |
Boom system | |||
Boom | 7-section, U-shape cross section, welding str ucture. Single-cylinder pinning interlocked telescoping system. One double-acting cylind er with safe valve assemblies used for control of the telescoping movement of all booms, 46%, 92% and 100% telescoping pattern are available. Boom length:49.2ft ~ 262.5ft. | Light jib | Lattice welding structure, with 0°, 20° and 40° jib offset angles available. Light Jib length: 37.4ft ~ 129.3ft. |
Suspension | The front and rear suspensions all adopt multi-disc leaf springs, with features of large bearing capacity, strong universality and easy maintenance. | Product parts details As mentioned above, please refer to the product quotation for specific parts. | |
XCMG——XCA300U | |||
