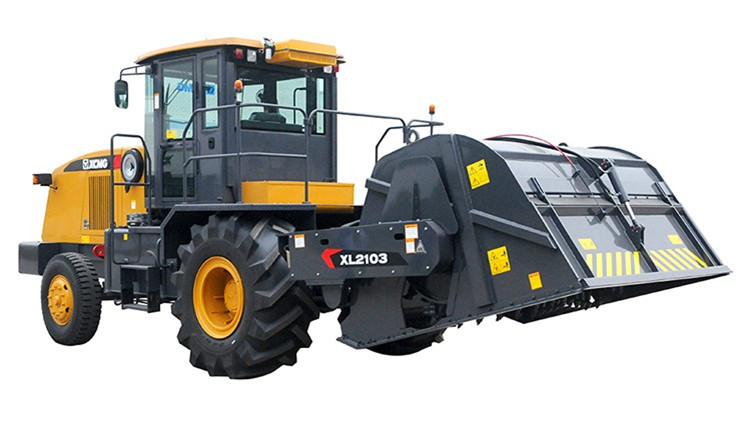

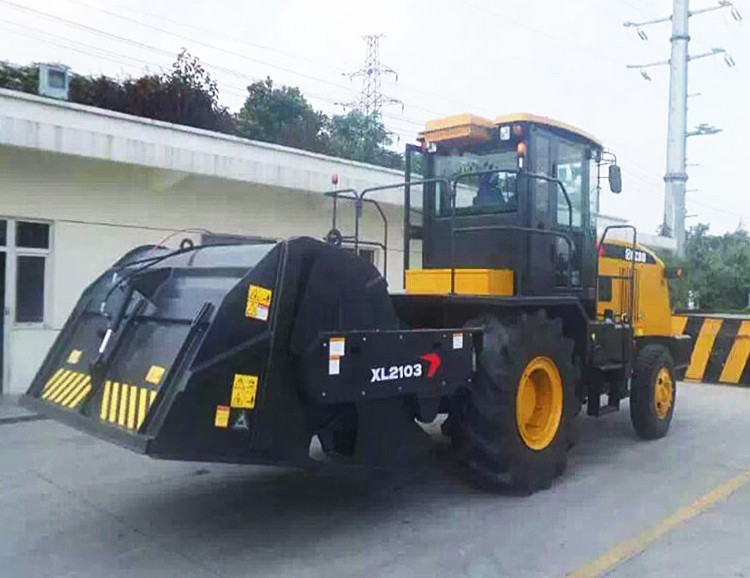

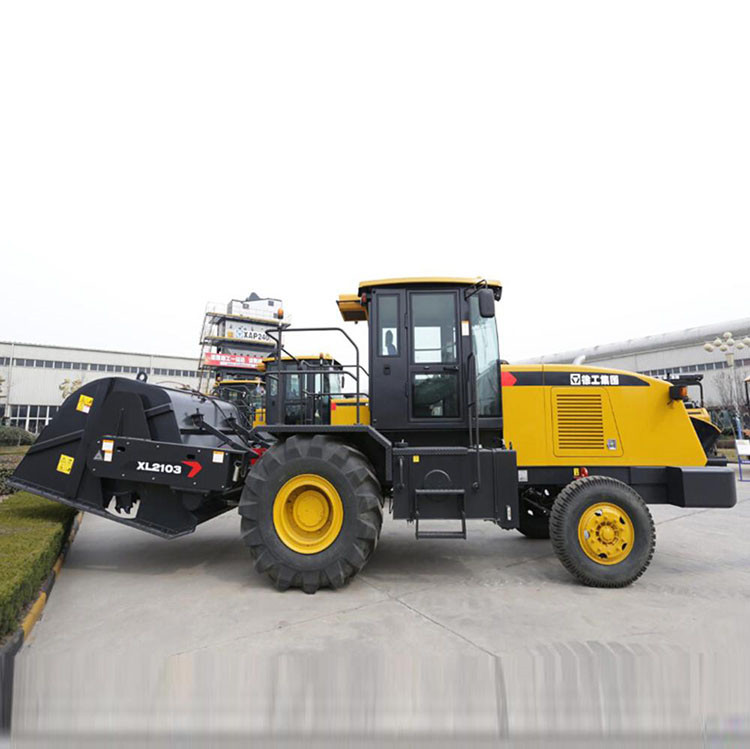

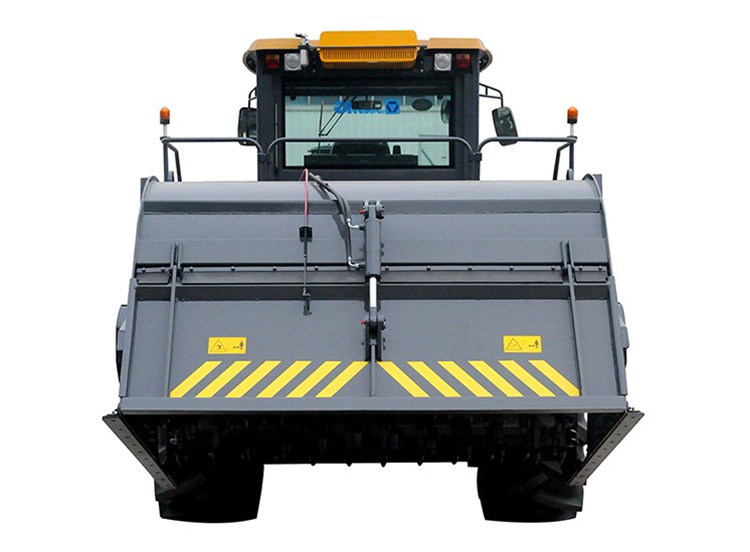

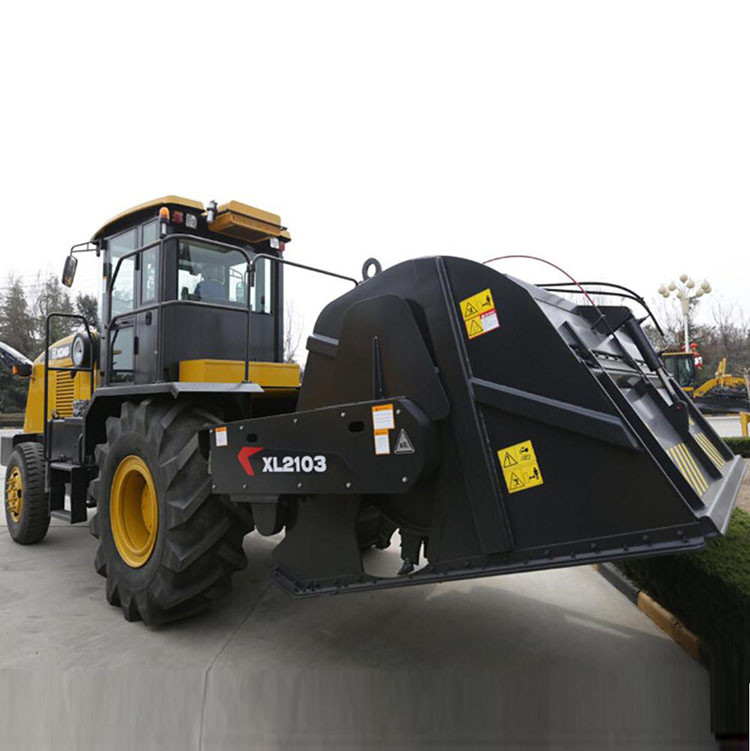

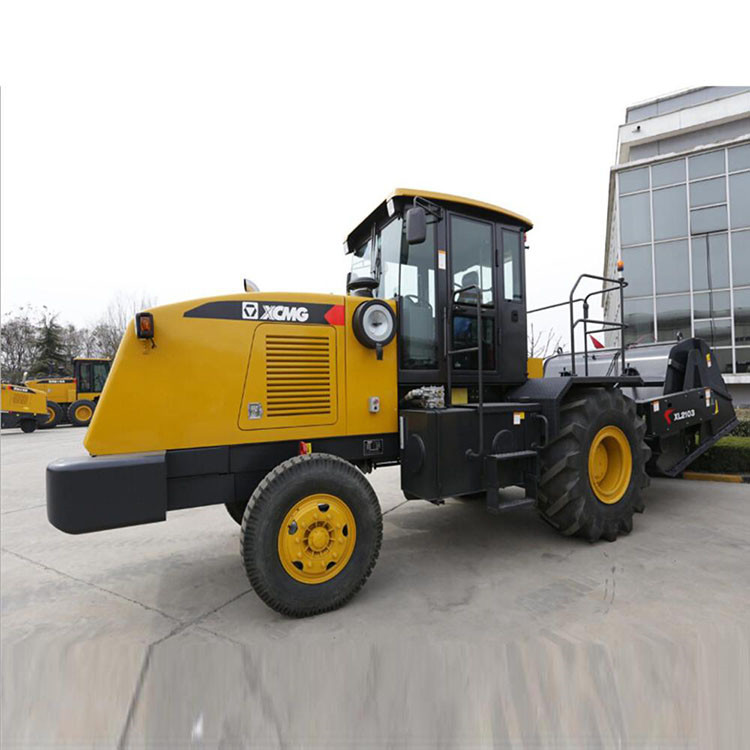

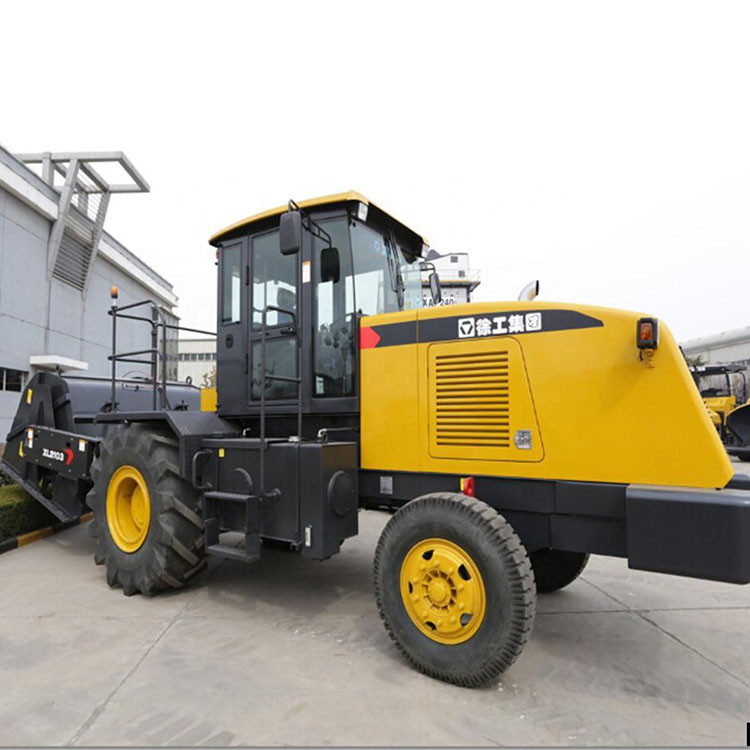

XCMG Soil Stabilizer Machine China Stabilizing Soil Mixing Stabilization Equipment XL2103 For Sale

  • XCMG Soil Stabilizer Machine China Stabilizing Soil Mixing Stabilization Equipment XL2103 For Sale
  • XCMG Soil Stabilizer Machine China Stabilizing Soil Mixing Stabilization Equipment XL2103 For Sale
  • XCMG Soil Stabilizer Machine China Stabilizing Soil Mixing Stabilization Equipment XL2103 For Sale
  • XCMG Soil Stabilizer Machine China Stabilizing Soil Mixing Stabilization Equipment XL2103 For Sale
  • XCMG Soil Stabilizer Machine China Stabilizing Soil Mixing Stabilization Equipment XL2103 For Sale
  • XCMG Soil Stabilizer Machine China Stabilizing Soil Mixing Stabilization Equipment XL2103 For Sale
  • XCMG Soil Stabilizer Machine China Stabilizing Soil Mixing Stabilization Equipment XL2103 For Sale

Share:
XCMG Soil Stabilizer Machine China Stabilizing Soil Mixing Stabilization Equipment XL2103 For Sale
FOB for Road Mach Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Model: XL2103
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG Soil Stabilizer Machine China Stabilizing Soil Mixing Stabilization Equipment XL2103 For Sale
XCMG Soil Stabilizer Machine China Stabilizing Soil Mixing Stabilization Equipment XL2103 For Sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
Summary
  • Weight:15600kg
  • Dimension(L*W*H):8740x2765x3450mm
  • Power(W):294kW
  • Model Number:XL2103
  • Brand Name:XCMG
  • Place of Origin: Jiangsu, China
Specifications
  • weight:15600.000kg
  • Condition:New
  • Moving Type:Other

XCMG Soil Stabilizer Machine China Stabilizing Soil Mixing Stabilization Equipment XL2103 For Sale

XCMG Soil Stabilizer Machine China Stabilizing Soil Mixing Stabilization Equipment XL2103 For Sale.



The soil stabilizer applies to site mixing operation of stabilized oil in substratum and bottom stratum during highway, city road, square, wharf and parking lot engineering etc.It allows also mix-in-place of differentproportion of lime ash soil,lime fly ash stabilized aggregate ,stabilized gravel, etc.



Performance Characteristics:



* The machine adopts WP12 series electronic fuel injection engine, this engine has low emission and noise; the engine has some advanced functions like online display, diagnosis, and fault warning.



* Drive system adopts engine +transfer case, the transfer case connects the rotor pump, walking pump and auxiliary pump.



* Work rotor is driven by high speed motor and speed reducer, work rotor uses Kennametal tool bit and the tool holder, the rotor layout is independent designed,reasonable and ensuresevenly mixing, etc.



* Travel system: front axle steering, rear axle, drive axle has two gears, high speed used for traveling, low speed used for operation. The low pressure wide base deep tread tyres are installed in the drive axle, this tyre has big adhesive force and strong anti slip ability.



* This cab uses wide structure, installs the heating and air conditioner equipped with fan device, Mp3 and radio,comfortable operating.

XCMG Soil Stabilizer Machine China Stabilizing Soil Mixing Stabilization Equipment XL2103 For Sale

Item

Unit

XL2103

Mixing width

mm

2100

Max. milling depth

mm

0~400

Rotor diameter

mm

1280

Min. turning radius

mm

7100

Manufacturer

Weichai

Cooling mode

Water cooled+ air intercooling

Type

WP12.400N

Air cylinder number

6

Rated power

kw

294

Rated speed

rpm

1900

Max. fuel consumption rate

g/kW.h

207.6

Electrical system

24V

Working speed

km/h

0~3

Travelling speed

km/h

0~23

Theoretical gradeability (working gear)

%

20

Ground clearance

mm

450

Fuel tank

L

450

Hydraulic oil tank

L

450

Machine mass

kg

15600

Front axle mass

kg

3200

Rear axle mass

kg

12300

Mechanical (length x width x height)

mm

8740*2765*3450
