- Overall Dimension:1440*760*2020mm
- Table Size:1290*700mm
- Max Lifting Height:5.6m
- Min Lifting Height:2.0m
- Rated Loading Capacity:240kg
- Lift Drive / Actuation:Electric
- Lift Mechanism:Scissor Lift
- Model Number:XG1612HD
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Moving Type:Other
- Max. gradeability:25%
- Tilt warning angle:1.5/3。

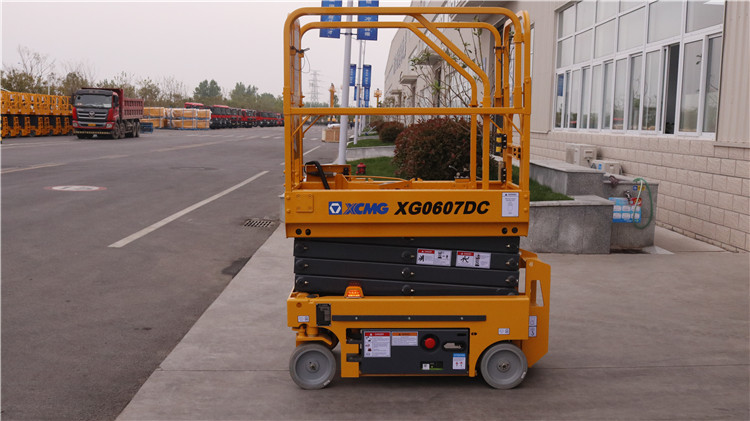

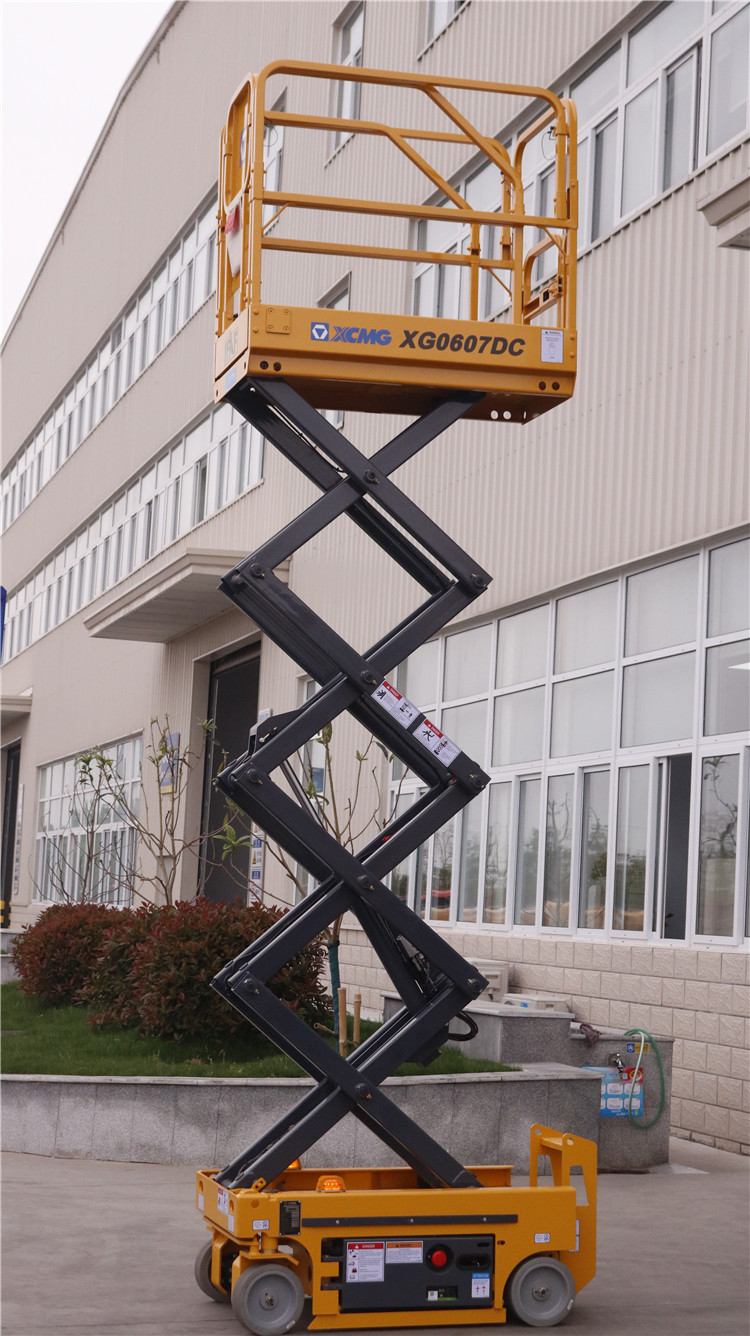

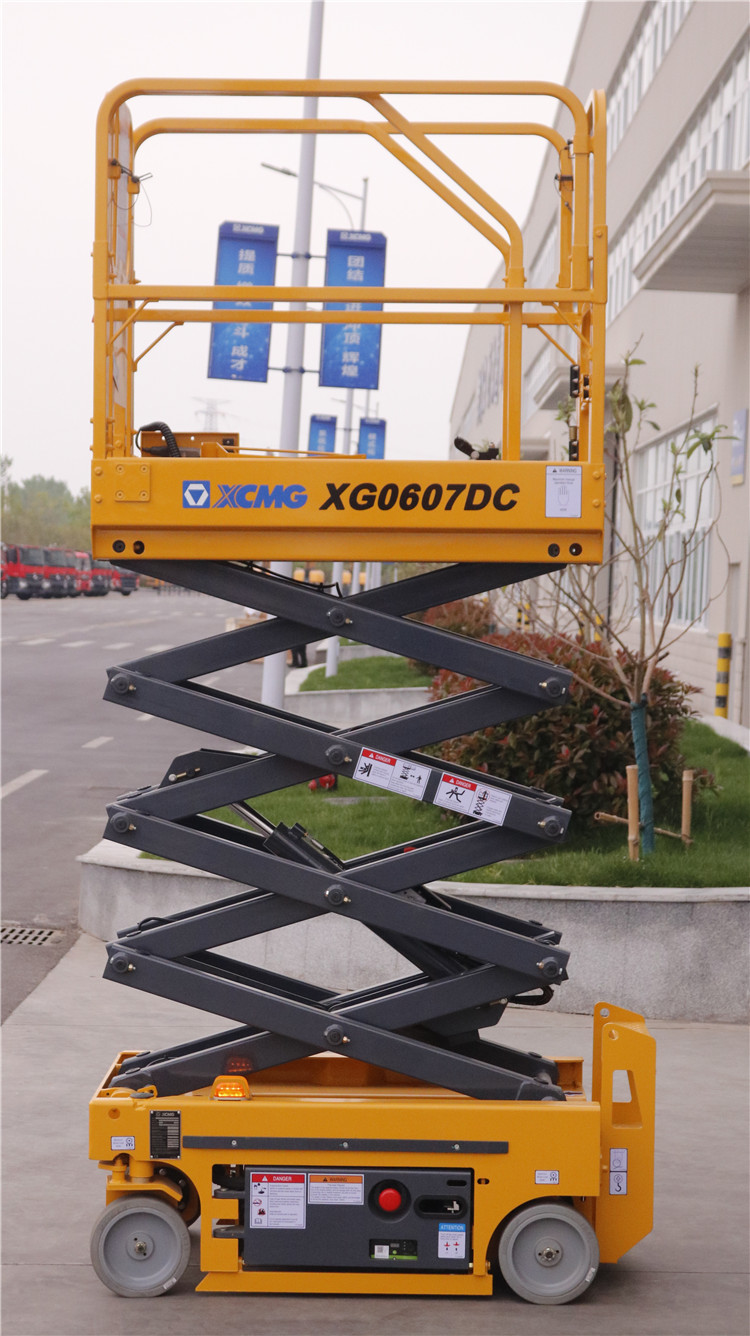

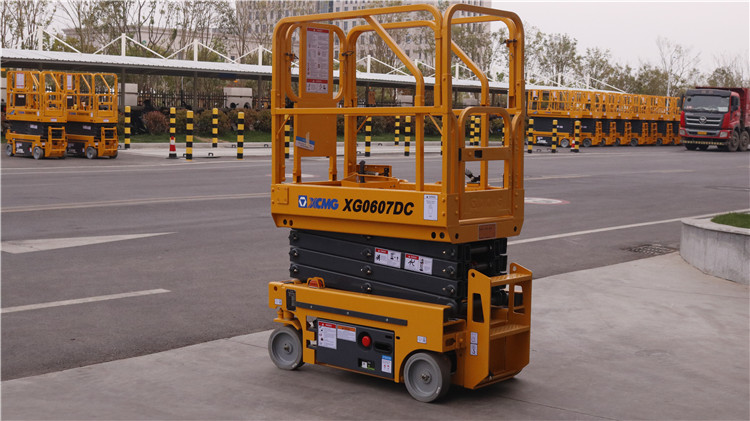

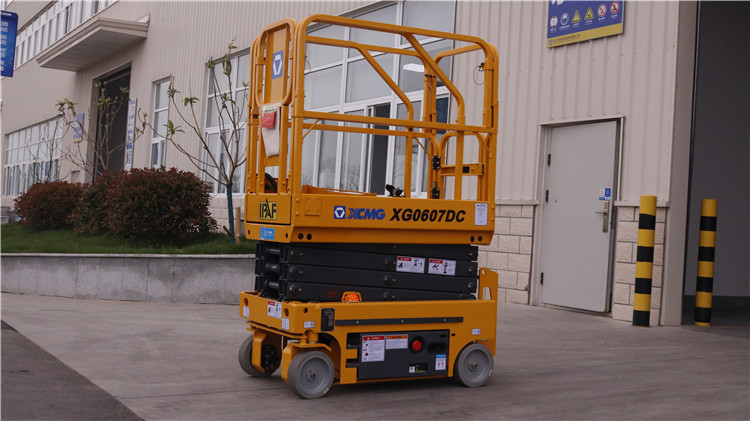

6m mini electric XCMG aerial work platform XG0607DC.
XCMG aerial work platform XG0607DC developed by XCMG has the work height at 5.6m, the vehicle width at 0.76m, the rated load at 240kg, platform extend length at 0.6m and maximum gradeability at 25%.
In addition. XCMG aerial work platform XG0607DC is free of any pollution, with steady lifting / lowering, easy control and maintenance. Therefore, XCMG aerial work platform XG0607DC are widely applied to warehouses, factories, airports, and train stations, especially the narrow work sites.
Advantages and features：
1.Effective and energy-saving electric-drive system features zero emission and low noise.
2.Meeting the customer needing for safety, reliability and intelligence.
3.Narrow- structure design enables the complete vehicle to easily pass through a single gateway.
4.foldable fence could make the transportation easier.
5.“Zero Turning Radius” is unique and enable machine to corner in narrow room.
6.Maximum payload at 240kg, leading the industry. Maximum traveling speed 4km/h and 25% gradeability make the driving easier.
