Summary
- Rated Speed:2100rpm
- Maximum Digging Depth:6960mm
- Maximum Digging Height:9595mm
- Bucket capacity:1.0~1.1m³
- Operating Weight:23500kg
- Model Number:XE235C
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- weight:23500.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

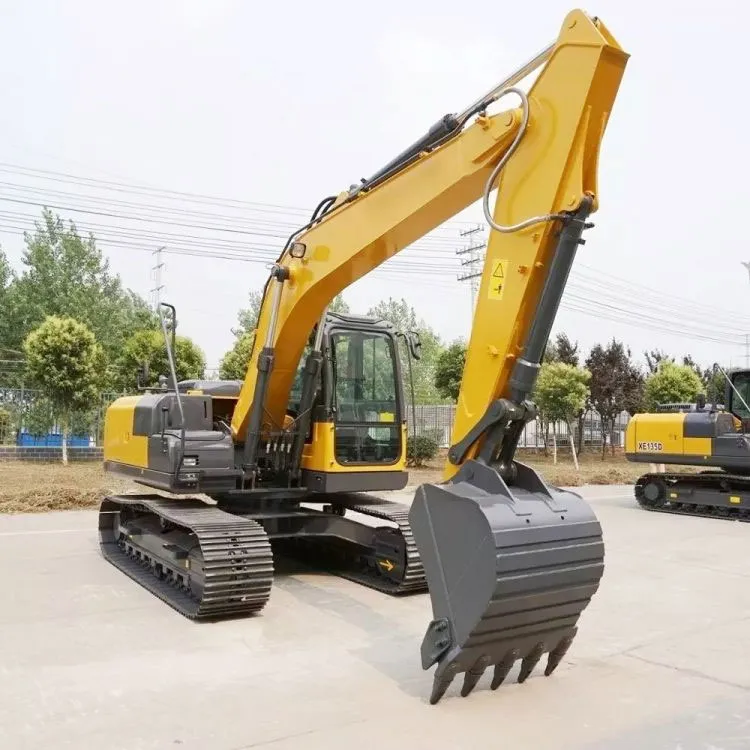

23.5 ton XCMG manufacturer hydraulic Crawler Excavator XE235C.
XCMG hydraulic Crawler Excavator XE235C is a new product developed by XCMG Group which is widely developed by adopting the latest technology and adopting the advanced technology of similar foreign products. XCMG hydraulic Crawler Excavator XE235C is an efficient excavator with the latest technology, full attention to safety and environmental performance, and extremely high production efficiency. Based on the full absorption of international advanced technology, the project is based on independent innovation and comprehensively overcomes many core key technologies of 20-ton hydraulic excavators.
The newly upgraded XCMG hydraulic Crawler Excavator XE235C has more power, lower fuel consumption and stronger working performance. It can be widely used in farmland water conservancy, river dredging, municipal construction and small mine construction, and can realize different operation requirements such as excavation, crushing and dismantling. The adaptability of working conditions has been further strengthened.

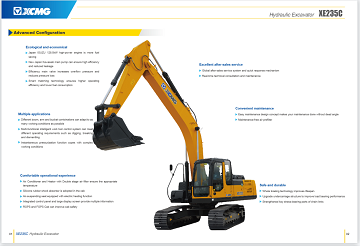

Performance Characteristics:
1. Ecological and economical
* Japan ISUZU 128.5kW high-power engine is more fuel saving.
* New Japan Kawasaki main pump can ensure high efficiency and reduced leakage.
* Efficiency main valve increases overflow pressure and reduces pressure loss.
* Smart matching technology ensures higher operating efficiency and lower fuel consumption.
2. Multiple applications
* Different boom, arm and bucket combinations can adapt to as many working conditions as possible.
* Multi-functional intelligent work tool control system can meet different operating requirements such as digging, breaking and dismantling.
* Instantaneous pressurization function copes with complex working conditions.
3. Comfortable operational experience
* Air Conditioner and Heator with Double stage air filter ensure the appropriate temperature.
* Silicone rubber shock absorber is adopted in the cab.
* Air-suspending seat equipped with electric heating function.
* Integrated control panel and large display screen provide multiple information.
* ROPS and FOPS Cab can improve cab safety.
|
Description |
Unit |
Parameter value |
||
|
Operating weight |
kg |
23500 |
||
|
Bucket capacity |
m³ |
1.0~1.1 |
||
|
Engine |
Model |
Engine |
CC-6BG1TRP |
|
|
Style |
Direct injection |
--- |
√ |
|
|
Four strokes |
--- |
√ |
||
|
Water cooling |
--- |
√ |
||
|
Turbo-charging |
--- |
√ |
||
|
Air to air intercooler |
--- |
√ |
||
|
No. of cylinders |
--- |
6 |
||
|
Output power |
kW/ r/min |
128.5/2100 |
||
|
torque/speed |
N.m |
637/1800 |
||
|
Displacement |
L |
6.494 |
||
|
Main performance |
Travel speed(H/L) |
km/h |
6.0/4.0 |
|
|
Rotating speed |
r/min |
≤35 |
||
|
Gradeability |
° |
12.1 |
||
|
Ground pressure |
kPa |
48.9 |
||
|
Bucket digging force |
kN |
176 |
||
|
Arm digging force |
kN |
125 |
||
|
Maximum traction |
kN |
194.8 |
||
|
Hydraulic system |
Main pump |
-- |
2 |
|
|
Rated flow of main pump |
L/min |
2×246 |
||
|
Pressure of prime valve |
MPa |
34.3/37 |
||
|
Pressure of travel system |
MPa |
34.3 |
||
|
Pressure of swing system |
MPa |
25 |
||
|
Pressure of pilot system |
MPa |
3.9 |
||
|
Oil Capacity |
Fuel tank capacity |
L |
400 |
|
|
Hydraulic tank capacity |
L |
240 |
||
|
Engine oil capacity |
L |
25 |
||
|
Appearance size |
Overall length |
mm |
10160 |
|
|
Overall width |
mm |
2990 |
||
|
Overall height |
mm |
3100 |
||
|
Width of platform |
mm |
2830 |
||
|
Length of crawler |
mm |
4255 |
||
|
Overall width of chassis |
mm |
2990 |
||
|
Width of crawler |
mm |
600 |
||
|
Wheel base of crawler |
mm |
3462 |
||
|
Crawler gauge |
mm |
2390 |
||
|
Clearance under counterweight |
mm |
1050 |
||
|
Min. ground clearance |
mm |
485 |
||
|
Min. tail swing radius |
mm |
2985 |
||
|
Working scope |
Max. digging height |
mm |
9595 |
|
|
Max. dumping height |
mm |
6725 |
||
|
Max. digging depth |
mm |
6960 |
||
|
Max. digging depth at the range of level 8 feet |
mm |
6750 |
||
|
Max. vertical wall digging depth |
mm |
6090 |
||
|
Max. digging reach |
mm |
10240 |
||
|
Min. swing radius |
mm |
3850 |
||
