XCMG official 4 Wheel Drive self-loading concrete mixer truck SLM3500S
Summary
- Dimension(L*W*H):7100*2750*3300mm
- Weight:8100 kg
- Power(W):85 KW
- Model Number:SLM3500S
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- weight:8100.000kg
- Condition:New
- Moving Type:Other
- Vehicle Speed:0-40 km/h
- Wheel Base:2200 mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

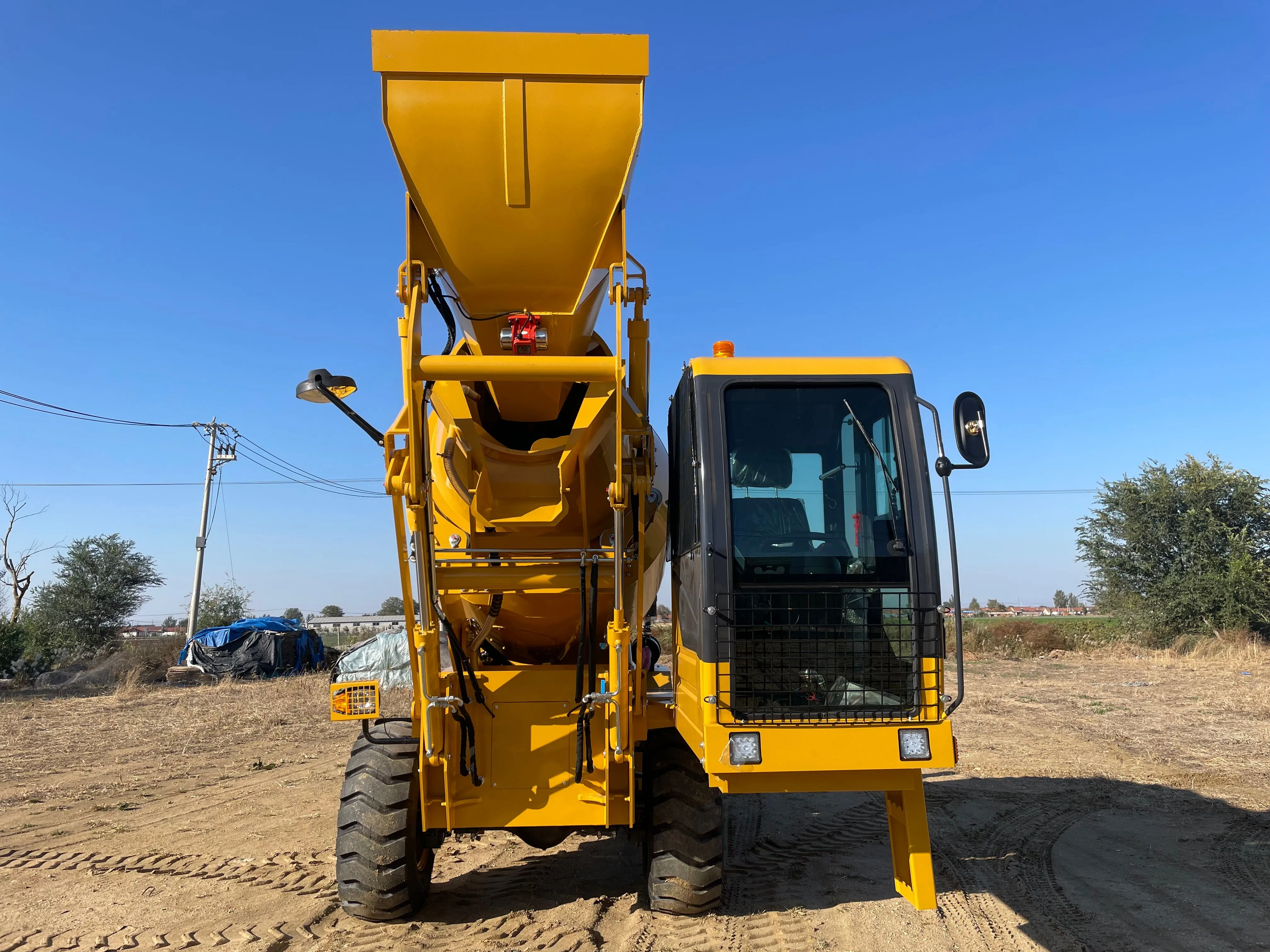

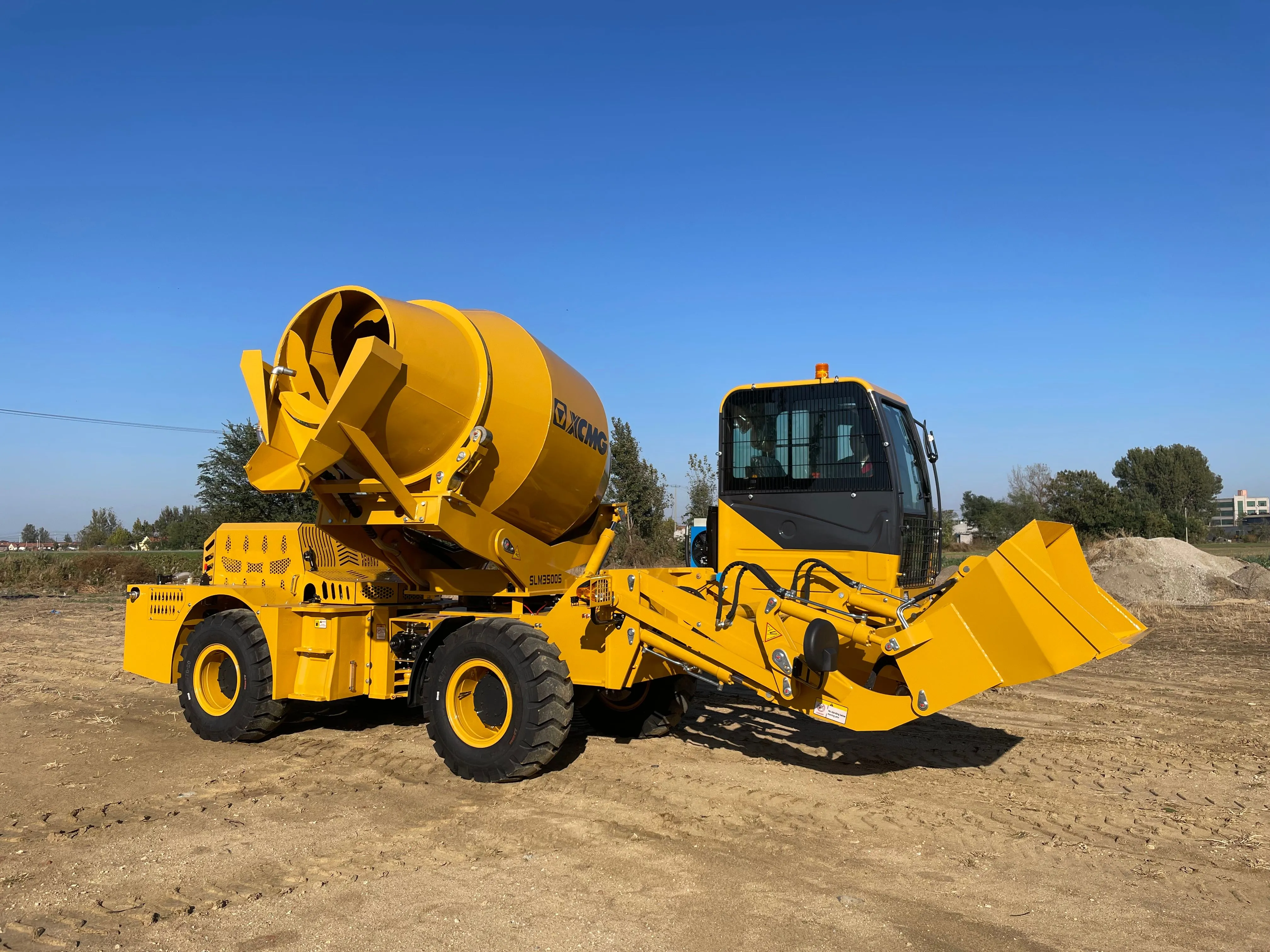

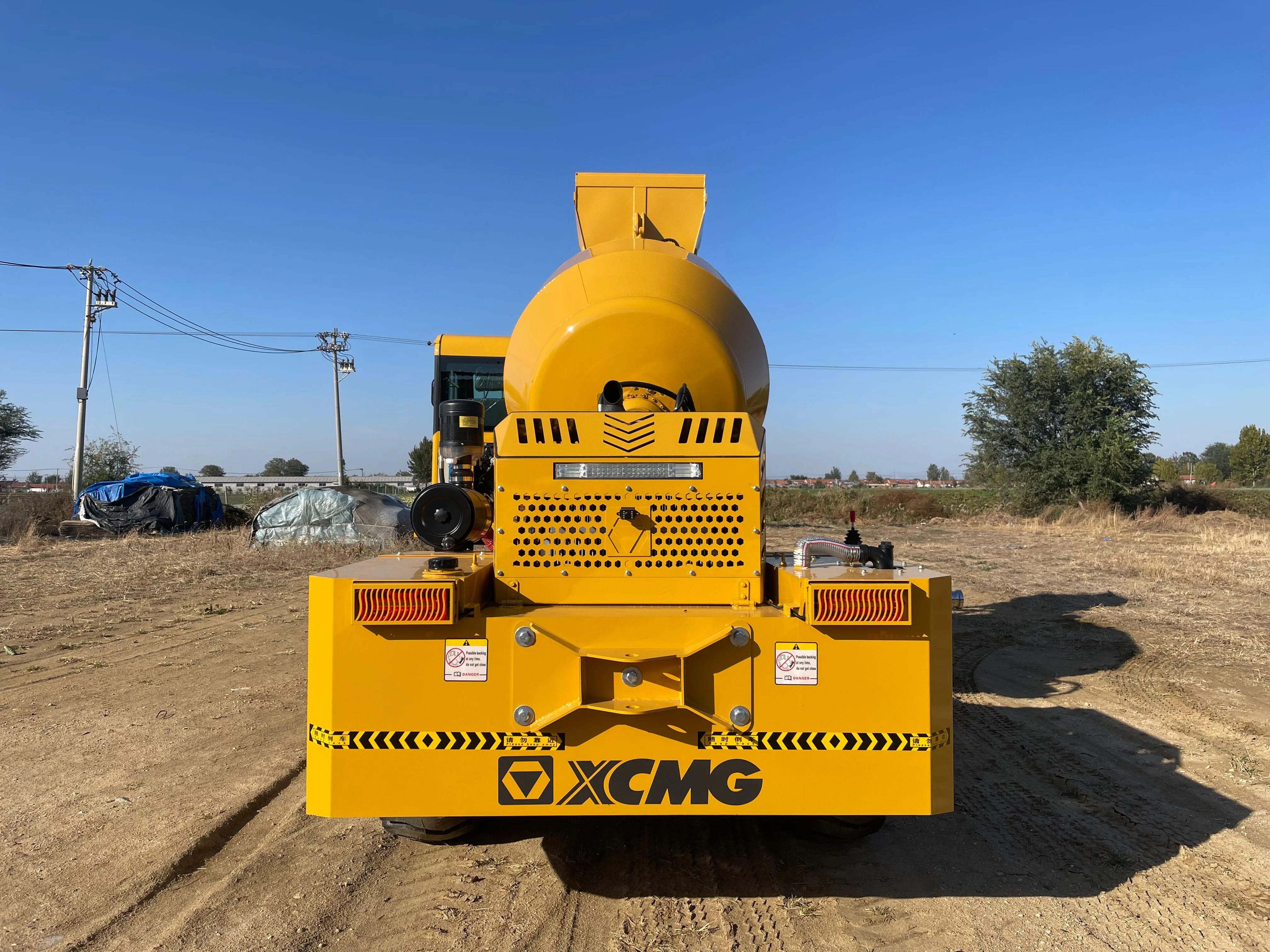

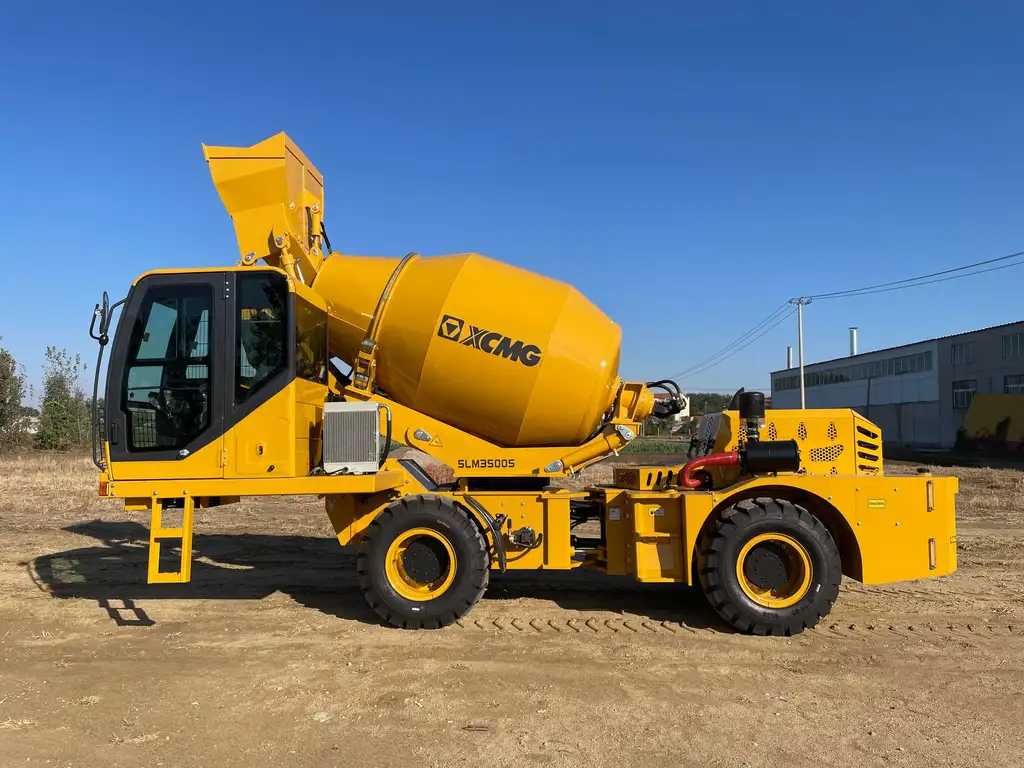

XCMG official 4 Wheel Drive self-loading concrete mixer truck SLM3500S
SLM3500S self loading concrete mixer is a new 3.5 cube concrete mixer, with a maximum driving speed of 40km/h and a production efficiency of about 15.5m3/ h. All bucket action through the pilot handle to achieve.
* Output per lot: 3.5 cubic metres
* Drum rotation: discharge port height 1.8 meters, cab and tank horizontal rotation 270 tank can be raised and lowered
* ENGINE: Yuchai Power, diesel, water-cooled, 4 cylinders, 2600 RPM, rated power 85KW
Drive mode: The engine is directly connected to the 280 torque converter, through the drive shaft to the transmission with dual high and low speed through the drive shaft connected to the front and rear axles to achieve 4-wheel drive
* SPEED: dual altitude, low speed 0-25 kph, high speed 0-40kph
* Driver's seat: Widen the luxurious cab of the excavator, front window can be opened, anti-roll, anti-falling object type, double armrest cushion seat
* Hydraulic System: Open type oil, plunger type motor, two gear pumps to participate in the work
* JOYSTICK: Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank
* Clay Groove: equipped with one 150CM Removable Chute to increase the length of discharge
* Water Supply System: Use Small Servo pump on independent double circuit, use single wheel 4-piston plus double brake caliper
* BRAKES:Use Small Servo pump on independent double circuit, use single wheel 4-piston plus double brake caliper
* Steering: Hydraulic articulated steering
* Fuel tank / Water tank: 1 * 800 l water tank, 130 l diesel fuel tank, 130 l hydraulic fuel tank
* Others: Q345 manganese steel frame, excavator luxury cab, driving impact, cement bucket, air conditioning
Model | SLM3500S |
CAPACITY | 4.5 batches/h or 15.5 cubic/hour |
Weight | 8100KG |
Bucket(hydraulic gate) | 0.65 cubic |
TIRE(steel wire high pressure vacuum tire) | 12R-22.5 |
Power System | 24V |
Length, width, height / wheelbase / Wheelbase | 7100mm*2750mm*3300mm*2700mm*2200mm |
CLIMB | 40° |
Turning radius | 2900mm |
