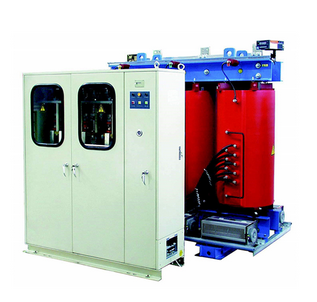

Xuxiang 10kV On-load Voltage Regulation Dry-type Transformer

  • Xuxiang 10kV On-load Voltage Regulation Dry-type Transformer

Share:
Xuxiang 10kV On-load Voltage Regulation Dry-type Transformer
1 Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
Xuxiang 10kV On-load Voltage Regulation Dry-type Transformer
Xuxiang 10kV On-load Voltage Regulation Dry-type Transformer
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
Summary
Specifications
  • weight:111.000kg
  • Warranty Period:3 Months
  • Certification:CE/ISO9001
  • Condition:New

Product Introduction

In order to provide high-quality and stable voltage, the transformer must be regulated when voltage of the power grid fluctuates.


The more important the reliable power supply is to users, the more widely on-load voltage regulation transformers will be used.



This product is able to stand strong thermal shock and has high over load capacity with high resistance to inflammation, moisture and dust, making it applicable to various situations. This product is especially suitable for harsh environment which has strict requirements on safety against fire, big load fluctuation and which is wet and full of dirt such as high buildings, business centers, airports and other special places.



Product Features

Besides the advantages of SC(B) products, this kind of product uses vacuum on-load regulating switch, guaranteeing the sensitivity of voltage regulation and the stability of voltage output.



When the voltage of power grid fluctuates, voltage adjustment of the transformer must be carried out to improve the quality of the stable voltage.



Integrated design of on-load voltage regulating transformer has compact structure, takes up small area and can be easily installed.



On-load tapping changer has a dry vacuum box structure and is composed of electric mechanism, vacuum switch with transition resistor and the switch and tap selector.



The on-load tapping changer is provided with an automatic controller for on-site or remote control. Computer interface can be provided according to user needs.



Technical Parameters

Rated
capacity
(kVA)
Voltage  combination Connection
symbol
No
-load
loss
(W)
Load
 loss
(W)
No
-load
current
(%)
Short
-circuit
impedence
(%)
Insulation
 rating
HV(kV) HV
tapping range
(%)
LV(kV)

200

11,10.5,10,6.3,6

±5,±2×2.5

0.4

Dyn11,Yyn0

690

2660

1.6

4

F/F

250

790

2900

1.6

315

970

3610

1.4

400

1080

4240

1.4

500

1280

5150

1.4

630

1475

6270

1.2

6

800

1670

7400

1.2

1000

1950

8760

1.1

1250

2300

10540

1.1

1600

2700

12410

1.1

2000

3680

15220

1

2500

4400

18100

1

3450

5650

23630

0.8

8

4000

6560

28350

0.8
