XCMG water well drilling rig 300 meter machine XSL3-160 with catalog PDF
FOB for Piling Mach Reference Price:Get Latest Price
$40000.00-$60000.00 1 / EA (Min. Order)
Model: XSL3-160
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG water well drilling rig 300 meter machine XSL3-160 with catalog PDF
XCMG water well drilling rig 300 meter machine XSL3-160 with catalog PDF
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
  • Product PDF
Summary
  • Dimension(L*W*H):3980*3130*6500mm
  • Weight:8.7(9.7)ton
  • Power(W):92kw
  • Model Number:XSL3-160
  • Brand Name:XCMG
  • Place of Origin:XUZHOU, CHINA
Specifications
  • weight:8700.000kg
  • Condition:New
  • Moving Type:Other

XCMG water well drilling rig 300 meter machine XSL3-160 with catalog PDF

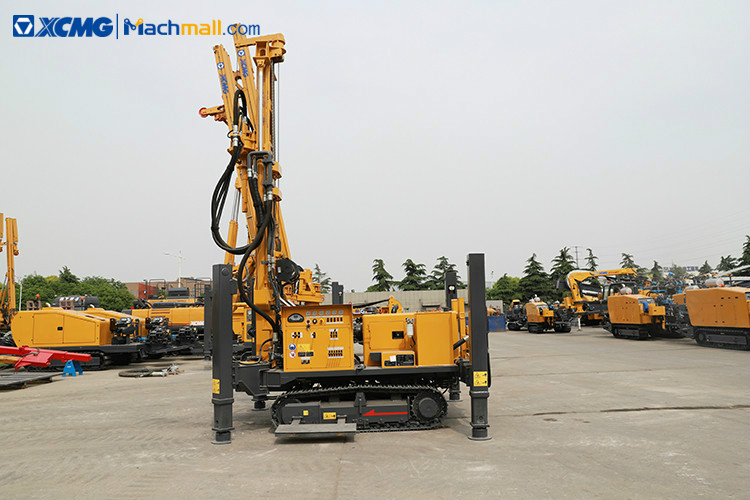

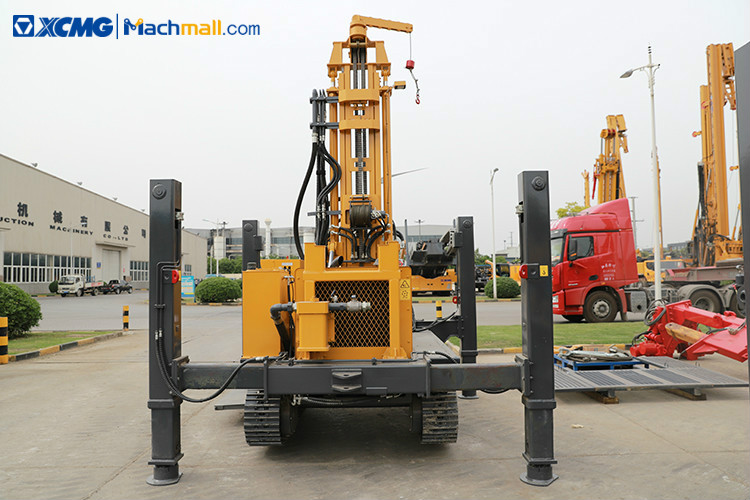

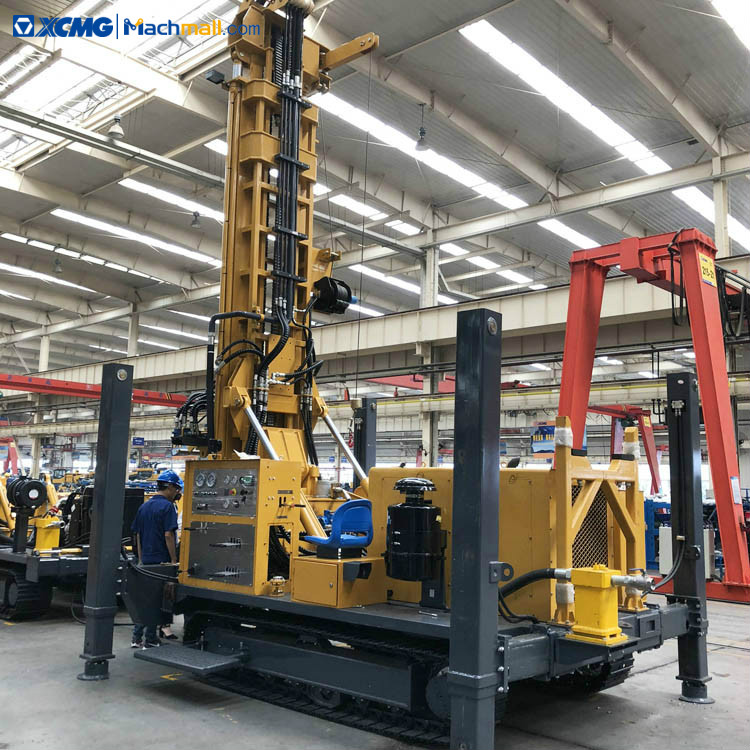

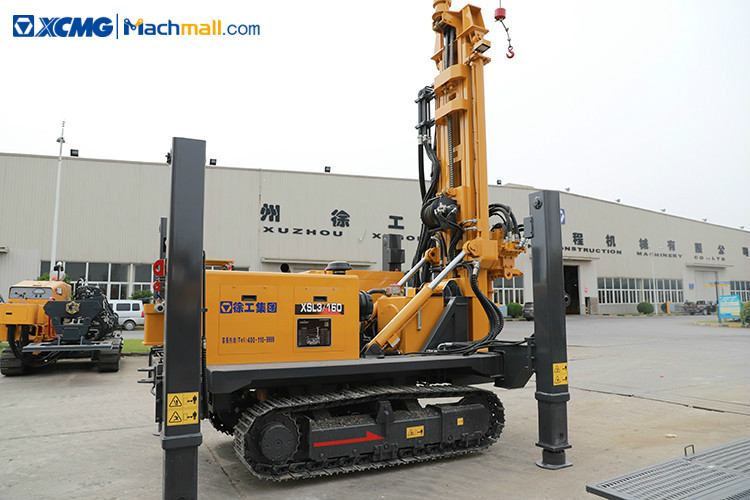

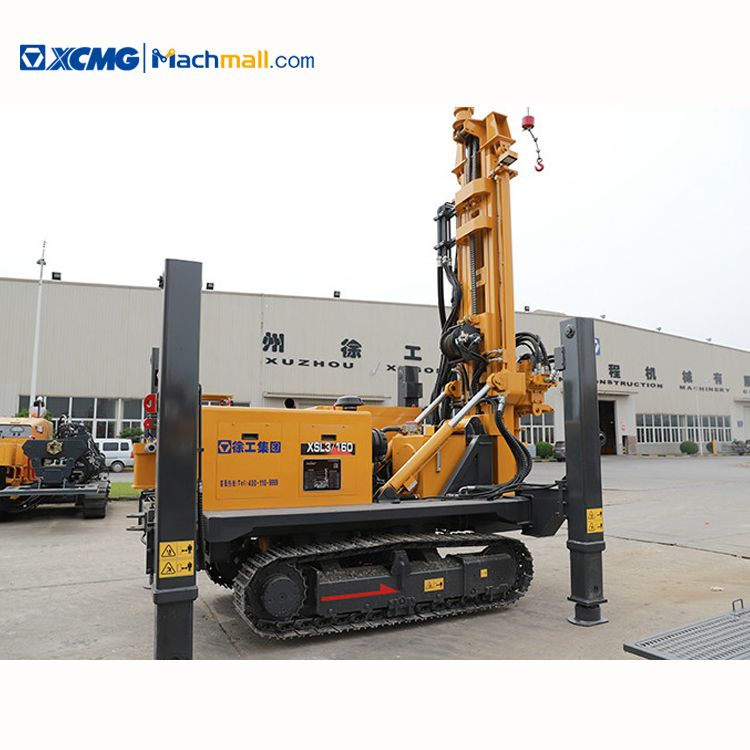

XCMG water well drilling rig 300 meter machine XSL3-160.



XCMG water well drilling rig 300 meter machine XSL3-160 uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency.

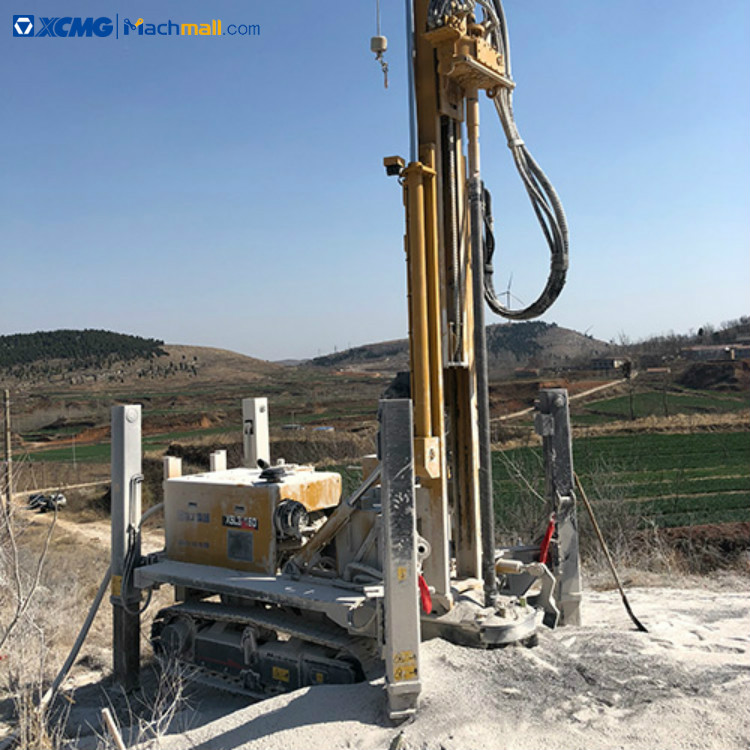

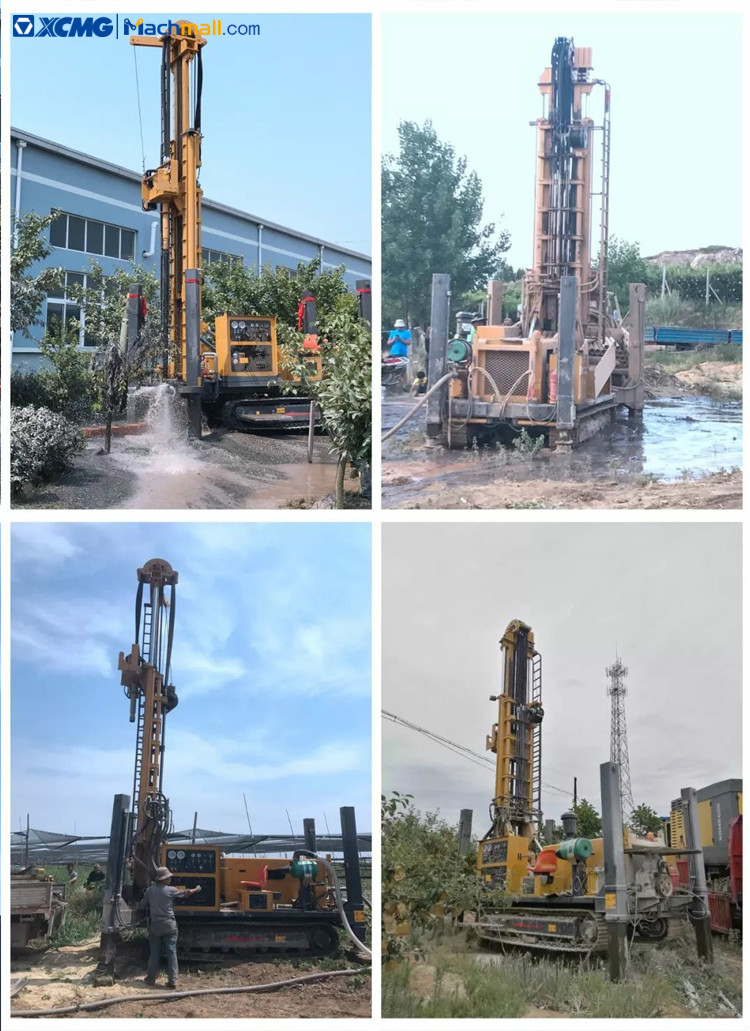

1, Reasonable overall layout uses the tractor-mounted or all terrain chassis for transportation with good maneuverability. Very flexible in difficult roads, it can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation or salvage work.



2, The top-mounted driving head principal shaft has a great drift diameter,which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands of well-drilling in different terrain strata.



3, Mature and reliable hydraulic top drive power head with large bearing capacity and good sealing effect.



4, The gap adjustable telescopic drill collar can meet the requirements of long casing construction and has high work eficiency.



5,  Unique hydraulic matching technology for high system efficiency.



6,  Integrated visualization pressurize and pressurize decompression feed system for fine adjustment of diling pressure according to dilling depth.



XCMG water well drilling rig 300 meter machine XSL3-160 with catalog PDF

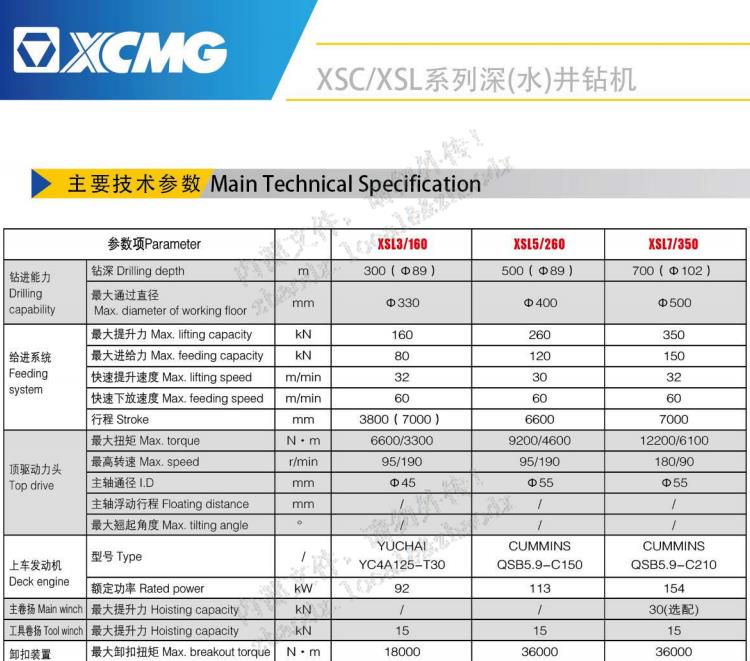

Parameter

Unit

XSL3/160

Drilling capability

Drilling depth

m

300(φ89)



Max. diameter of working floor

mm

φ330

Feeding system

Max. liting capacity

kN

160



Max. feeding capacity

kN

80



Max. lifting speed

m/min

32(25)



Max. feeding speed

m/min

60(48)



Stroke

mm

3800(7000)

Top drive

Max. torque

N.m

6600/3300



Max. speed

r/min

95/190



I.D

mm

φ45

Deck engine

Type



YC4A125-T30



Rated power

kW

92

Tool winch

Hoisting capacity

kN

15

Breakout device

Max. breakout torque

N.m

18000

Mud pipe

I.D

mm

φ55



Max. pressure

MPa

8

Chassis

Highest speed

km/h

2.4



Max. climbing gradient

%

39

Max. ground clearance of crawler

mm

1000

Max. inner distance between front support legs

mm

2600

Max. iner dstance between back support legs

mm

2700

Working dimension

mm

3980*3130*6500

(3980*3130*8100)

Transportation dimension

mm

4450(3980)*1800*2400

(6050(3980)*1800*2400)

Weight

t

8.7(9.7)



XCMG water well drilling rig 300 meter machine XSL3-160 with catalog PDFXCMG water well drilling rig 300 meter machine XSL3-160 with catalog PDFXCMG water well drilling rig 300 meter machine XSL3-160 with catalog PDFXCMG water well drilling rig 300 meter machine XSL3-160 with catalog PDFXCMG water well drilling rig 300 meter machine XSL3-160 with catalog PDFXCMG water well drilling rig 300 meter machine XSL3-160 with catalog PDF
