Cheap all terrain crane XCMG 260 ton QAY260 on sale
Summary
- Model Number:QAY260
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Span:8.8m
- Max. Lifting Height:103.3m
- Max. Lifting Load:260 ton
- Rated Lifting Moment:7980kN.m
- Rated Loading Capacity:260 ton
- Application:Construction
- Certification:CE/ISO9001
Specifications
- weight:72000.000kg
- Condition:New
- Moving Type:Wheel
- Color:Color
- Overall dimension:16150*3000*4000mm
- Engine rated power:194/2100-181/2100kW/(r/min)
- Engine rated torque:1050/1400-1050/1500N.m/(r/min)
- Max.travel speed:72km/h
- Min.turning diameter:24m
- Min.ground clearance :280mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

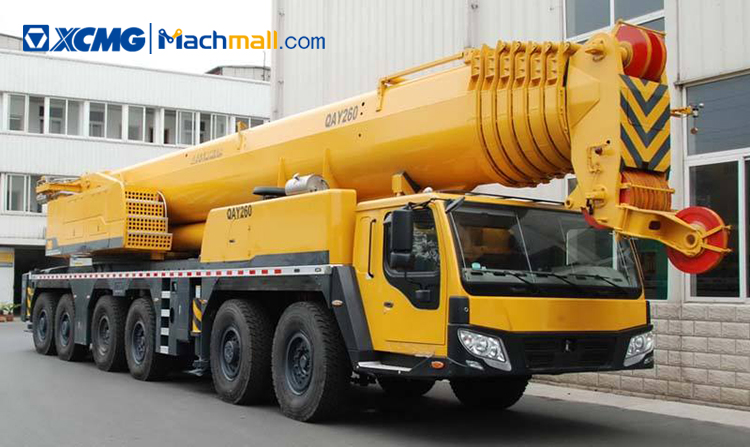

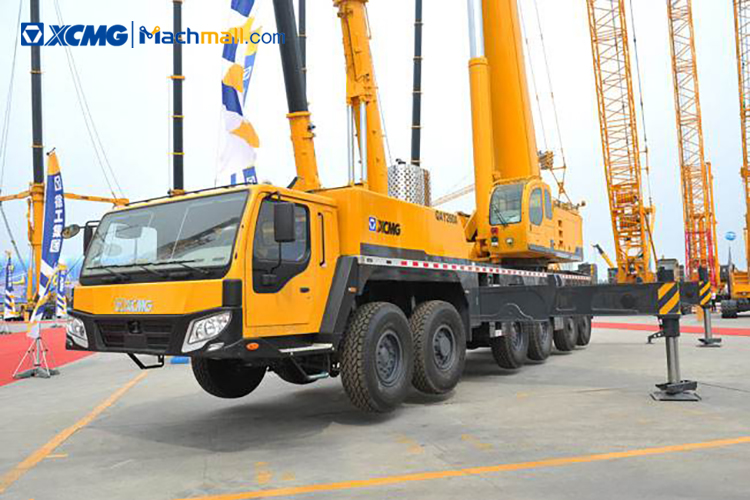

Cheap all terrain crane XCMG 260 ton QAY260.
As new generation of XCMG all terrain crane QAY260 perfectly inherits the many advantages of the previous game.
XCMG all terrain crane QAY260 adopts a 6-axle all-terrain chassis, 12x12 full-axle steering mode, and a powerful imported Mercedes-Benz EFI engine. Lighter weight, stronger performance, and optimized multiple telescopic boom combinations to maximize the performance of the boom.
Performance Characteristics:
1. The self-assembled counterweight technology independently researched and developed can effectively improve the lifting performance of medium and long booms by 30%;
2. The electro-hydraulic proportional control multi-axle steering mode can realize multiple steering working modes;
3. New braking technology can reduce maintenance costs by 2/3 and improve driving safety;
4. Equipped with Xu Zhong's proprietary control system, auxiliary telescopic arm system, virtual wall system, complete fault diagnosis and real-time detection functions, and powerful and efficient CAN bus technology and other intelligent control systems.
|
Parameter Item |
Scale |
Unit |
|
|
Dimensions |
Overall length |
16150 |
mm |
|
Overall width |
3000 |
mm |
|
|
Overall height |
4000 |
mm |
|
|
Weight |
Dead weight in travel state |
72000 |
kg |
|
1st axle |
12000 |
kg |
|
|
2nd axle |
12000 |
kg |
|
|
Power |
engine model |
TAD722VE TAD750VE |
|
|
engine rated output |
194/2100 181/2100 |
KW/(r/min) |
|
|
engine rated torque |
1050/1400 1050/1500 |
N.m/(r/min) |
|
|
Travel |
Max.travel speed |
72 |
km/h |
|
Min.turning diameter |
24 |
m |
|
|
Min.ground clearance |
280 |
mm |
|
|
Approch angle |
16 |
° |
|
|
Departure angle |
18 |
° |
|
|
Max.gradeability |
50 |
% |
|
|
Lifting Performance |
Max.total rated lifting load |
260 |
t |
|
Min.rated working radius |
3 |
m |
|
|
Turning radius at swing table tail |
5255 |
mm |
|
|
Base boom amx.load moment |
7980(133t*6m) |
kn.m |
|
|
Base boom |
13.5 |
m |
|
|
Full-extended boom |
72 |
m |
|
|
Full-extended boom+Jib |
103.3 |
m |
|
|
Outrigger longitudinal distance span |
8.8 |
m |
|
|
Outrigger lateral distance span |
8.7/6.5 |
m |
|
|
Working speed |
Boom elevating time |
85 |
s |
|
Boom telescoping time |
700 |
s |
|
|
Max.swing speed |
1.4 |
r/min |
|
|
Main winch max. speed(on load) |
115 |
m/min |
|
|
Auxiliary winch max. speed(on load) |
118 |
m/min |
|
