FOB Price: $55000.00-$60000.00
View All >
Model: XD103
Engine: SHANGCHAI
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
10 ton XCMG double drum pavement roller XD103 price

Content:

Or choose from these questions:
What is the best price you can offer?
Do you support customization?
What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

XD103
Specs & Compare
Details
VR
Specs & Compare
Select 3 models for comparison
Weight
Dimension(L*W*H)
Power(W)
Model Number
Brand Name
Place of Origin
Grade Ability
Travel Speed
Static Linear Pressure
Type
Certification
Engineering & Construction Machinery
XD103
10000kg
4900*1750*3087mm
74.9kW
XD103
XCMG
Xuzhou, Jiangsu, China
35%
0~12km/h
280/280N/cm
Double Drum Road Roller
CE/ISO9001
+   Add a Product
+   Add a Product

Summary

  • Weight:10000kg
  • Dimension(L*W*H):4900*1750*3087mm
  • Power(W):74.9kW
  • Model Number:XD103
  • Brand Name:XCMG
  • Place of Origin:Xuzhou, Jiangsu, China
  • Grade Ability:35%
  • Travel Speed:0~12km/h
  • Static Linear Pressure:280/280N/cm
  • Type:Double Drum Road Roller
  • Certification:CE/ISO9001

Specifications

  • weight:10000.000kg
  • Condition:New
  • Moving Type:Wheel
  • Compaction width:2420mm
  • Nominal amplitude:0.35/0.6mm
  • Vibration frequency:58/48Hz
  • Exciting force:90/110kN
  • Vibration wheel size:1150*1750mm
  • Minimum turning radius:4070/5820mm

Packaging & Shipping

  • Delivery Lead Time:7 days for ready goods
  • Minimum Order:1 Piece
  • Supply Ability:10,000 Set/ Sets per Month
  • Total Quantity In Stock:Over 5000
  • Delivery Port:Any Port In China

10 ton XCMG double drum pavement roller XD103 price

10 ton XCMG double drum pavement roller XD103.



Pavement roller XD103 which is independent researched and developed by XCMG road machinery business division based on years of experience in compaction machinery research and development.



XCMG paverment roller XD103 is designed for the compaction of asphalt pavement, asphalt layer of different materials and different thickness, especially suitable for roads, parking lots, airports and other large engineering projects, can also be used for compaction of roadbed and sub-base material, wide application scope.



Performance Characteristics:



1.The console can rotate about 35 degrees, improving the driving comfort.



2.The steering wheel can adjust angle according to the need of the driver.



3.Control handle, display, etc. are arranged on the right side to broaden the front view.



4.Speed frequency management system guides the user to compaction operation.



5.Guiding the user to improve operation efficiency.



6.The vibration drum realizes the center of four-in-one combination.



7.Preventing the over-compaction and less-compaction.

10 ton XCMG double drum pavement roller XD103 price

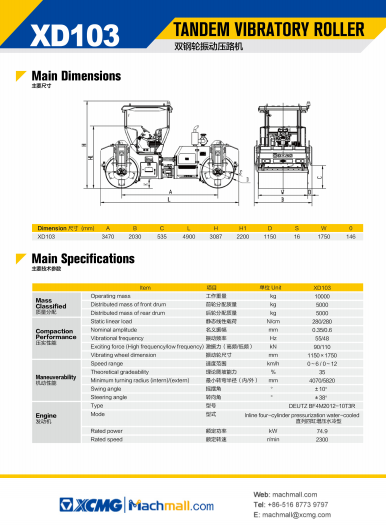

Parameter

Unit

XD103

Weight distribution

Working weight

kg

10000

Front wheel distribution weight (kg)

5000

Rear wheel distribution weight (kg)

5000

Compaction performance

Static linear load

N/cm

280/280

Nominal amplitude

mm

0.35/0.6

Vibration frequency

Hz

58/48

Exciting force (high frequency/low frequency)

kN

90/110

Vibration wheel size

mm

1150*1750

Maneuverability

Speed range

km/h

0~6/0~12

Theoretical gradeability

%

35

Minimum turning radius (in/out)

mm

4070/5820

Swing angle

°

±10

Steering angle

°

±38

Engine

Rated power

kW

74.9

Rated speed

r/min

2300
