徐工集团液压软管、金属管

View All >

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Stop selling Chat Now

Favorite Products

Product:

徐工集团液压软管、金属管

Quantity:

- + /EA

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

I agree to the 《Privacy Policy》

Specs & Compare

Details

Specifications

Weight:30.000kg
质保期:3个月
售后服务体系:7x24小时售后服务
状态:新
运动方式:轮式

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

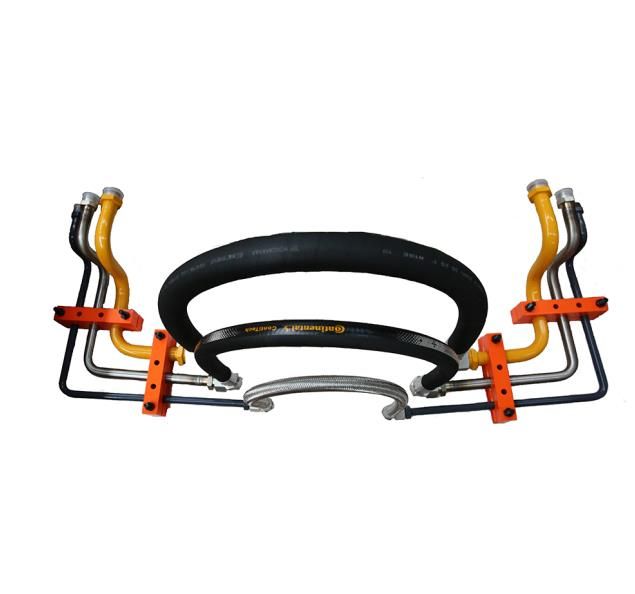

徐工集团液压软管、金属管

液压软管亮点：

1·液压软管系列产品能满足不同温度工作环境，承压能力好、脉冲可靠性高，适用于中高压系统。

2·剥胶与不剥胶产品匹配不同压力、工况环境，满足不同主机要求。

3·紧凑型液压软管弯曲半径小，尺寸更紧凑，重量更轻，用于装配空间狭小部位。

液压金属管：

1·液压金属管系列产品满足不同压力、不同温度工作环境，可靠性高。

2·弯管范围，三维尺寸一次成型，角度精度偏差≤1°，尺寸精度偏差≤2mm。

3·焊接式金属管采用粉末喷涂技术，耐中性盐雾试验500h（9级），满足不同的温度、湿度等工作环境。

徐工集团液压软管、金属管

液压金属管类型及参数
产品类型	产品材料	外径规格	壁厚	承受压力范围
(Product types)	(Material)	(Specification of outer diameter)	(Thickness)	(Pressure range)
卡套式金属管	10#/20#/ST37.4	DN6~42mm	1~5mm	200~420bar
(Ferrule mental tube)
焊接式金属管	20#/Q345B/SUS304	DN6~256mm	1~15mm	50~500bar
(Welded mental tube)
液压软管类型及参数
产品类型	规格范围	承受压力范围	脉冲能力	温度范围(Temperature range)
（Product types）	(Range of specification )	(Range of pressure resistance)	(Impulse)
编织管	DN6~63mm	40~415bar	≥30万次	-40~100℃
(Braid hose)			(300000 times)
钢丝外编管	DN6~19mm	105~210bar	≥20万次	-40~ 100℃
(Steel wire external-braided hose)			(200000 times)
缠绕管	DN6~63mm	175~421bar	≥60万次(600000times)	-40~100℃
（Spiral hose）
树脂管	DN6~13mm	140~210bar	≥20万次	-40~120℃
(Resin hose)			(200000 times)
恒压管	DN6~25mm	210bar	≥30万次	-40~100℃
(Constant pressure hose)			(300000 times)
双联管	DN6~25mm	140~210bar	≥30万次	-40~100℃
(Duplex hose)			(300000 times)
