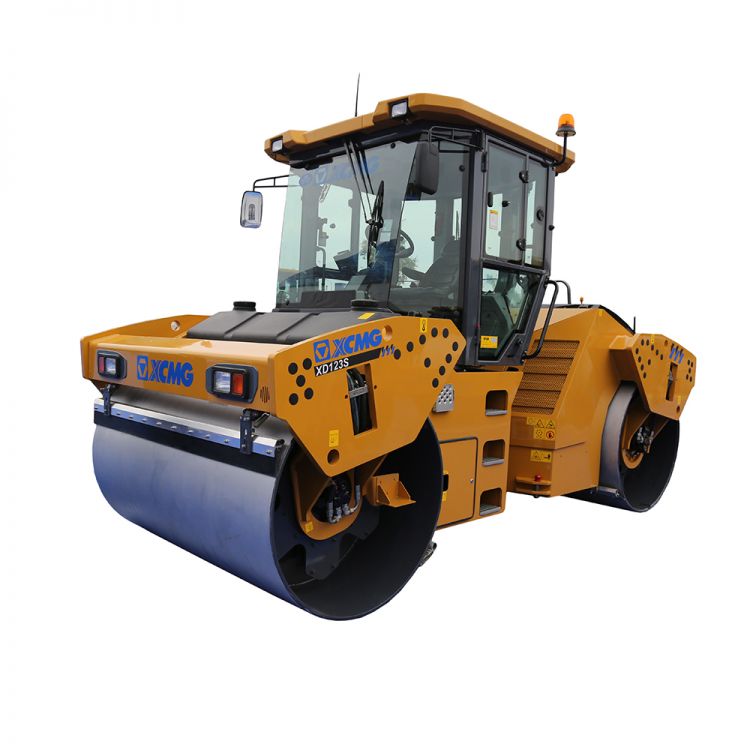

徐工集团XD123S双缸轮振动压路机

  • 徐工集团XD123S双缸轮振动压路机

徐工集团XD123S双缸轮振动压路机

徐工集团XD123S双缸轮振动压路机
徐工集团XD123S双缸轮振动压路机

徐工集团XD123S双缸轮振动压路机

View All >
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
徐工集团XD123S双缸轮振动压路机
徐工集团XD123S双缸轮振动压路机
Quantity:
- + /台

Content:

Or choose from these questions:
What is the best price you can offer?
Do you support customization?
What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

I agree to the 《Privacy Policy》
Specs & Compare
Details
Specs & Compare
Select 3 models for comparison
重量
尺寸(长×宽×高)
功率
型号
品牌
原产地
爬坡能力
轧制宽度
行驶速度
静态线性压力
类型
认证
尺寸(长x宽x高)
建筑工程机械
12300kg
--
111kW
XD123S
徐工集团
江苏徐州
35%
--
--
--
双缸轮振动压路机
ISO9001
5146*2336*3096mm
+   Add a Product
+   Add a Product

Summary

  • 重量:12300kg
  • 功率:111kW
  • 型号:XD123S
  • 品牌:徐工集团
  • 原产地:江苏徐州
  • 爬坡能力:35%
  • 类型:双缸轮振动压路机
  • 认证:ISO9001
  • 尺寸(长x宽x高):5146*2336*3096mm

Specifications

  • Weight:12300.000kg
  • 质保期:12个月
  • 售后服务体系:7x24小时售后服务
  • 状态:
  • 运动方式:其他
  • 工作质量:12300kg
  • 前轮分配质量:6200kg
  • 后轮分配质量:6100kg
  • 静态线性载荷:297/297N/cm
  • 名义振幅:0.30/0.8mm
  • 振动频率:67/50Hz
  • 激振力(高频/低频):103/159kN
  • 震动轮尺寸:1300*2130mm
  • 速度范围:0~6,0~8,0~12km/h
  • 最小转弯半径(内/外):4470/6600mm
  • 摇摆角:± 8
  • 转向角:± 35
  • 发动机型号:DEUTZ BF4M1013-15T3R/2
  • 型式:直列四缸增压水冷型
  • 额定转速:2100r/min

Packaging & Shipping

  • Delivery Lead Time:7 days for ready goods
  • Minimum Order:1 Piece
  • Supply Ability:10,000 Set/ Sets per Month
  • Total Quantity In Stock:Over 5000
  • Delivery Port:Any Port In China


徐工集团XD123S双缸轮振动压路机

徐工集团XD123S双缸轮振动压路机XD123S双钢轮振动压路机

1、前后车架采用目前主流的无框架结构,增大了车辆接近角和离去角,有效提高了整机的贴边压实性能。
2、振动轮采用传统的筒式四支撑结构,使用寿命长,此外该振动轮采用我公司独创的均压技术,是左右振动轮振幅差距控制在3%以内,有效的保证了路面平整度。
3、动力系统标准配置道依茨公司BF4M2012-15T3R/2发动机额定功率111kW
4、采用全液压传动和全电液控制技术,除行车倒顺手柄和发动机油门外,全部采用电器开关控制,使得操纵异常简便。
5、新型机罩向两侧翻开后,可以方便的维护发动机系统。
6、标配驾驶棚,视野开阔。
7、大容量水箱满足长时间工作需求,减少加水次数,喷嘴采用三级过滤系统,防止喷嘴阻塞。
8、采用先进的隔音和吸音技术,在驾驶室底部、发动机仓侧面等均设有吸音材料,此外整个发动机仓还做了密闭处理,有效隔绝发动机声,驾驶室内部噪声更低。
9、操纵台和座椅可在一定范围内旋转,并有相应的定位点,使得各种压实状态都有良好的视野。

徐工集团XD123S双缸轮振动压路机

徐工集团XD123S双缸轮振动压路机

徐工集团XD123S双缸轮振动压路机

名称

单位

参数值

工作质量

kg

12300

前轮分配质量

kg

6200

后轮分配质量

%

6100

静态线性载荷

N/cm

297/297

名义振幅

mm

0.3/0.8

振动频率

Hz

67/50

激振力(高频/低频)

kN

103/159

振动轮尺寸

mm

1300x2130

速度范围

km/h

0-6/0-8/0-12

理论爬坡能力

%

35

最小转弯半径(内/外)

mm

4470/6600

摇摆角

°

±8

转向角

°

±35

发动机型号



DEUTZ BF4M2012-15T3R/2

型式



直列四缸增压水冷型

额定功率

kW

111

额定转速

r/min

2100

徐工集团XD123S双缸轮振动压路机

徐工集团XD123S双缸轮振动压路机
