XCMG 1 ton mini tailless digger for garden XE15U price

$15000.00-$20000.00 1 / EA (Min. Order)
Model: XE15U
Engine: Kubota
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG 1 ton mini tailless digger for garden XE15U price

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

  • Machine Weight:1795kg
  • Maximum Digging Depth:2290mm
  • Maximum Digging Height:3475mm
  • Bucket capacity:0.04m3
  • Model Number:XE15U
  • Brand Name:XCMG
  • Place of Origin:Xuzhou, China

Specifications

  • Weight:1795.000kg
  • Condition:New
  • Moving Type:Crawler
  • Appearance size:3560*1240*2348mm
  • Power:9.8/2300kw/rpm
  • Gradeability:30%
  • Emission standard:Euro stage V

XCMG 1 ton mini tailless digger for garden XE15U price

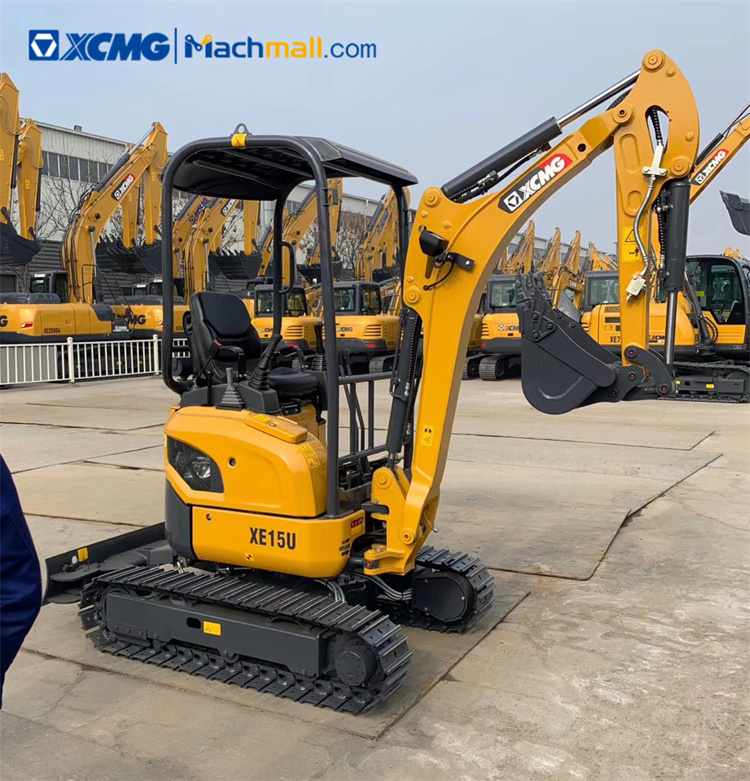

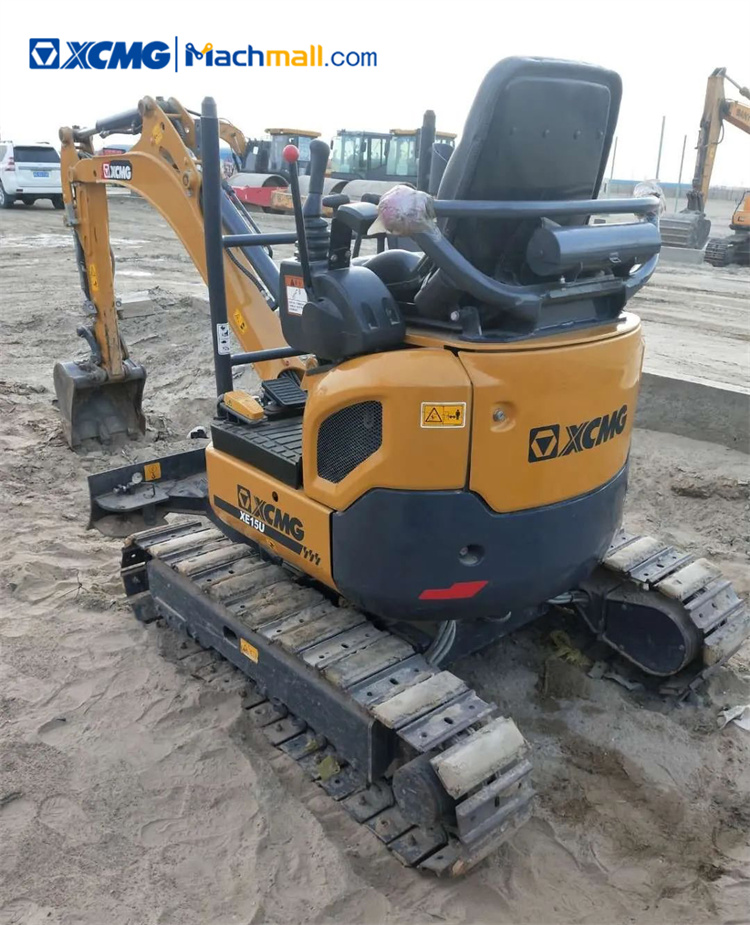

XCMG 1 ton mini tailless digger for garden XE15U.



XCMG mini digger for garden XE15U has characteristics of strong power, energy conservation and environmental protection, high reliability and excellent performance.



Ecological and economical:

1, Engine compliant with Euro stage V Emission Standard

2, The excellent matching of hydraulic system and engine is more powerful and fuel saving



Multiple applications:

1, The stretchable undercarriage can ensure the stability, improve the loading perfor mance and meanwhile enhance the passing ability

2, Tailless design and short slewing radius can achieve flexible operation in confined space Multiple additional configurations meet with different operating requirements



Convenient maintenance:

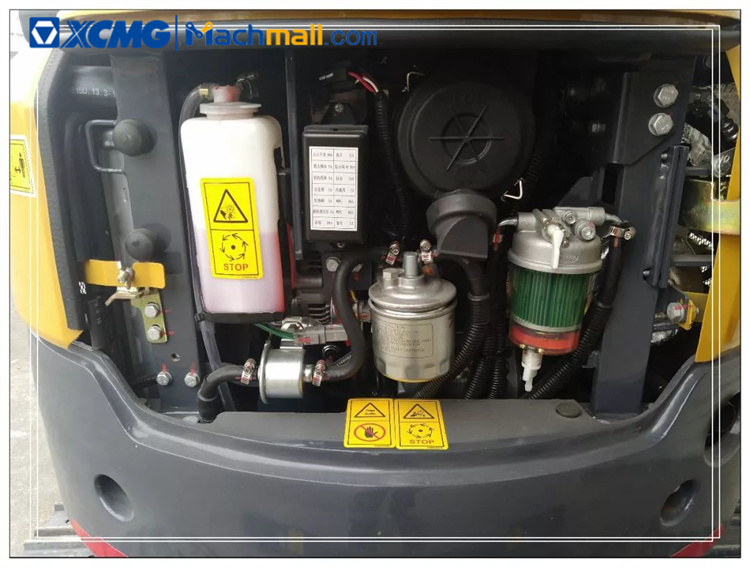

1, Easymaintenance design,open the engine hood for no dead angle maintenance



Excellent after-sales service:

1, Global after-sales service system and quick response mechanism

2, Real-time technical consultation and maintenance



Improved durability:

1, Four point support cab,with piping and wiring harness built-in Strengthened boom and arm,stress dispersing

2, Upgrade undercarriage to improve load bearing performance



The adoption of tailless design and super short slewing radius ensures the machine to work in narrow working conditions:

1, The left and right boom swing angle is respectively 75°and 50°it can realize complex operation together with upper structure slewing to ensure that the digging is parallel with wall surface in narrow space through the cooperation of superstructure slewing so as to easily deal with various operating conditions.

2, The stretchable undercarriage can improve the passing ability of the whole machine,and the widened undercarriage during operation provides better stability and loading performance for the whole machine.



XCMG 1 ton mini tailless digger for garden XE15U price

Description

Unit

Parameter value

Operating weight

Kg

1795

Bucket capacity

m3

0.04

Engine

Model

/

D782-E3B-CBH-1

No. of cylinders

/

3

Output power

kw/rpm

9.8/2300

torque/speed

N.m

44.5/1800

Displacement

L

0.778

Hydraulic system

Travel speed(H/L)

km/h

4.3/2.2

Gradeability

/

30%

Pressure of prime valve

MPa

22

Pressure of travel system

MPa

22

Pressure of swing system

MPa

11

Pressure of pilot system

MPa

3.9

Oil Capacity

Fuel tank capacity

L

18

Hydraulic tank capacity

L

17

Engine oil capacity

L

3.8

Appearance size

Overall length

mm

3560

Overall width

mm

1240

Overall height

mm

2348

Width of platform

mm

990

Overall width of chassis

mm

990/1240

Width of crawler

mm

230

Working scope

Min. tail swing radius

mm

620

Max. digging height

mm

3475

Max. dumping height

mm

2415

Max. digging depth

mm

2290

Standard

Length of boom

mm

1690

Length of arm

mm

1100

Bucket capacity

m3

0.04
