16m XCMG Manufacturer Aerial Working Platform XG1612DC Lifting Table Mobile Scissor Lift XG1612DC

Chat Now 1 / EA (Min. Order)
Model: XG1612DC
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
16m XCMG Manufacturer Aerial Working Platform XG1612DC Lifting Table Mobile Scissor Lift XG1612DC

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

  • Weight:3350kg
  • Overall Dimension:2840*1250*2600mm
  • Table Size:2640*1120*1263mm
  • Max Lifting Height:15.7m
  • Rated Loading Capacity:230kg
  • Power:4.5kw
  • Lift Drive / Actuation:Electric Motor
  • Lift Mechanism:Scissor Lift
  • Model Number:XG1612DC
  • Brand Name:XCMG
  • Place of Origin:Xuzhou, Jiangsu, China
  • Certification:CE/ISO9001

Specifications

  • Weight:3350.000kg
  • Condition:New
  • Moving Type:Other

16m XCMG Manufacturer Aerial Working Platform XG1612DC Lifting Table Mobile Scissor Lift XG1612DC

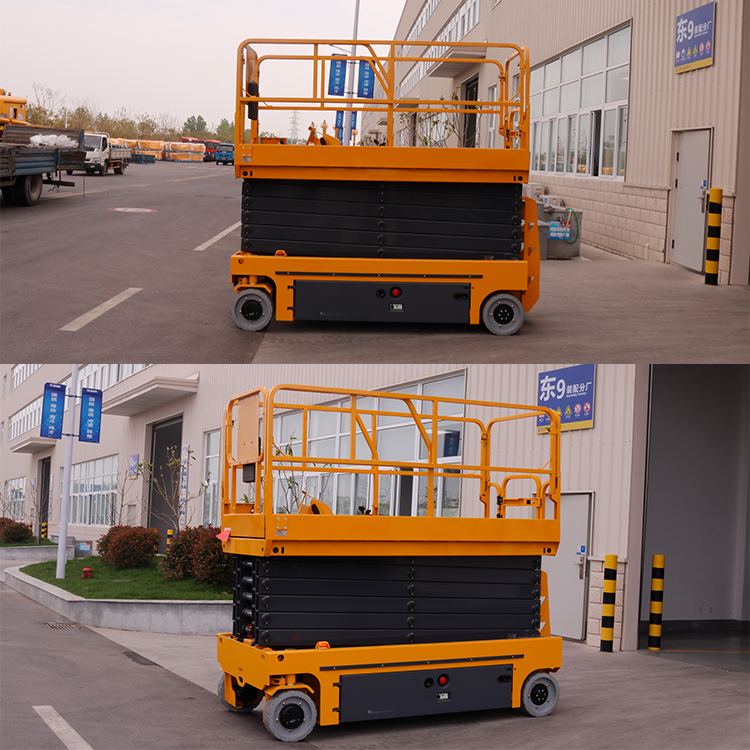

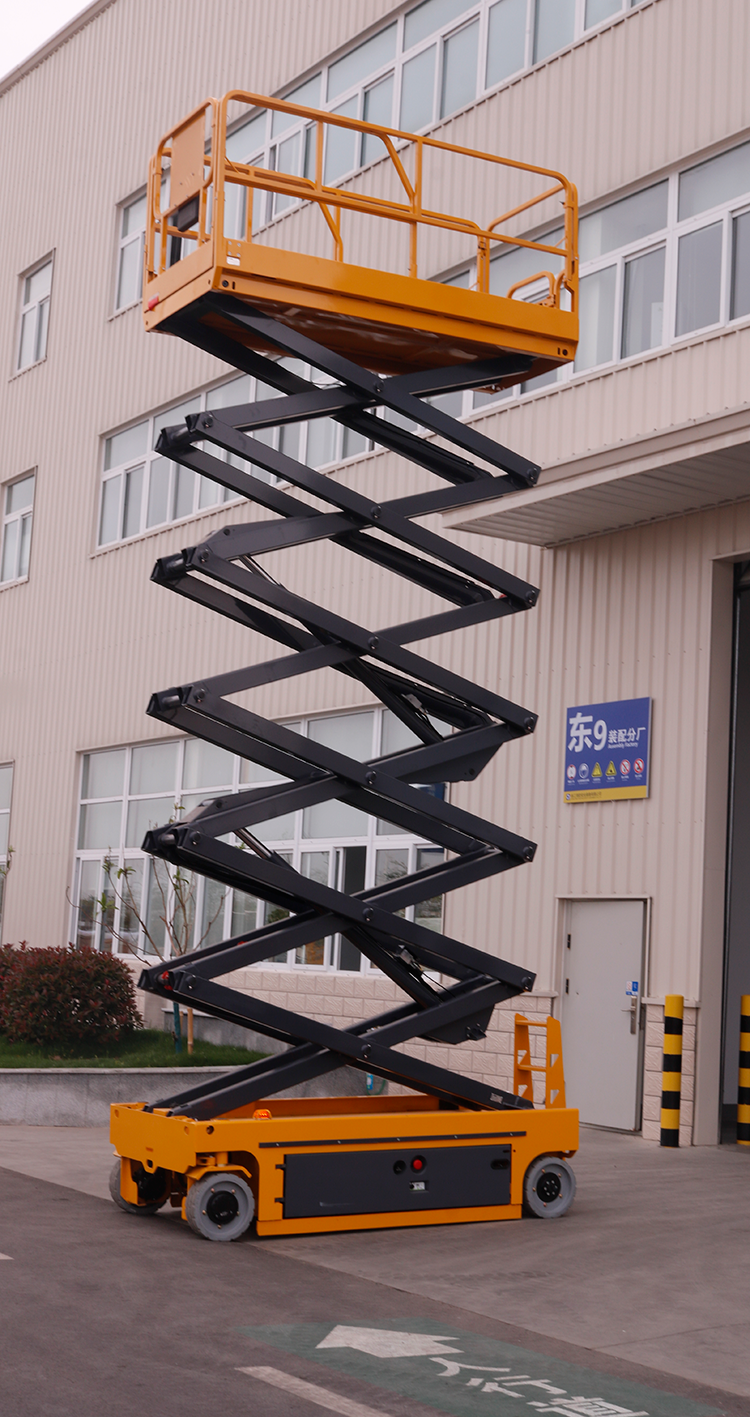

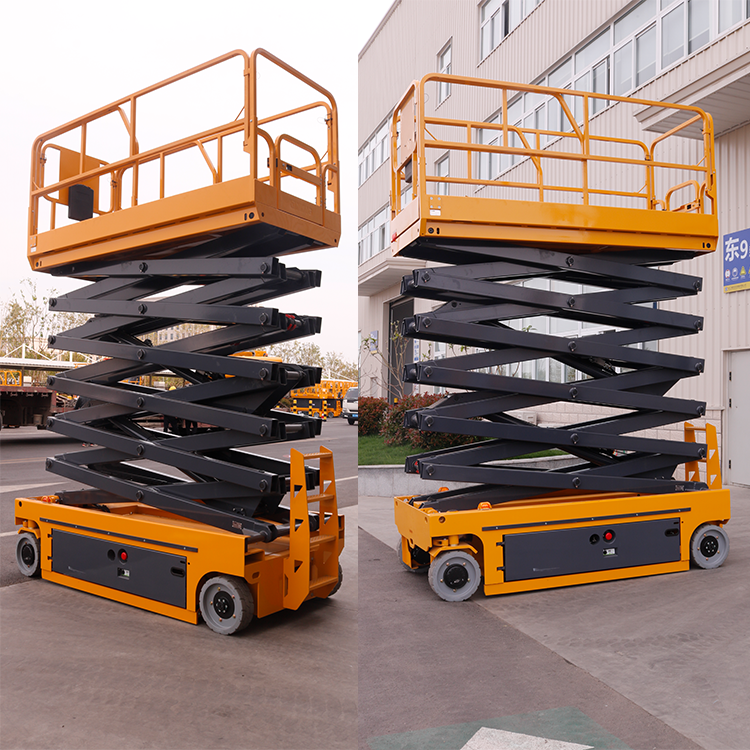

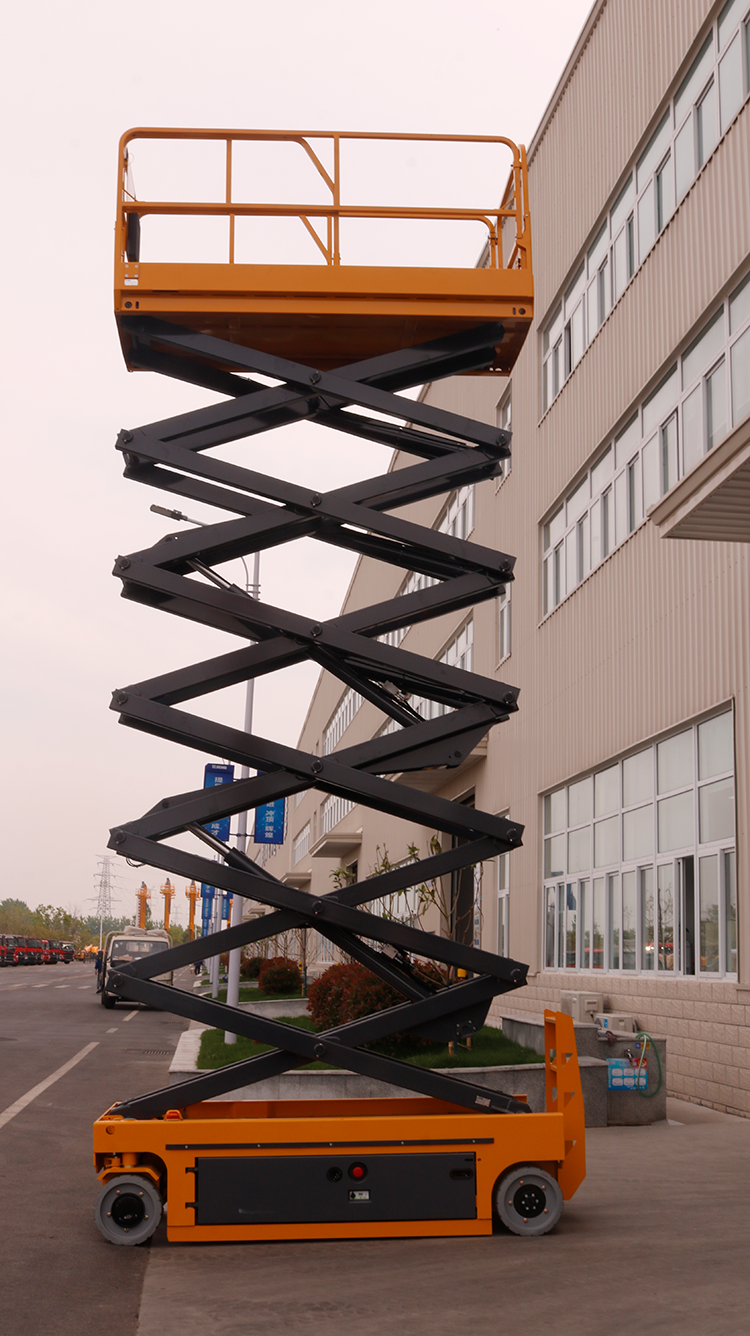

XCMG manufacturer 16m electric scissor lift platform XG1612DC.



XCMG electric scissor lift platform XG1612DC developed by XCMG has the work height at 15.7m, the vehicle width at 1.25m, the rated load at 230kg, max. gradeability at 25%.



This vehicle features compact structure, advanced performance, completed safety devices, especially suitable for construction. In addition. It is free of any pollution, with steady lifting / lowering, easy control and maintenance. Therefore, this kind of platforms are widely applied to warehouses, factories, airports, and train stations.



Advantages and features:



1.Effective and energy-saving electric-drive system features zero emission and low noise, together with the traceless tires, enabling this machine easily to work in enclosed environments such as office building, hospitals and schools and minimizing the effect on environment.

2.Active protective mechanism such as pothole protective mechanism and the self-developed safety control system feature the humanized design and the rich options, meeting the customer needing for safety, reliability and intelligence.

3.Work platform is able to extend out, enlarging the work space, together with the foldable fence making the transportation easier.

4.“Zero Turning Radius” is unique and enable machine to corner in narrow room.

5.Max. payload at 230kg, leading the industry.

6.Maximum traveling speed 4km/h and 25% gradeability make the driving easier.



Item
Unit
Parameters
Dimensions (LxWxH)
mm
2840x1250x2600
Wheel base
mm
2240
Wheel track
mm
1123
Min. Ground clearance (pit protector lifting / decline)
mm
100/20
Platform dimensions(LxWxH)
mm
2640x1120x1263
Platform dimensions Platform extension length
mm
900
Vehicle center of mass position Horizonal distance from front axis
mm
1127
Vehicle center of mass position Height of center of mass
mm
720
Total weight
kg
3350
Max. Platform height
m
13.7
Min. Platform height
m
1.478
Max. Working height
m
15.7
Min. Turning radius (inner wheel / outer wheel)
m
0/2.65
Platform rated load
kg
230
Extension platform rated load
kg
115
Platform lifting time
s
65-82
Platform decline tine
s
61-80
Max. Walking speed (low position)
km/h
4.0
Max. Walking speed (high position)
km/h
0.8
Max. gradeability
%
25
Tilt warning angle(side / forward and backward)
°
1.5/3
Lifting /walking motor Rated power
kW
4.5/0.75
Battery Voltage
v
24
Battery Capacity
Ah
300
Battery Manufacturer
-

16m XCMG Manufacturer Aerial Working Platform XG1612DC Lifting Table Mobile Scissor Lift XG1612DC16m XCMG Manufacturer Aerial Working Platform XG1612DC Lifting Table Mobile Scissor Lift XG1612DC16m XCMG Manufacturer Aerial Working Platform XG1612DC Lifting Table Mobile Scissor Lift XG1612DC16m XCMG Manufacturer Aerial Working Platform XG1612DC Lifting Table Mobile Scissor Lift XG1612DC16m XCMG Manufacturer Aerial Working Platform XG1612DC Lifting Table Mobile Scissor Lift XG1612DC16m XCMG Manufacturer Aerial Working Platform XG1612DC Lifting Table Mobile Scissor Lift XG1612DC16m XCMG Manufacturer Aerial Working Platform XG1612DC Lifting Table Mobile Scissor Lift XG1612DC16m XCMG Manufacturer Aerial Working Platform XG1612DC Lifting Table Mobile Scissor Lift XG1612DC

Send your message to this supplier:

Email:
to:
XCMG E-commerce Inc.
Content:
/6000

Your inquiry content must be between 20 to 6000 characters.

Quantity:
/ Set
back to top
Response Time : Within 24 hours
XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
