18m XCMG Large Load XGA18ACK Mobile Electrical Articulating Boom Lift

Chat Now 1 / EA (Min. Order)
Model: XGA18ACK
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
18m XCMG Large Load XGA18ACK Mobile Electrical Articulating Boom Lift

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

  • Weight:8600kg
  • Overall Dimension:7575*2320*2350mm
  • Table Size:1800x760x1150mm
  • Max Lifting Height:18000mm
  • Rated Loading Capacity:256 kg
  • Lift Drive / Actuation:Electric Motor
  • Lift Mechanism:Articulated Lift
  • Model Number:2waZACK
  • Brand Name:XCMG
  • Place of Origin:Jiangsu, China

Specifications

  • Weight:8600.000kg
  • Condition:New
  • Moving Type:Other

18m XCMG Large Load XGA18ACK Mobile Electrical Articulating Boom Lift

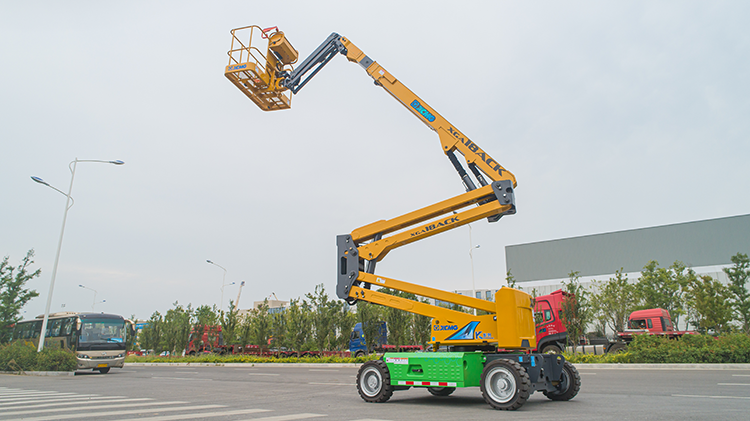

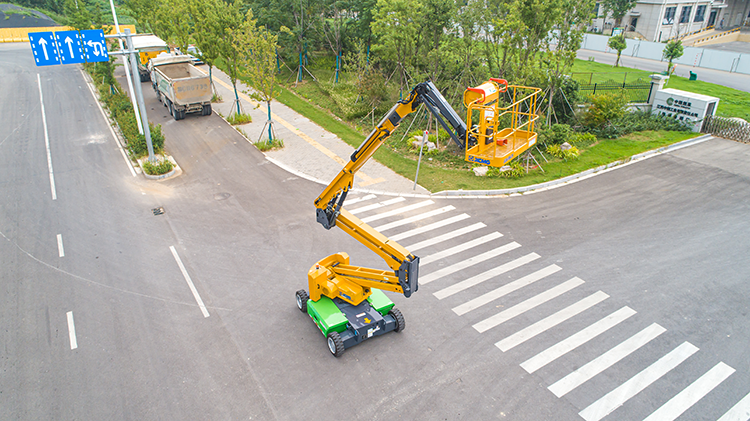

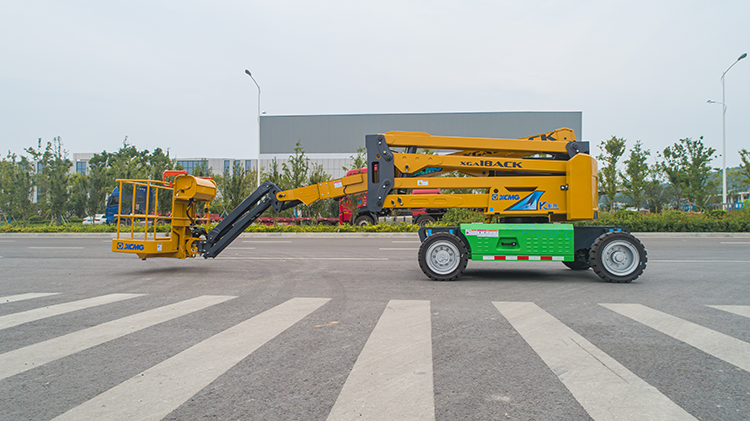

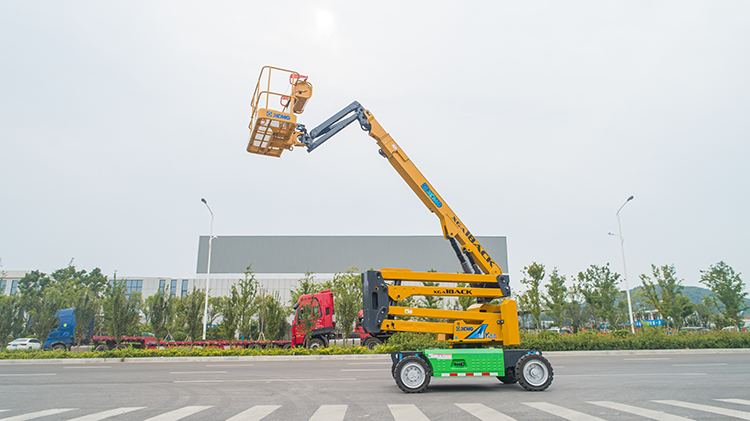

XCMG brand new large load XGA18ACK mobile 18m electrical articulating boom lift.



XCMG brand new large load XGA18ACK is a mobile articulated boom elevating work platform with compact layout, high obstacle-crossing efficiency, accurate design, powerful drive, and easy operations.



XCMG brand new large load XGA18ACK articulated boom lift features simple control, high safety and reliability, and high accuracy and efficiency and can extensively meet the users’ needs in diversified industries, including construction building, steel structure, petrochemical, stadium, and leasing industries.



Advantages and features:



1. The 256kg/350kg double high-load design meets the working needs under diversified working conditions.

2. The gravity lowering technology is applied for the boom to achieve higher stability and energy-saving.

3. The stepless speed regulation is applied to realize better operating comfort.

4. The non-power-supply design for the chassis improves the wading capability of the machine.







Item

Parameter

Overall dimensions

Length (Storage size)

7575mm

Length (Transport size)

7575mm

Overall width

2320mm

Overall height

2350mm

Work platform dimensions

Length Width Height

1800x760x1150mm

Wheelbase

2360mm

Maximum working height

18000mm

Maximum platform height

16000mm

Maximum working range

10100mm

Maximum carrying capacity

256 kg (Without limit)/ 350 kg (With limit)

Luffing range of 1st boom

0+65°

Luffing range of 2nd boom

-11+75°

Slewing angle of platform

160°

Jib vertical rotation - Downward

65°

Overall weight

8600kg

Traveling speed (Under stowed status)

4.8 km/h

Traveling speed (Lifting or expanding)

0.6 km/h

Minimum turn radius (Outer side)

4.7m

Minimum turn radius (Inner side)

/
