XCMG 2 ton Mini Garden Farm Excavators for sale
Summary
- Max Digging Radius:3900mm
- Machine Weight:1795kg
- Maximum Digging Depth:2290mm
- Maximum Digging Height:3475mm
- Bucket capacity:0.04m3
- Model Number:XE17U
- Brand Name:XCMG
- Place of Origin:Xuhzou, China
Specifications
- weight:1795.000kg
- Condition:New
- Moving Type:Crawler
- Engine:Kubota/Cummins
- Power:12/2300kw/rpm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 2 ton Mini Garden Farm Excavators.

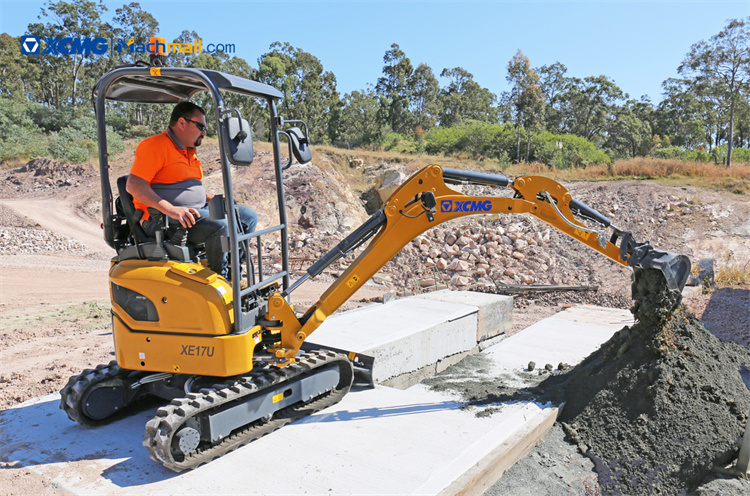

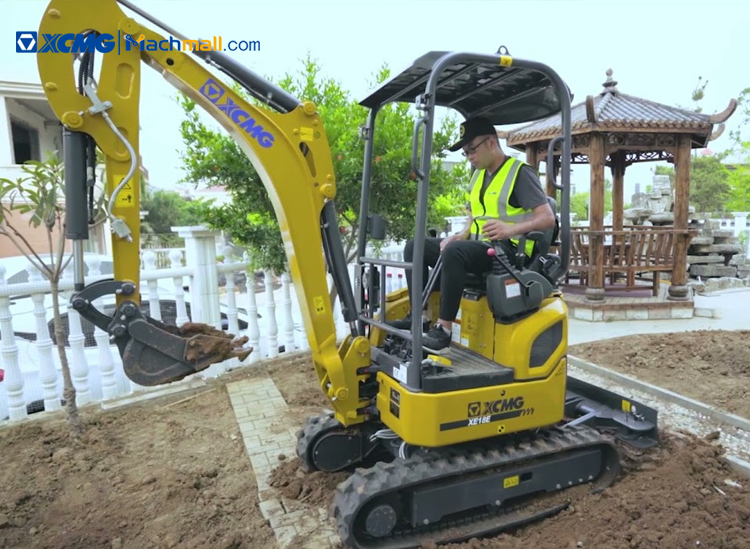

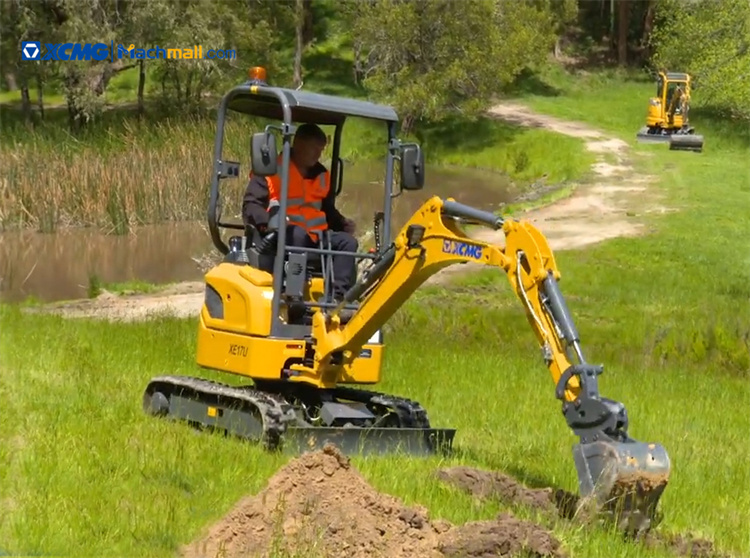

XCMG XE17U mini excavator is suitable for complex earth and rock working conditions, also suited to road, farming, municipal and other operations.

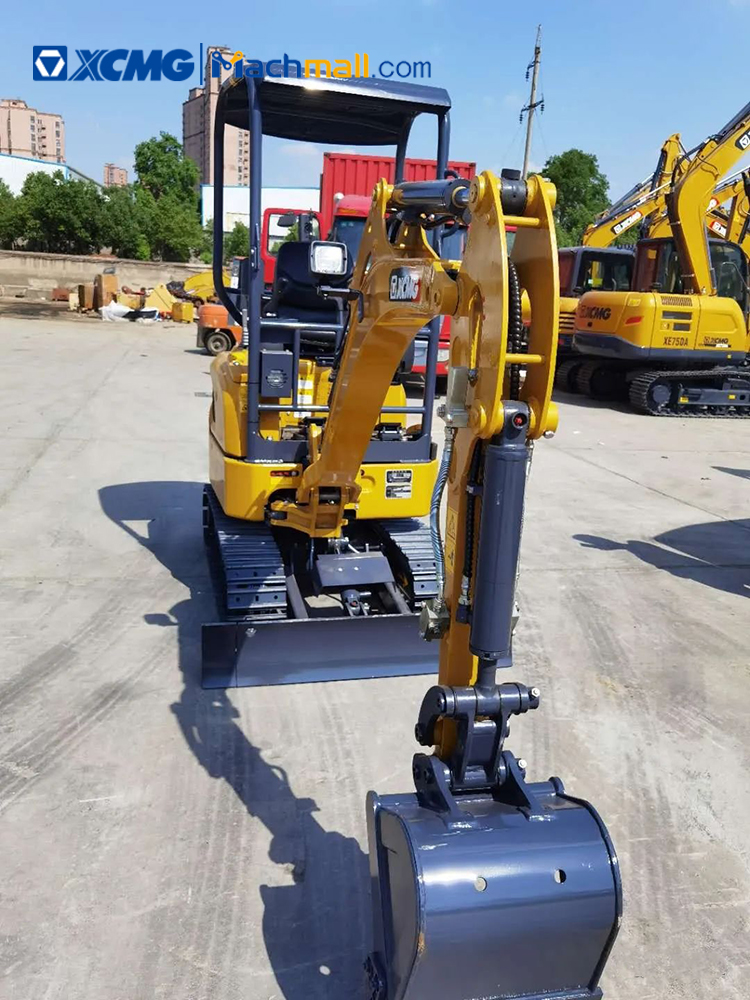

XE17U mini excavator with a powerful, energy-efficient Cummins engine, can breakout massive digging force with reinforced arm, stick and bucket.

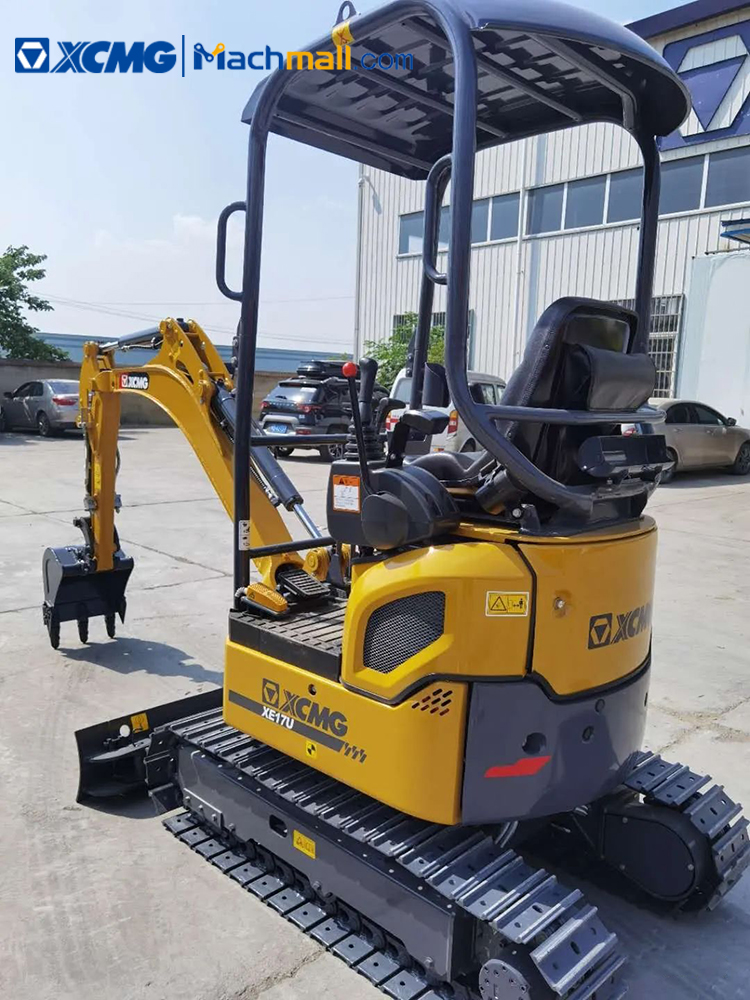

low operating costs, and superior efficiency. With zero-tail swing, even the tightest space becomes an efficient work place. It is also easily to to repair and maintain with fully open hood.

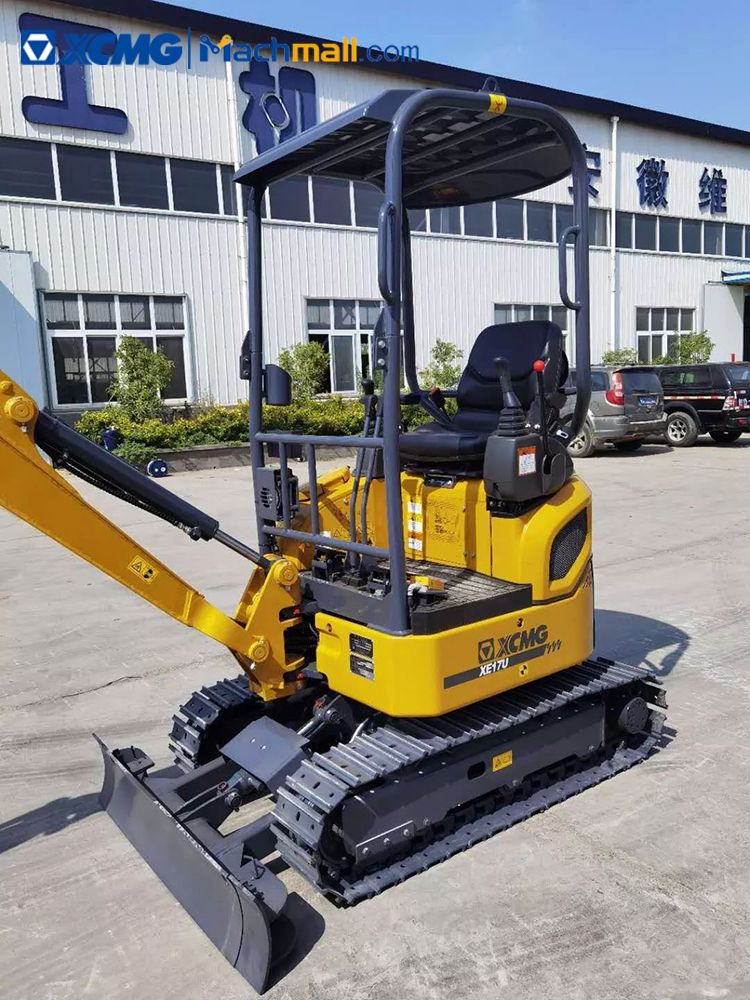

With a ROPS/FOPS canopy, the XE17U provides excellent visibility, stability, optimal comfort and safety. Lets you turn the canopy throughout its 360-degree turning radius.
Includes many advanced features: Zero-tail swing, hydraulic retractable undercarriage, boom swing, short and long arm and powerful digging forces.
|
Sales model |
Unit |
XE17U |
|
|
Operating weight |
Kg |
1795 |
|
|
Bucket capacity |
m³ |
0.04 |
|
|
Engine |
Model |
/ |
D902 |
|
No. of cylinders |
/ |
3 |
|
|
Output power |
kw/rpm |
12/2300 |
|
|
Maximum torque/speed |
N.m/rpm |
52.1/1800 |
|
|
Displacement |
L |
0.898 |
|
|
Main performance |
Travel speed |
km/h |
3.9/2.1 |
|
Swing speed |
r/min |
9.5 |
|
|
Gradeability |
° |
30 |
|
|
Ground pressure |
kPa |
28.5 |
|
|
Bucket digging force |
kN |
16 |
|
|
Arm digging force |
kN |
10 |
|
|
Maximum traction |
kN |
15.6 |
|
|
Hydraulic system |
Rated flow of main pump |
L/min |
64.4 |
|
Main safety valve pressure |
MPa |
21.6 |
|
|
Travel system pressure |
MPa |
21.6 |
|
|
Rotary system pressure |
MPa |
11 |
|
|
Pilot system pressure |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
17 |
|
Hydraulic tank capacity |
L |
18 |
|
|
Engine oil capacity |
L |
3.8 |
|
|
Appearance size |
Overall length |
mm |
3560 |
|
Overall width |
mm |
990/1240 |
|
|
Overall height |
mm |
2350 |
|
|
Width of platform |
mm |
990 |
|
|
Track length |
mm |
/ |
|
|
Overall width of chassis |
mm |
990/1240 |
|
|
Track width |
mm |
230 |
|
|
Length to center of rollers |
mm |
1270 |
|
|
Track gauge |
mm |
760/1010 |
|
|
Counterweight clearance |
mm |
450 |
|
|
Min. ground clearance |
mm |
145 |
|
|
Min. tail swing radius |
mm |
/ |
|
|
Track height |
mm |
/ |
|
|
Working scope |
Max. digging height |
mm |
3475 |
|
Max. dumping height |
mm |
2415 |
|
|
Max. digging depth |
mm |
2290 |
|
|
Max. vertical wall digging depth |
mm |
1750 |
|
|
Max. digging radius |
mm |
3900 |
|
|
Min. swing radius |
mm |
1550 |
|
|
Standard configuration |
Length of boom |
mm |
1828 |
|
Length of arm |
mm |
950 |
|
|
Bucket capacity |
m³ |
0.04 |
|
