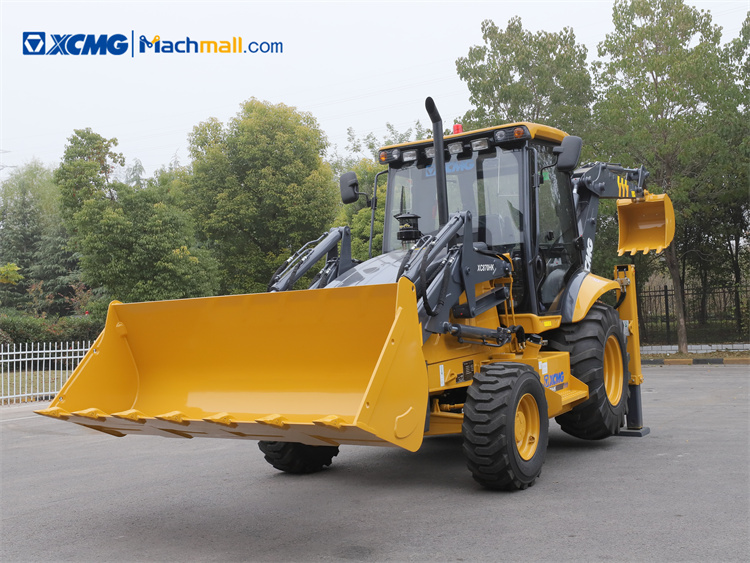

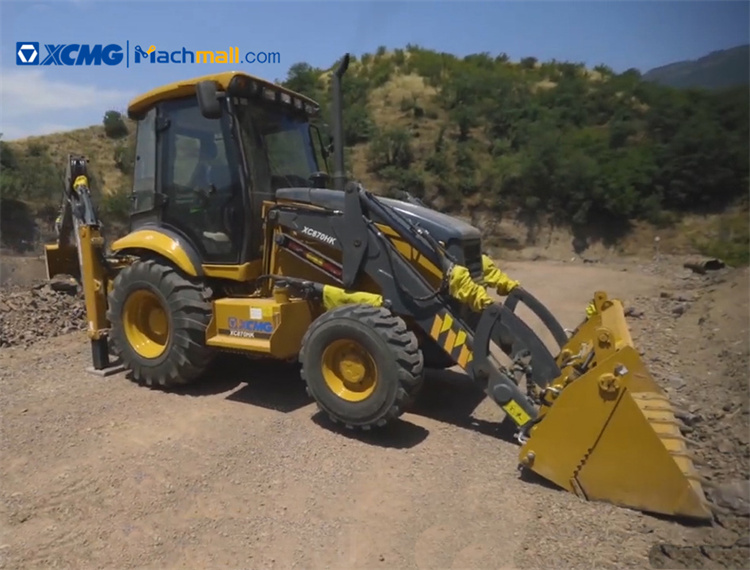

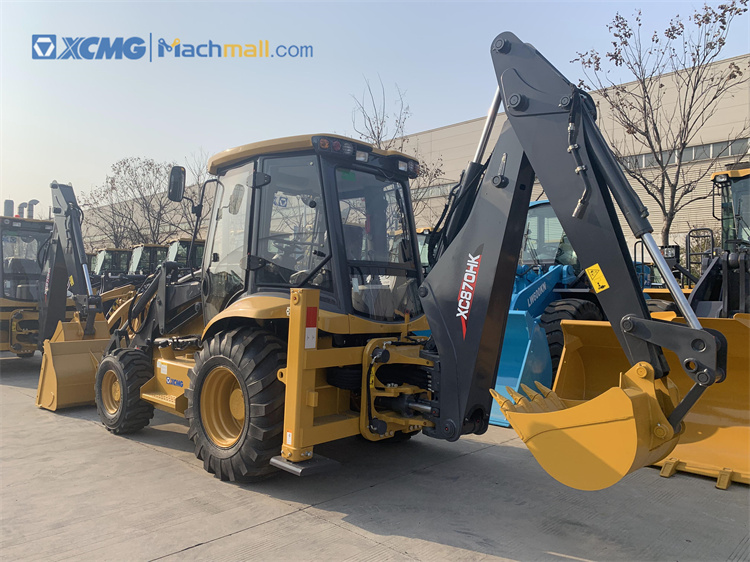

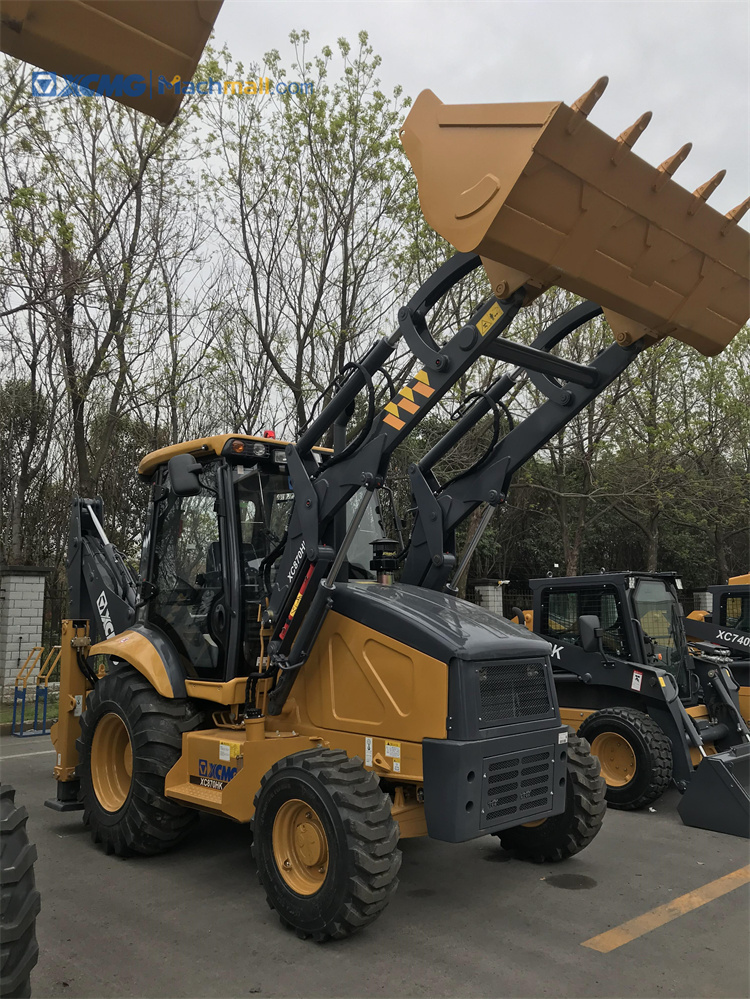

XCMG XC870HK 2.5ton Backhoe Excavator Loader with Catalog PDF

  • XCMG XC870HK 2.5ton Backhoe Excavator Loader with Catalog PDF
  • XCMG XC870HK 2.5ton Backhoe Excavator Loader with Catalog PDF
  • XCMG XC870HK 2.5ton Backhoe Excavator Loader with Catalog PDF
  • XCMG XC870HK 2.5ton Backhoe Excavator Loader with Catalog PDF
  • XCMG XC870HK 2.5ton Backhoe Excavator Loader with Catalog PDF
  • XCMG XC870HK 2.5ton Backhoe Excavator Loader with Catalog PDF

Share:
XCMG XC870HK 2.5ton Backhoe Excavator Loader with Catalog PDF
FOB for Loader Reference Price:Get Latest Price
$45000.00-$60000.00 1 / EA (Min. Order)
Model: XC870K
Engine: Cummins/Deutz
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG XC870HK 2.5ton Backhoe Excavator Loader with Catalog PDF
XCMG XC870HK 2.5ton Backhoe Excavator Loader with Catalog PDF
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
  • Product PDF
Summary
  • Rated Load:2500kg
  • Dimension(Long*Breadth*High):6075*2350*3520mm
  • Type:Backhoe excavator loader
  • Place of Origin:Xuzhou, China
  • Model Number:XC870K
  • Brand Name:XCMG
Specifications
  • weight:8200.000kg
  • Condition:New
  • Moving Type:Wheel
  • Max. digging force:63kn
  • Engine:Cummins/Deutz
  • Power:70-82kw

XCMG XC870HK 2.5ton Backhoe Excavator Loader with Catalog PDF

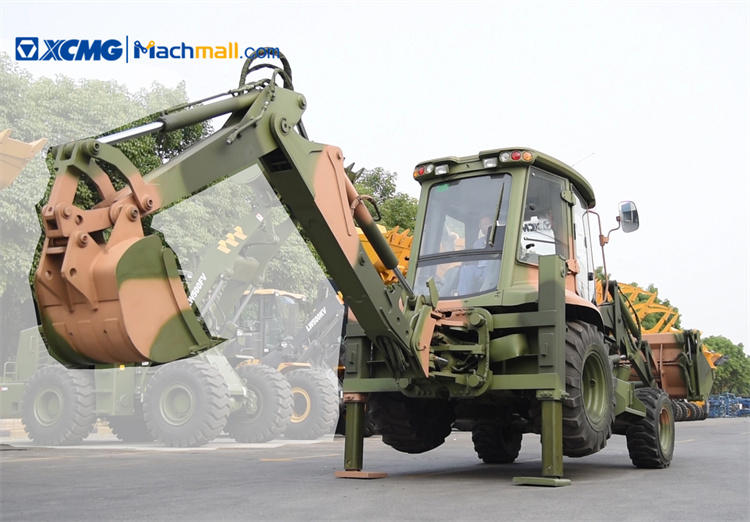

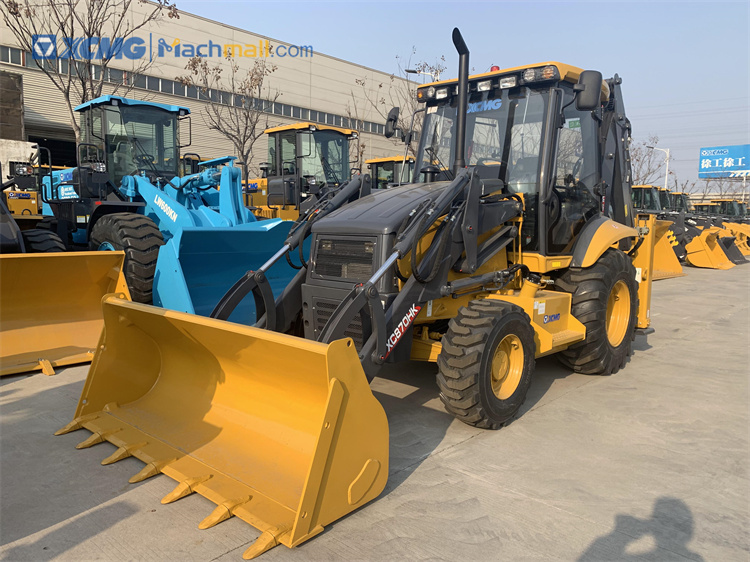

XCMG XC870HK 2.5ton Backhoe Excavator Loader.



XCMG 2.5ton backhoe excavator loader XC870HK can be applied with diversified environment adaptability technologies, including the high temperature, low temperature, highland, and heavily dusty environments, upon the user’s customization.



XC870HK backhoe excavator loader advantages and highlights:



1, The advanced structure and hinge points on the digging end as well as the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.



2, Digging End: the high strength structural design features high operation efficiency, with the breakout force up to 63kN.



3, Loading End: the design optimized and industry leading 8-link working device features good levelness of bucket and rapid operations.



4, The 360° panoramic view luxury cab with air conditioning system features large space, good sound and heat insulation, and good shock absorption. With openable side windows and rear window, the cab realizes broader visual field and comfortable operations.



XC870HK backhoe excavator loader optional attachments:



1, The digging end can be equipped with various attachments, including breaking hammer, post hole digger, vibrating tamper, hydraulic shear, and planer.



2, The loading end can be equipped with four-in-one bucket, manhole cover planer, snow shovel, and forks.



XCMG XC870HK 2.5ton Backhoe Excavator Loader with Catalog PDF

Description

Parameter Value

Unit

Chassis type



integrated









Drive style



4 drive/2 drive









Digging working device



middle









Outline dimensions(L×W×H)



6075×2350×3520







mm

Total weight



8200







kg

Max. travel speed



≥40







km/h

Wheelbase



2180







mm

Engine

Power

82

74

74.9

70

kw

Cummins

Cummins

Deutz

weichai



Supplier

tier 3

tier 2

tier 3

tier 2



Loading device

Bucket capacity

1







m3

Rated load

2500







kg

Max. breakout

66







kN

Max. discharge height

2770







mm

Max. discharge distance

755







mm

System pressure

24







Mpa

Digging device

Bucket capacity

0.25







m3

Max. digging radius

5420







mm

Max. digging depth

4320







mm

Max. digging force

63







kN

System pressure

24







Mpa
