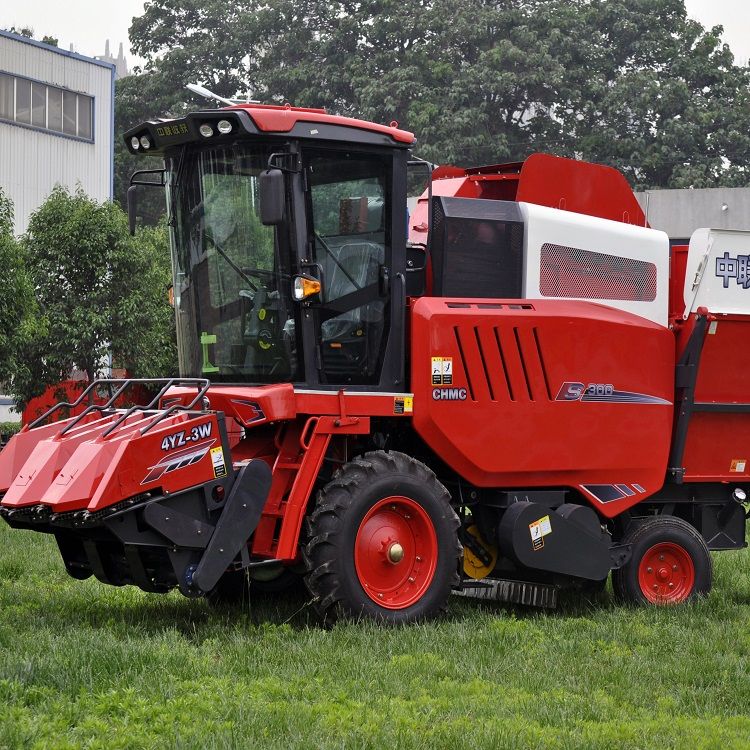

4YZ-3X
Specs & Compare
Details
Specifications
- Weight:4400.000kg
- type:3 rows
- power:103KW
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
| Pictures | NI |  |
||
| Model | Type No. | 3 rows | ||
| Structural style | self-propelled wheel type | |||
| Function | pick, peel, cut and shatter the straw, return shattered straw to field |
|||
| Size ( L, W, H ) | 6190*2300*3259 mm | |||
| Weight | 4400 kg | |||
| Gear box type | mechanical + stepless speed change(CVT) | |||
| Engine | model | 4H11, changchai diesel | ||
| power | 103KW | |||
| speed | 2300 r/min | |||
| Oil tank | / | |||
| Oil consumption | ≤20 kg/hectare | |||
| Performance | Cutting width | 1820 mm | ||
| Harvester rows | 3 rows | |||
| Picking roller type | double-screw type | |||
| Peeling roller number | 4 units (16 pieces) | |||
| Peeling roller type | trough type, rubber roller + iron roller | |||
| Rows distance | 500-700 mm | |||
| Work efficiency | 0.4 - 0.6 hectare/hour | |||
| Drive speed | 2.88-20.1 km/h | |||
| Working speed when harvesting | 3.31-6.59 km/hour | |||
| Max unloading height | 1780 mm | |||
| Minimum ground clearance | 290 mm | |||
| harvest moisture required | 20%-30%(corn grain), ≤60%(corn straw) | |||
| corn ear height | ≥450mm | |||
| Transverse and longitudinal slope required | ≤8° | |||
| Total loss rate | ≤4 % | |||
| Seed damage rate | ≤1 % | |||
| Peeling rate | ≥85 % | |||
| Straw crushing rate | ≥85 % | |||
| Impurity rate | ≤1.5 % | |||
| Stubble height | ≤100mm | |||
| Grain unloading way | hydraumatic side dumping | |||
| Grain tank capacity | 1.7m³ | |||
| Straw crushing and returning machine | 1JHY-185, 1750mm width | |||
| Wheel | Type of drive | 2 wheels drive | ||
| Wheel distance | guide | 1458 mm | ||
| drive | 1660 mm | |||
| Tyre size | guide | 10 - 15 | ||
| drive | 13.6 - 24 | |||
| Min.radius of curve | left turn | 6250 mm | ||
| right turn | 6200 mm | |||
Certified for 3 years
Rating
Response Time
24h
Year of establishment
Zhengzhou Zhonglian Harvest Machinery Co., Ltd is a professional combine harvester manufacturing company which integrates product research, spare parts producing, complete machine assembling and product after-sale service. The company was founded in 1995
