Summary
- Rated Load:3 ton
- Dimension(Long* Breadth * High):7450*3320*2550mm
- Type:wheel
- Place of Origin:XUZHOU,CHINA
- Brand Name:XCMG
- Certification:CE
Specifications
- Weight:11200.000kg
- Engine Brand:SHANGCHAI
- Rated Load:1-2 ton
- Bucket Capacity:0.5 - 2m³

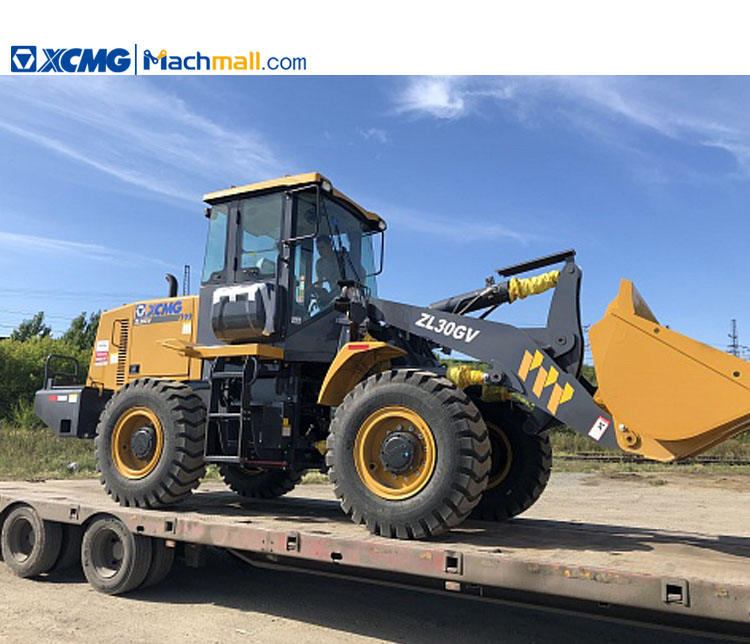

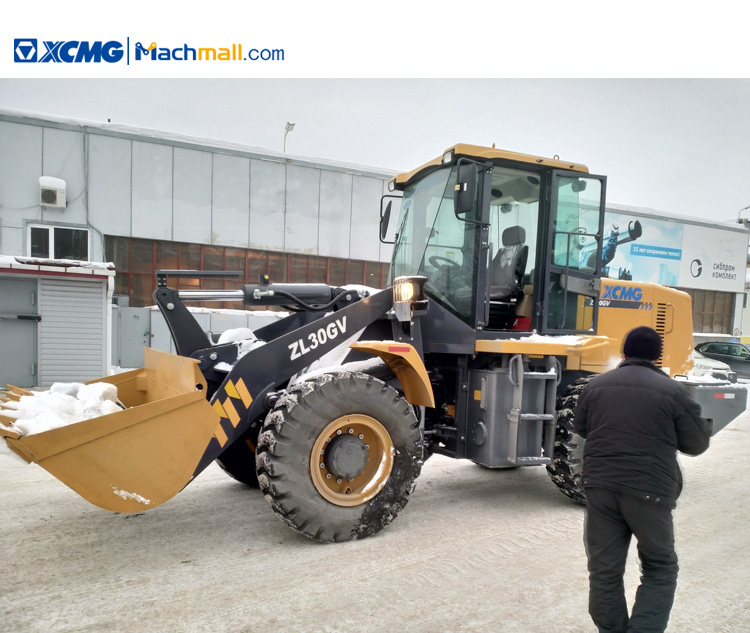

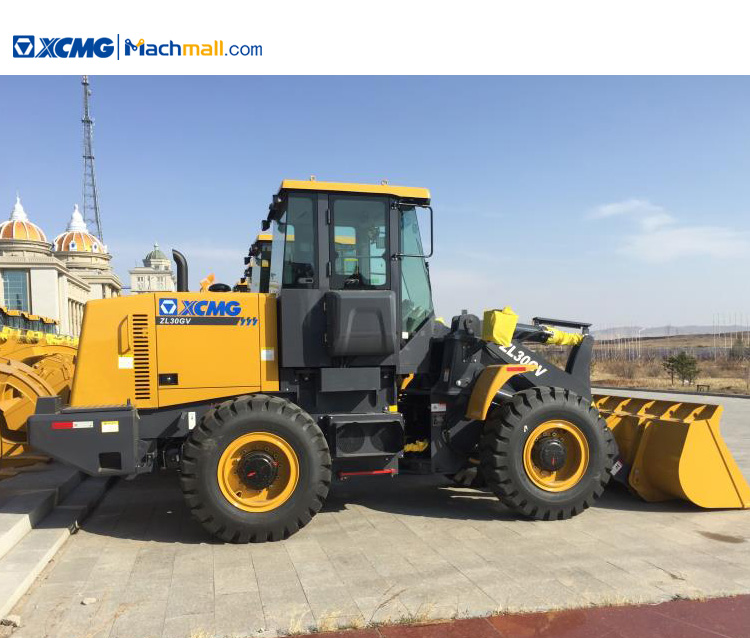

XCMG 3 ton wheel loader ZL30GV with CE.
XCMG 3 ton wheel loader ZL30GV features higher quality reliability, higher operating economy, higher operating comfort, more convenient maintenances, high energy-saving and efficiency, and high cost-performance, with the overall performance remarkably improved and the machine vibration and noise significantly reduced.
1. The three-stage desert air filter is applied to adapt to dusty working conditions.
2. XCMG 3 ton wheel loader ZL30GV Engine features the advantages of high reliability, high adaptability, and low fuel consumption and emission and can be equipped with optional low temperature starter.
3. Transmission features the advantages of high reliability, long life, high drive efficiency, handy gearshifts, and stable engagement.
4. The electric system adopts the fully-sealed connectors to significantly improve the dust-proof and water-proof performances.
5. All hinges are made of special materials with special heat treatment processes, featuring high strength, good wear resistance, and long life.
6. The high-position dumping and leveling indicator and the transportation position stop block are provided to reduce the splashing of material during operations.
7. The all-new digital combination instruments incorporate the malfunction diagnosis and warning functions and the joysticks are easily accessible to ensure comfortable and handy operations of the machine.
8. The large swing angle of the rear axle can effectively avoid the suspending of wheels in the air while working on bumpy roads. The fuel tank guard plate is added to prevent the deformation of fuel tank under severe operating conditions.
|
Parameter |
|
Value |
|
Rated bucket capacity (m3) |
|
1.8 |
|
Rated load capacity (kg) |
|
3000 |
|
Operating mass (kg) |
|
11200±200 |
|
Dumping height (mm) |
|
2930 |
|
Dumping reach (mm) |
|
1010 |
|
Wheelbase (mm) |
|
2900 |
|
Wheel tread (mm) |
|
1850 |
|
Overall length (mm) |
|
7450 |
|
Overall height (mm) |
|
3320 |
|
Bucket width (mm) |
|
2550 |
|
Maximum breakout force (kN) |
|
130 |
|
Maximum traction force (kN) |
|
100 |
|
Minimum turning radius (tire center) (mm) |
|
5170 |
|
Lifting time of boom (S) |
|
5 |
|
Total cycling time (S) |
|
8.8 |
|
Engine |
Model |
SC7H130G3 |
|
|
Rated power (kW) |
97 |
|
|
Rated speed (r/min) |
2200 |
|
Tire specification |
|
17.5-25-12PR |
|
Maximum traveling speed (km/h) |
1st forward/reverse gear |
6.5 |
|
|
2nd forward/reverse gear |
11.5 |
|
|
3rd forward/reverse gear |
25 |
|
|
4th forward gear |
36 |
