China 4 Wheel Drive Backhoe Loader Digger XT870 specs
FOB for Loader Reference Price:Get Latest Price
$40000.00-$50000.00 1 / EA (Min. Order)
Model: XT870
Engine: Cummins / Deutz
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
China 4 Wheel Drive Backhoe Loader Digger XT870 specs
China 4 Wheel Drive Backhoe Loader Digger XT870 specs
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
Summary
  • Rated Load:2500kg
  • Dimension(Long*Breadth*High):7400*2350*3450mm
  • Type:4 wheel drive backhoe loader digger
  • Place of Origin:Xuzhou, China
  • Model Number:XT870
  • Brand Name:XCMG
Specifications
  • weight:8100.000kg
  • Condition:New
  • Moving Type:Wheel
  • Bucket capacity:1m3
  • Max. digging depth:4250mm

China 4 Wheel Drive Backhoe Loader Digger XT870 specs

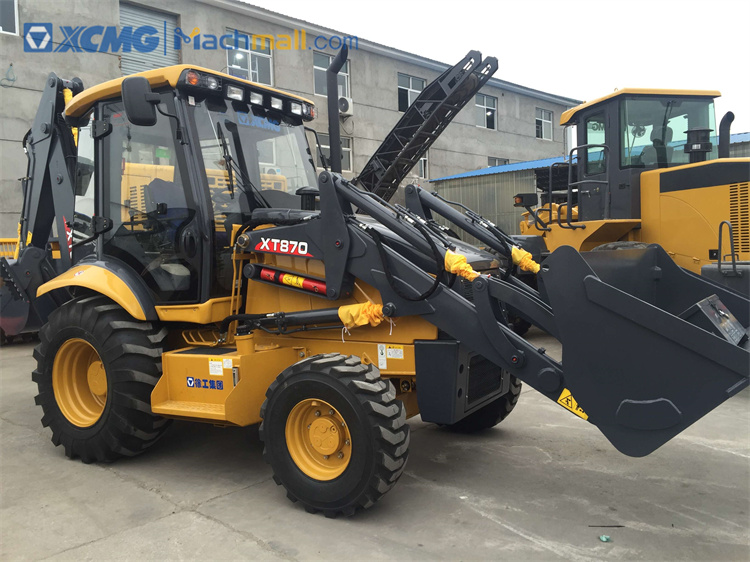

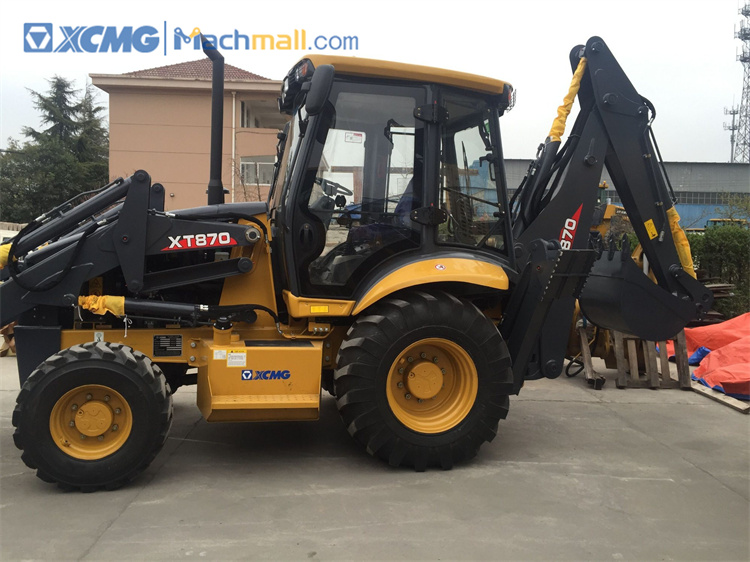

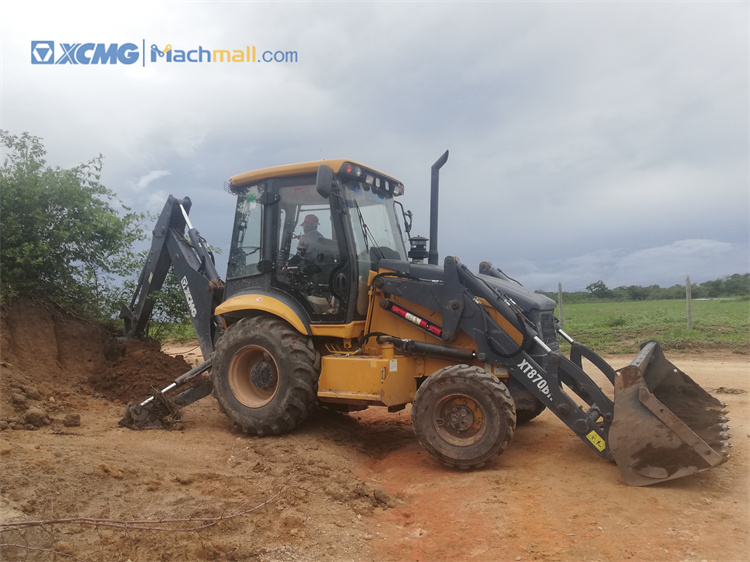

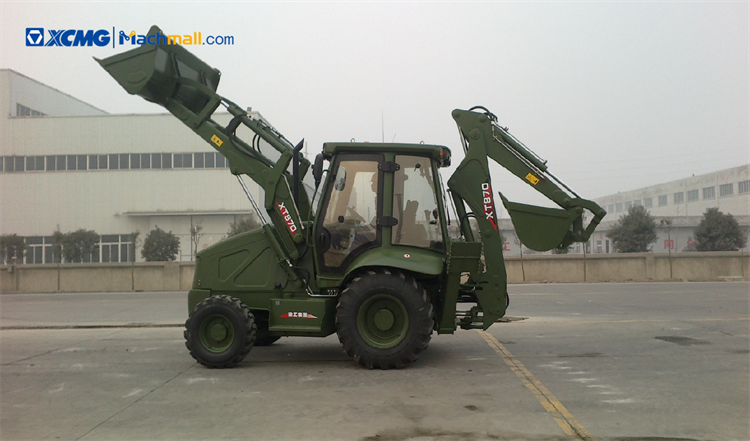

China 4 Wheel Drive Backhoe Loader Digger XT870.

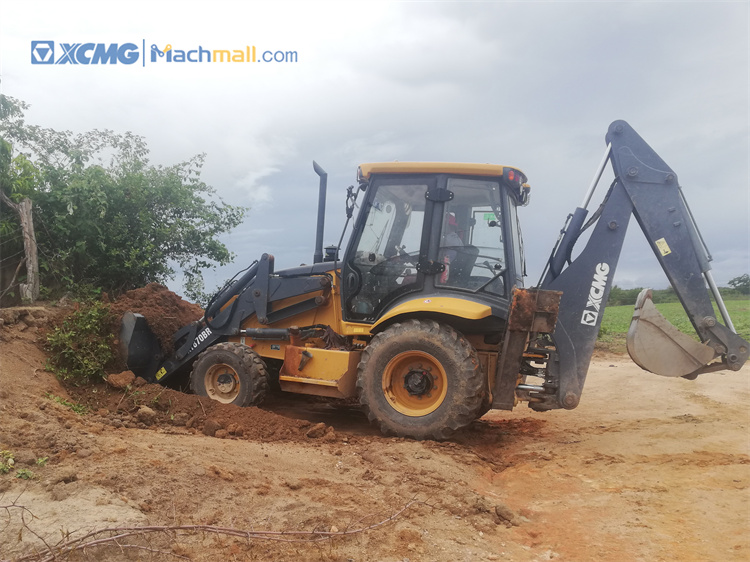

XT870 backhoe loader digger is one kind of multifunctional construction machinery that integrates the digging and loading and is applicable for multiple operations, including digging, loading,handing and land grading.



XCMG XT870 backhoe loader adopts an integral frame with compact layout and small turning radius to meet the construction requirements of various harsh working conditions.



Advantages and Highlights:



1. Engine:

Euro III emission Cummins QSB4.5 engine (82kW),

Euro Ⅱ emission Cummins B4.5 engine (74kW),

Weichai Deutz TD226B-4IG2 engine (70kW);



2. The XT870 backhoe loader adopts an integral frame, four-wheel/two-wheel drive, front-wheel steering, and spread-wing outriggers. The overall design is compact and the bridge load distribution is reasonable.



3. Optional independent heat dissipation system, comprehensively balance engine water temperature, torque converter transmission oil temperature, hydraulic oil temperature, reasonable matching of heat dissipation parameters, and lowest energy consumption.



4. Fast speed, good off-road performance; good working stability, superior loading and digging operation parameters; a variety of work tools to choose from.

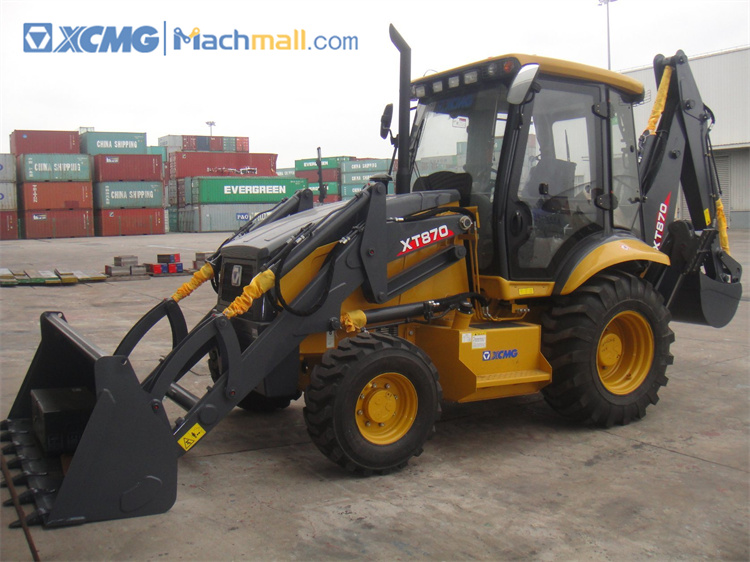

5. Loading working device: Eight-link loading working device, with good translational performance and large digging force.

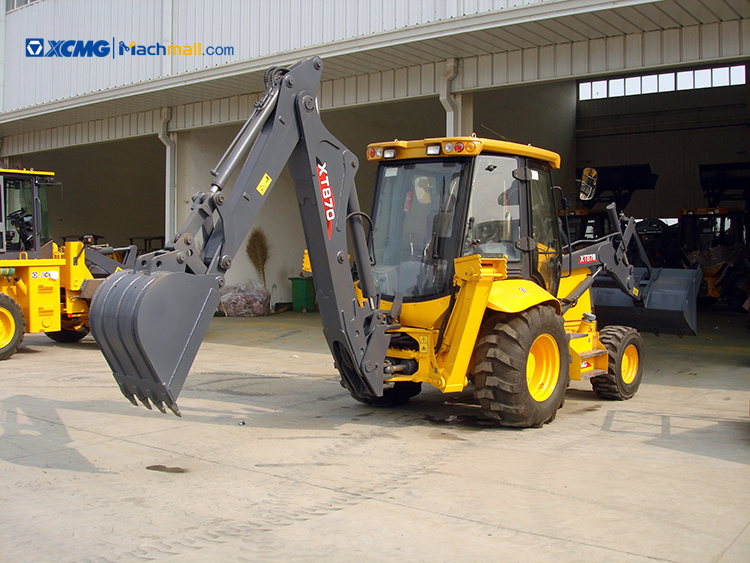

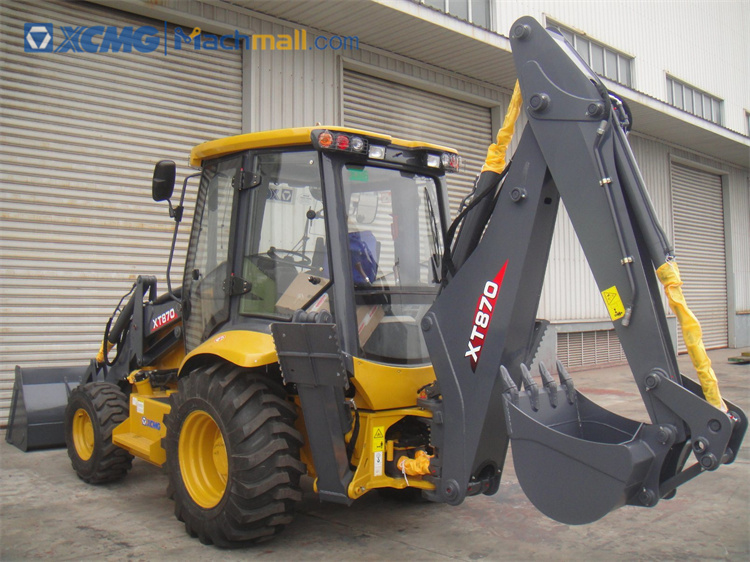

6. Excavation work device: high structural strength; large excavation depth and excavation radius.



7. Various attachments:

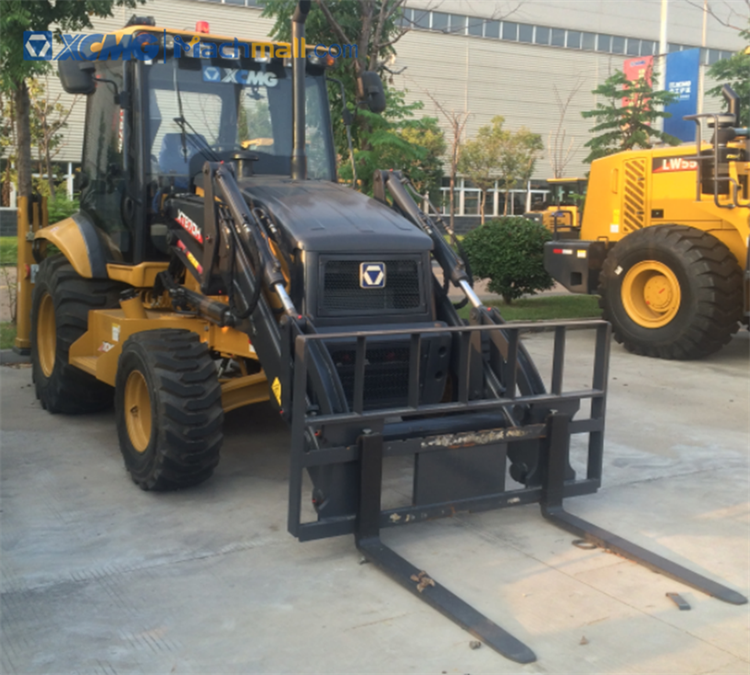

The loading end: can be equipped with four-in-one buckets, snow pushers, forks, sweepers, etc.;

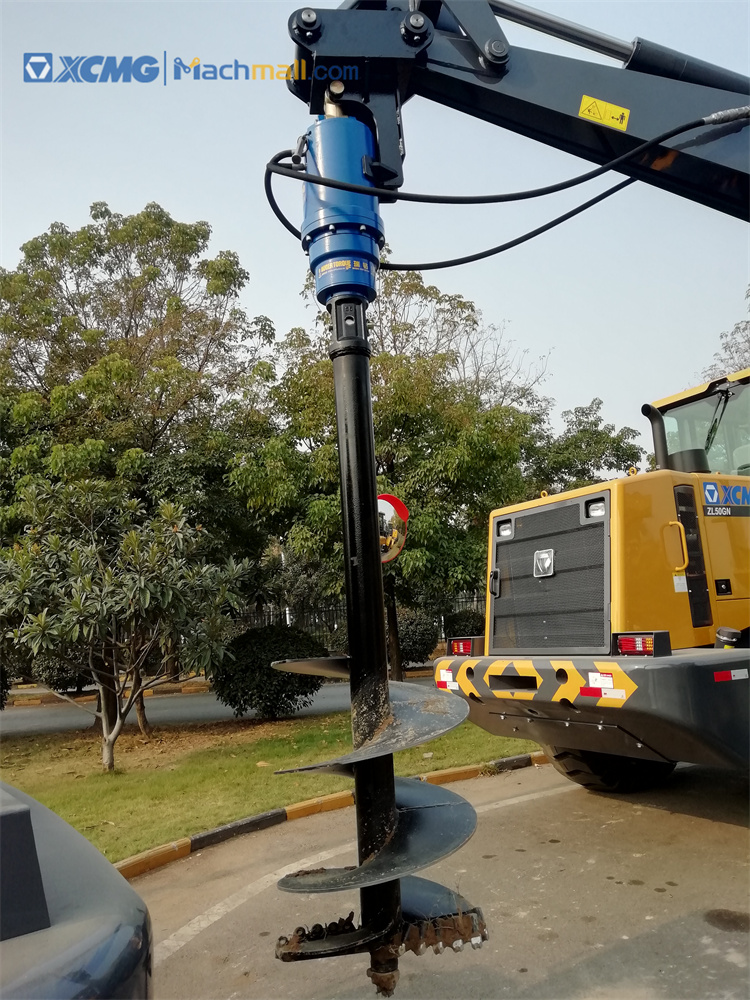

The excavation end: can be equipped with more than a dozen attachments such as breakers, augers, vibratory rammers, hydraulic shears, milling machines, and trenchers.



China 4 Wheel Drive Backhoe Loader Digger XT870 specs

Chassis type

integrated

Unit

Total weight

8100

kg

Overall dimensions (LxWxH)

7400*2350*3450

mm

Max. travel speed

40

Km/h

Max. gradient

20

°

Wheel base

2180

mm

Turning radius

3350

mm

Max. traction force

70

kN

Power

70-82

Kw

Bucket capacity

1

Rated load

2500

kg

Max. breakout

66

kN

Max. discharge height

2770

mm

Max. discharge distance

705

mm

Boom lifting time

≤5

s

Total cycle time

≤10

s

System pressure

24

Mpa

Bucket capacity

0.3

Max. digging radius

5500

mm

Max. digging depth

4250

mm

Max. digging force

51

kN

System pressure

24

Mpa
