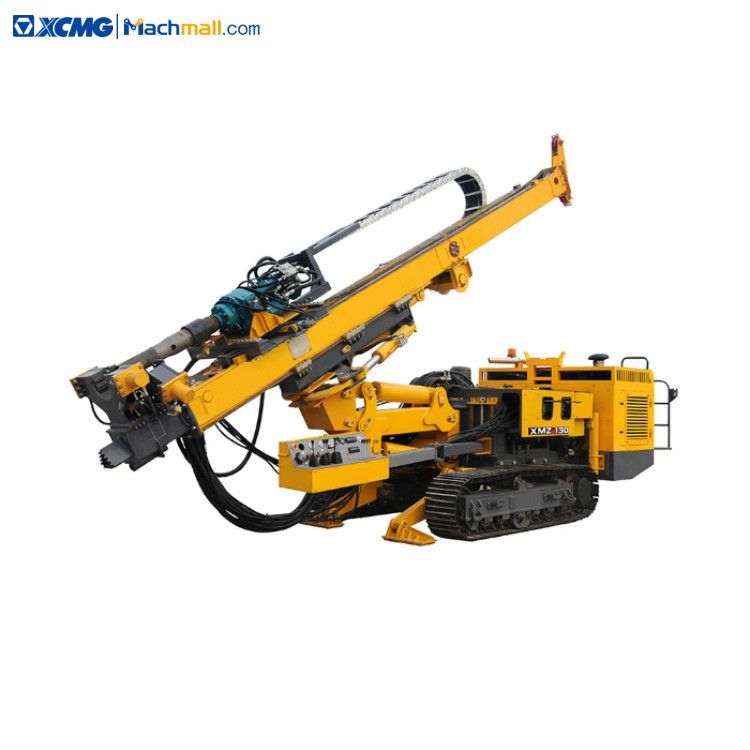

XCMG 93kW 8t Multifunction Double Rotary Head Crawler Anchor Drilling Rig Machine XMZ90 price
Summary
- Dimension(L*W*H):5210*1500*2650mm
- Weight:8ton
- Power(W):93kw
- Model Number:XMZ90
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
Specifications
- weight:8000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 93kW 8t Multifunction Double Rotary Head Crawler Anchor Drilling Rig Machine XMZ90 .
1. Tunnel slurry, pipe sheds, radial and lateral anchors, surface reinforcement and other construction can be achieved;
2. Clamps, drill masts, power head components and other modular design, to meet the multi-configuration quick switch;
3. Double-back transformation of the agency design, construction operation positioning efficiency is high, a wide range;
4. Electro-liquid dual-control walking control, convenient transition walking;
5. Swingable operator’s station design, precise construction operation;
6. Optional engine warm-up system to ensure low-temperature start-up capacity;
7. Optional ahead of the geological forecasting system, real-time monitoring and storage of drilling data.
|
PARAMETER SPARE |
|
|
|
Item |
Unit |
Parameter |
|
Engine |
|
|
|
Model |
- |
QSF3.8t3TC125 |
|
Power |
kW/rpm |
93kW/2200rpm |
|
Moter |
|
|
|
Power |
kW |
/ |
|
Operating Voltage |
V |
/ |
|
Rotary drive |
|
|
|
Maximum torque |
kNm |
9.6 |
|
Maximum speed |
r/min |
95 |
|
Feed system |
|
|
|
Maximum hoist force |
kN |
50 |
|
Maximum feed force |
kN |
50 |
|
Maximum hoist speed |
m/min |
54 |
|
Maximum feed speed |
m/min |
14 |
|
Feed stroke |
mm |
2000 |
|
Undercarriage |
|
|
|
Overall width |
mm |
1500 |
|
Overall length |
mm |
2300 |
|
Clamps |
|
|
|
Range of clamping |
mm |
60-225 |
|
Maximum horizontal drilling height |
mm |
3050 |
|
Drill pipe diameter |
mm |
73 89 102 114 |
|
Weight |
t |
8 |
|
Transport size |
mm |
5210*1500*2650 |
