Gaodetec GGP800/1200/200PI-D Full Hydraulic Cement Grout Injection Plant for Soil and Rock Grouting



GGP800/1200/200PI-D
Specs & Compare
Details
Specifications
- Weight:2460.000kg
- Model:GGP800/1200/200PI-D
- Diesel engine (Air cooling, Deutz technology):55kw, 2500r/min
- Dimensions:3200*2200*2000mm
- Weight :2460kg
- Mixer Capacity:800L
- Agitator Capacity:1200L
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Description

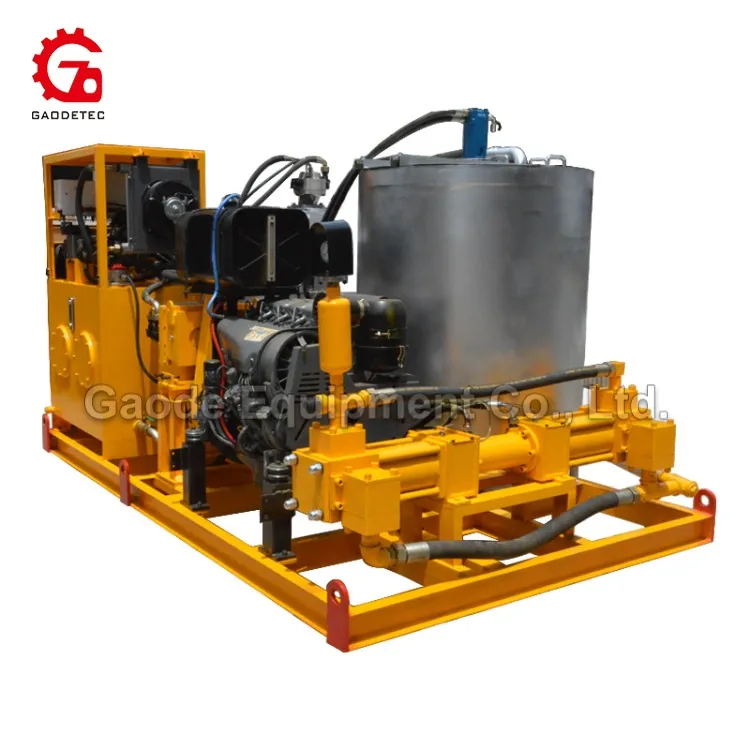

Gaodetec GGP800/1200/200PI-D Full Hydraulic Cement Grout Injection Plant for Soil and Rock Grouting is a combination of mixer, agitator and grout pump in one plant. It is mainly used in highway, railway, hydropower, construction, mining and other ground and underground construction.
High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting plant is full hydraulic drive with diesel engine. Grouting pressure and displacement is step-less adjustable. Compact size and it is easy to operate. It also takes up a small space.
The features and advantages of this machine are as follows:
55KW air cooling diesel engine as the power, it is suitable for field construction
Pump output is 0-200L/min. Pump pressure is 0-5Mpa. All step-less adjustable.
Simple structure, light weight, easy maintenance
Double-cylinder and single-acting grouting pump: grouting continuous and pulse small.
The latest improvement design of valve chamber: It is quickly convenient cleaning.
Grouting pump outlet is equipped with buffer. This can further reduce the grouting pressure fluctuations.
Delivery with special tools. This can ensure change the pistons rapidly, reduce the time of replacing.
Less spare parts ensure low maintenance costs
High speed vortex mixer ensures mix quickly and evenly.
Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate
Mixer and agitator use Stainless steel material.

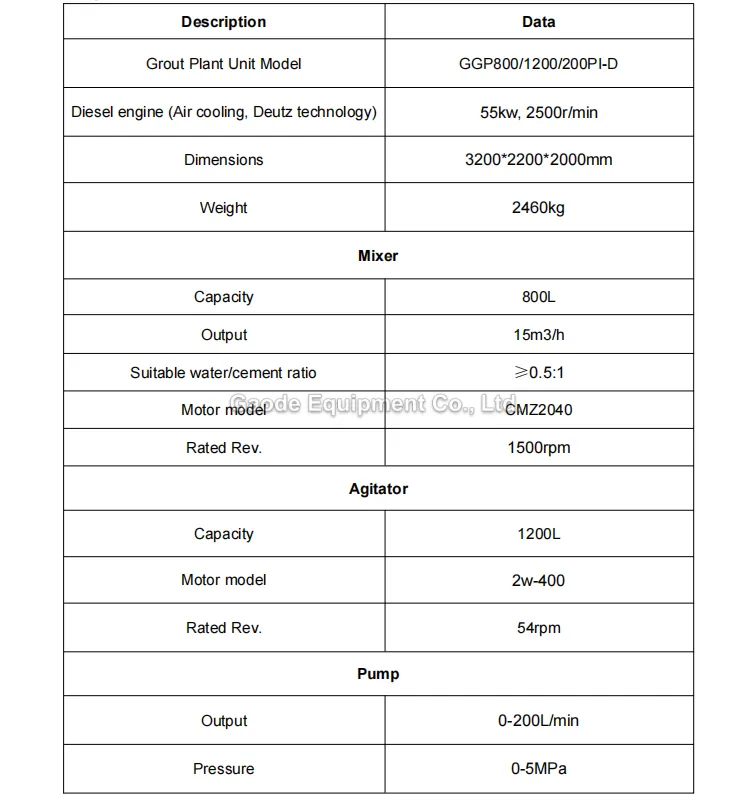

Parameters

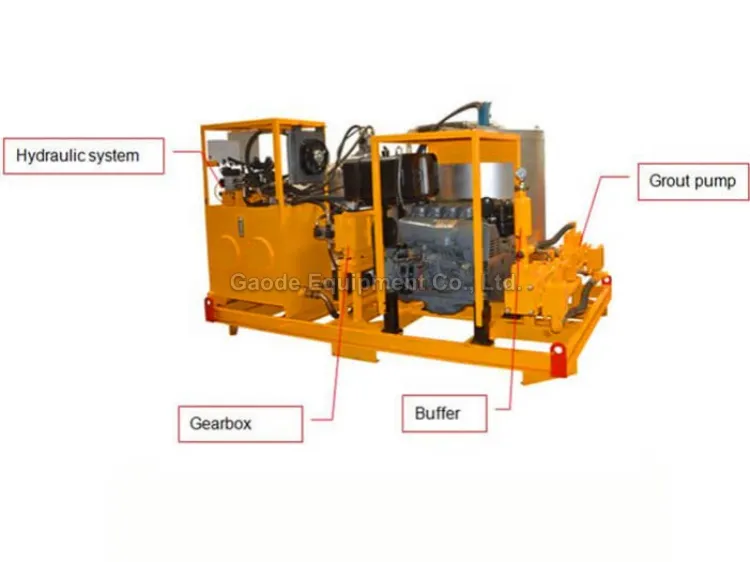

Details Images

Application
Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting;
Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, rock grouting;
Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement
Mine application - roadway reinforcement, backfill, waterproof grouting.
Acted as a grouting plant in the Pipe Jacking Machine

FAQ
1. Are you the manufacturer or a trade company?
We are the manufacturer for producing grout equipment.
And we have owned a trading company to do International Business,
So that:
1)-We can supply good service with professional international trade experience.
2)-The price is much more competitive.
2. Can you do the ODM or OEM? What is MOQ?
Yes, it is possible as discussed, MOQ: 1unit.
3. What about delivery time? How long can I get the machine after the order?
The production time is as fast as 30-60 working days if you customize the machine.
The standard machine in stock can be delivered as soon as possible after ordering.
4. How to pay for yourself?
50% down payment, then production starts, and the balance 50% paid before shipping.
If the machines are in stock, pay 100% then delivery.
Our Advantages
Packaging and Delivery





Contact Supplier
1. What is the project you are going to do?
2. What flow and pressure do you demand?
3. What's the water-cement ratio of the material you will mix and grout?
4. Regarding the engine, would you like an electric motor or a diesel engine? if electric motor, 3 phase, 380v, 50HZ is ok for you?
