Gaodetec GGP200/300/100PI-D Cement Grout Injection Pump Mixer Station for Foundation Repair Ground
GGP200/300/100PI-D
Specs & Compare
Details
Specifications
- Weight:2795.000kg
- Grout mixing plant type:GGP200/300/100PI-D
- Mixer Volume:200L
- Mixer production(w/c ratio=1):4m3/h
- Circulation capacity:1100l/min
- Suitable W/C Ratio:0.5 to 1
- Mixer hydraulic motor:1450rpm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Description

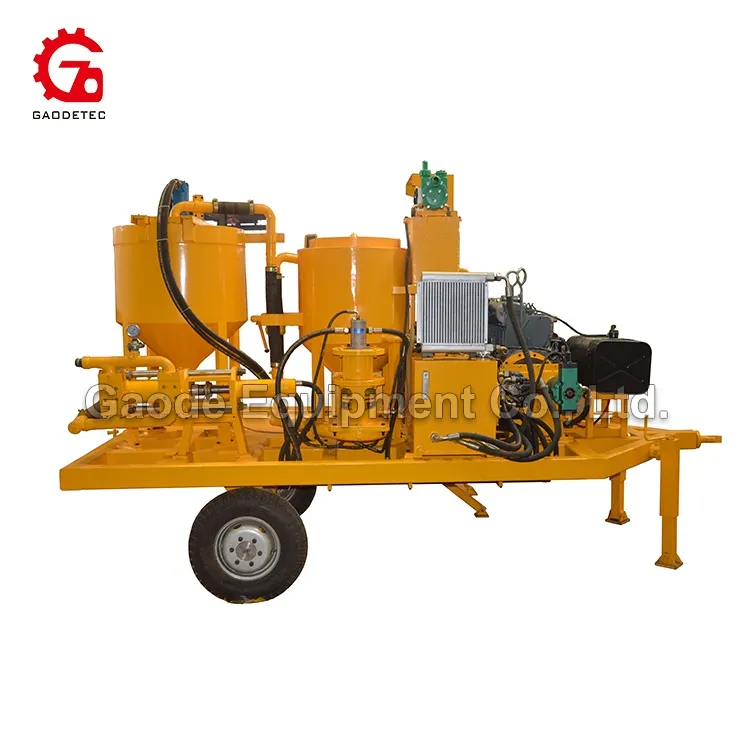

Gaodetec GGP200/300/100PI-D Cement Grout Injection Pump Mixer Station for Foundation Repair Ground is combination of mixer, agitator and hydraulic plunger grout pump in one plant. Mainly suitable for mixing and pumping water, cement, sand, bentonite, filler, clay power, silicates and other additives.
The features and advantages of this machine are as follows：
1. Deutz diesel engine.
2. It is combination of mixer, agitator and hydraulic grout pump in one base frame.

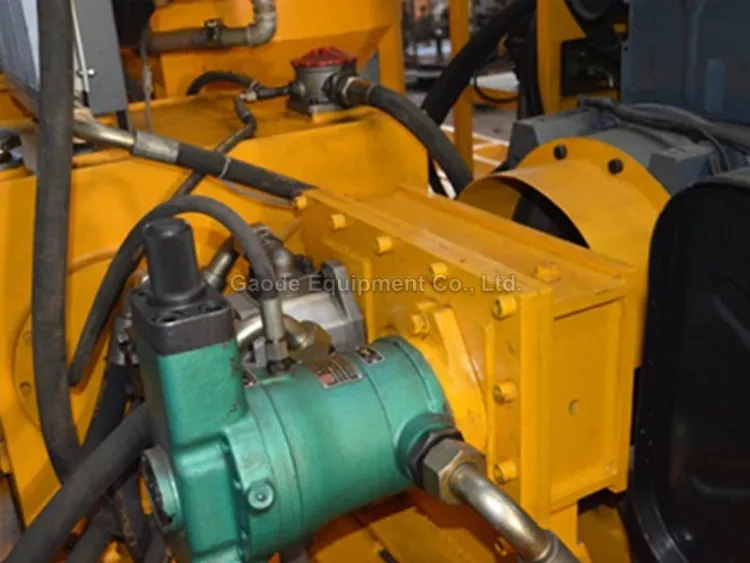

3. Yuken reversing valve for hydraulic system of grout pump.
4. Butterfly valve of mixer and agitator.
5. Linked switch between mixer and agitator.

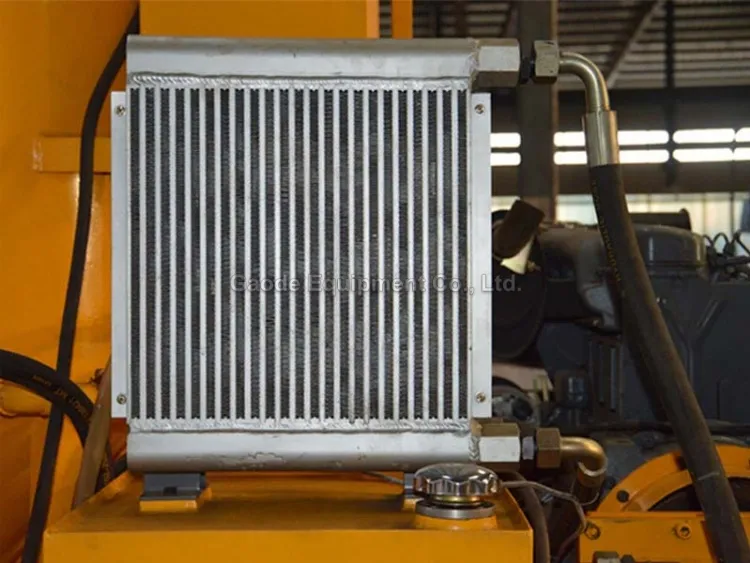

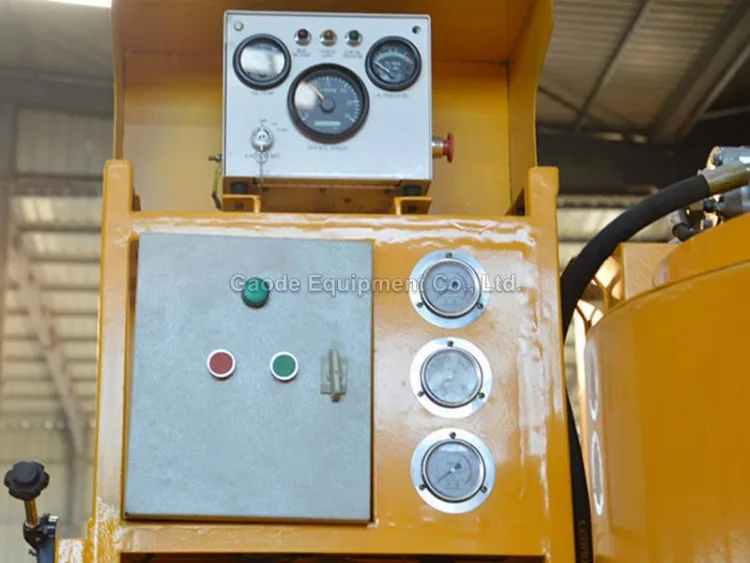

6. Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically.

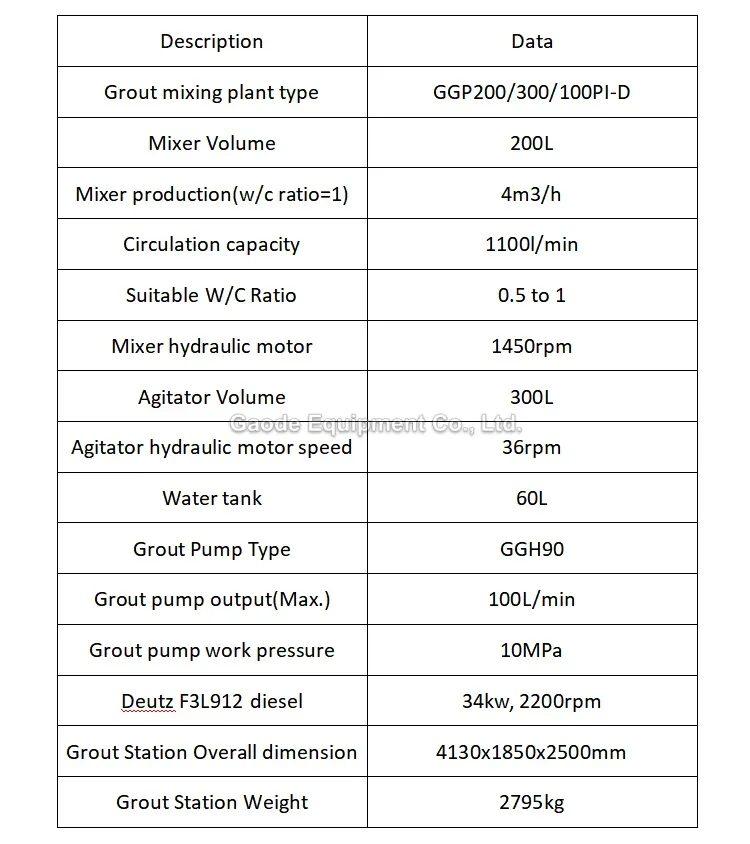

Parameters

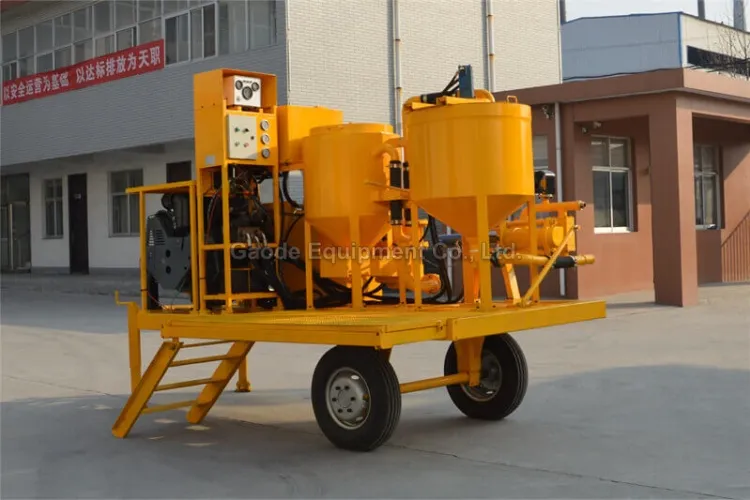

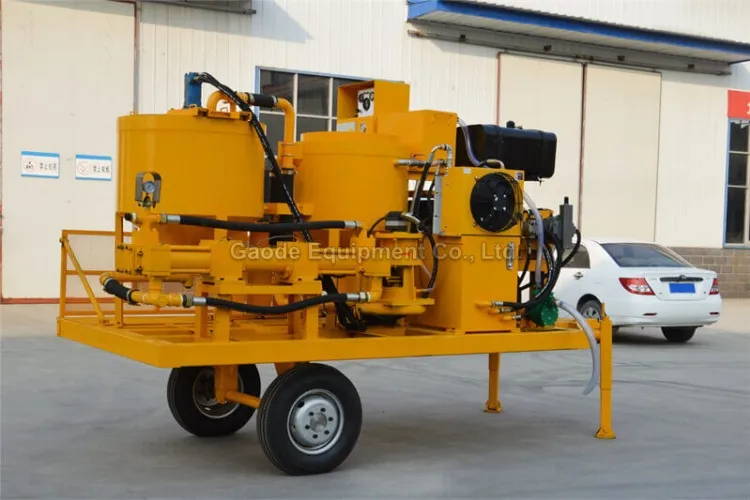

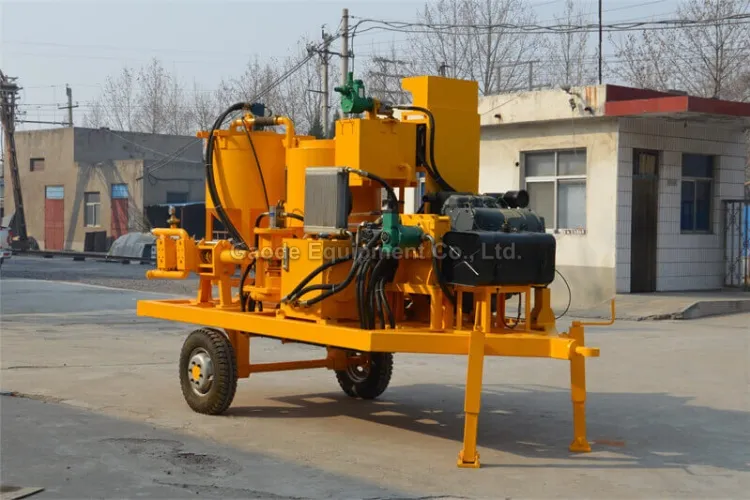

Details Images
Application
Gaodetec GGP200/300/100PI-D Cement Grout Injection Pump Mixer Station for Foundation Repair Ground is mainly used to make and grout the cement slurry in the highway, railway, hydropower, construction, mining and other ground and underground construction applications.
1. Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts.
2. Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting.
3. Construction - pavement under sealing, slab jacking and slab raising.
4. Marine - underwater foundations, piers, breakers, shoreline foundations.
5. Mining - tunnel lining, contact grouting, shaft waterproofing.
6. Utilities - encasements, waterproofing, slope line grouting.
7. Geotechnical - deep well casing, monitor wells, well sealing and abandonment.
FAQ
1. Are you the manufacturer or a trade company?
We are the manufacturer for producing grout equipment.
And we have owned a trading company to do International Business,
So that:
1)-We can supply good service with professional international trade experience.
2)-The price is much more competitive.
2. Can you do the ODM or OEM? What is MOQ?
Yes, it is possible as discussed, MOQ: 1unit.
3. What about delivery time? How long can I get the machine after the order?
The production time is as fast as 30-60 working days if you customize the machine.
The standard machine in stock can be delivered as soon as possible after ordering.
4. How to pay for yourself?
50% down payment, then production starts, and the balance 50% paid before shipping.
If the machines are in stock, pay 100% then delivery.
Our Advantages
Packaging and Delivery
Contact Supplier
1. What is the project you are going to do?
2. What flow and pressure do you demand?
3. What's the water-cement ratio of the material you will mix and grout?
4. Regarding the engine, would you like an electric motor or a diesel engine? if electric motor, 3 phase, 380v, 50HZ is ok for you?
