Clamping and handling of non-standard large objects
Specifications
- weight:111.000kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

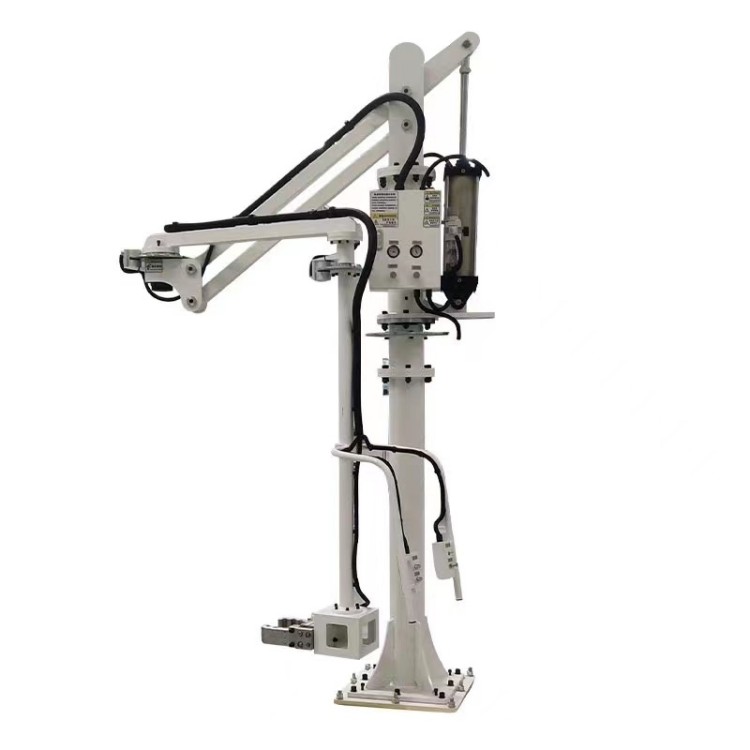

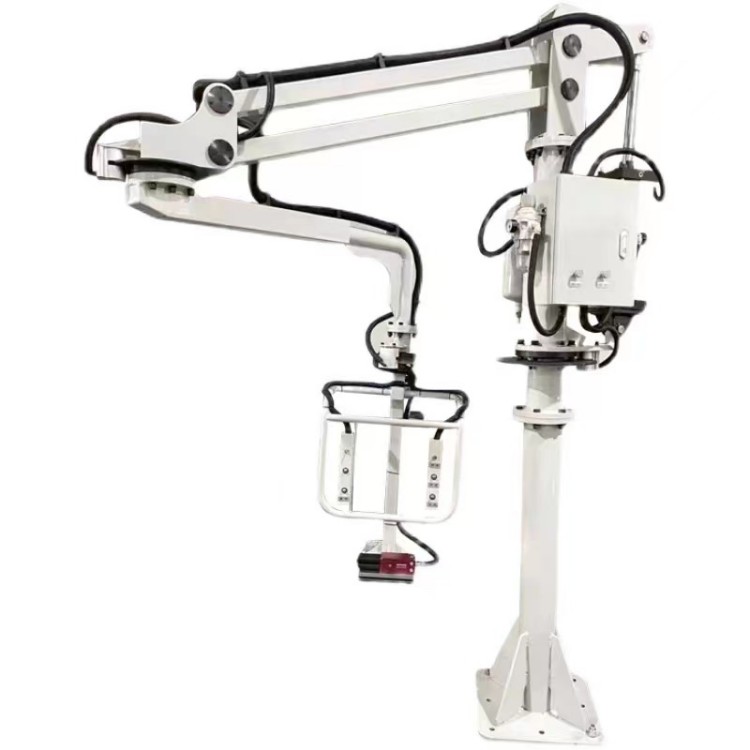

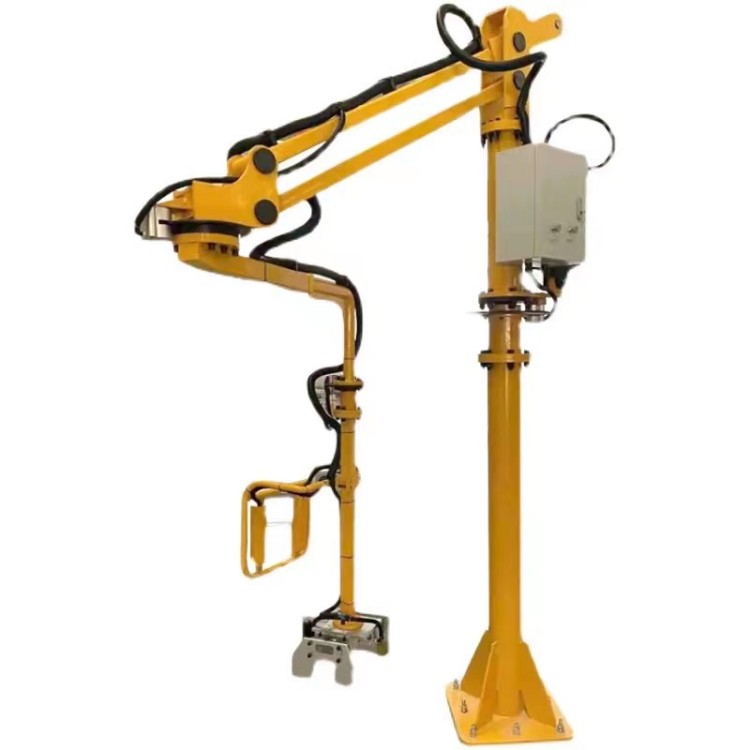

Product introduction：According to different working principles, there are boom type and cable type. Among them, the boom type balance crane has PBF, PBC, etc. due to different working curves; For the soft cable type, the main actuating elements are different, including the drum type (IRB), the linear cylinder type (PBB), the wire rope type and the chain type. According to different power sources, there are pneumatic type and electric type (EBC).

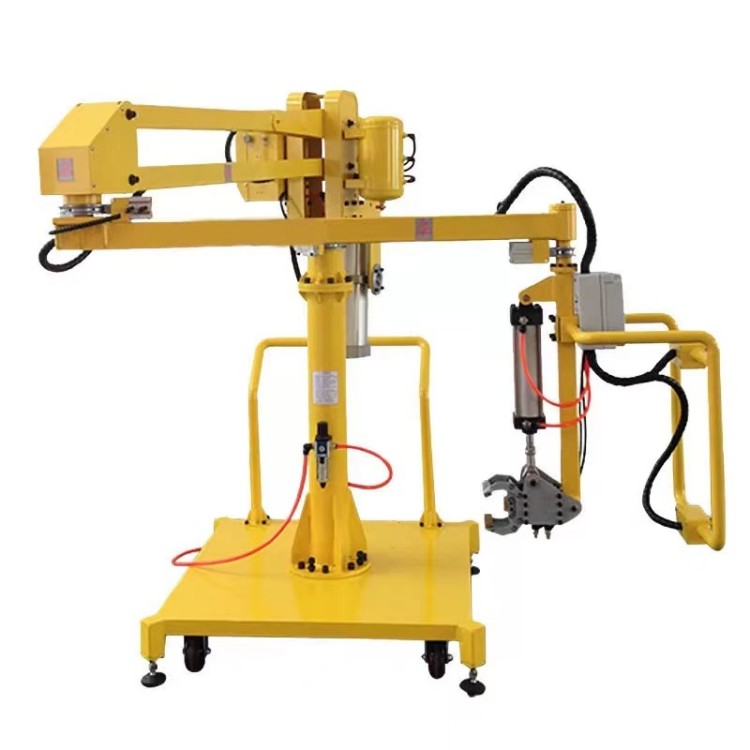

In addition, according to the different bases used by the system, there are floor mounted, floor mounted mobile, suspended fixed, suspended mobile, wall attached, etc.
Track system
In this scheme, double row C-type aluminum alloy rails are used to cooperate with the mobile platform trolley, and the lower flange of the platform trolley is connected with the hard arm manipulator. Make the whole equipment move steadily within the track travel. C-type track is made of imported materials with high strength and precision.
The non-metallic roller is made of high-strength wear-resistant nylon material and has a long service life.
host
a) It can realize the gravity balance state of materials with different weights, and is suitable for the precise transfer operation of materials.
b) When no load, full load and different workpieces are handled, the system can sense their weight changes, and realize the floating state of the load in three-dimensional space for accurate positioning.
c) The whole process is balanced and the movement is smooth, so that the operator can easily carry, position and assemble the workpiece.
d) The rigid arm can enable the manipulator to carry the workpiece over the obstacle; The horizontal arm can meet the movement requirements of horizontal placing and horizontal taking out of materials in relevant places.
e) The system can always keep the head of the manipulator level, giving full play to high operability.
f) The articulated braking device is provided with a plurality of rotary joints to realize the material taking and placing in a wide area; Equipped with a brake device, the operator can interrupt the movement of the manipulator at any time during the operation.
