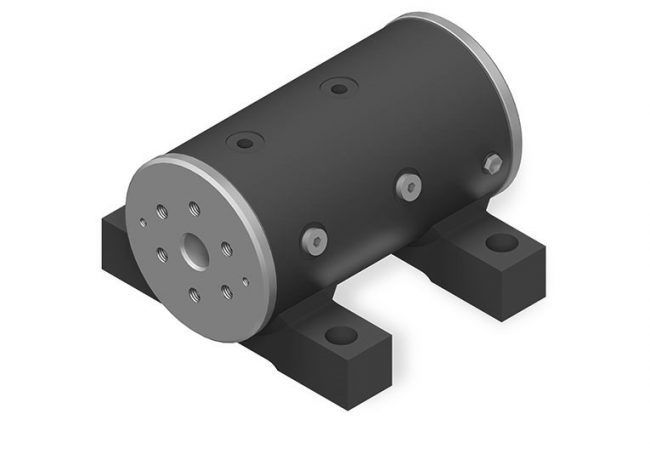

The standard products of dkx-d series of spiral swing oil cylinder can bear bending moment, and can be installed by straddle or cantilever. Dkx-b series swing cylinder is widely used in swing of straight arm / curved arm and other aerial work platform.

Important product specifications

Standard working pressure: 21MPa

Standard swing angle: 180 degrees

Driving torque: 508n. M ~ 5870n. M

Holding torque: 1300n. M ~ 8040n. M

Straddle bending moment: 2500n. M ~ 18000n. M

Cantilever bending moment: 1356n. M ~ 6500n. M

Axial load: 500kg ~ 4000kg

Radial load: 1380kg ~ 4000kg

Torque output mode: flange

Installation method: foot or horseshoe

Special models (torque, installation form, size, etc.) can be produced according to customers' requirements

Characteristics and advantages

01 compact structure

A larger screw angle is used in the cylinder to shorten the piston stroke.

02 high bearing capacity

The special internal structure of the oil cylinder enables the oil cylinder to bear large axial and radial loads.

03 zero leakage

The unique seal design makes the oil cylinder only have a very small amount of leakage approaching zero.

04 load direct connection

The load to be driven can be directly connected to the torque output.

05 custom module

According to the different needs of customers, customized production.
