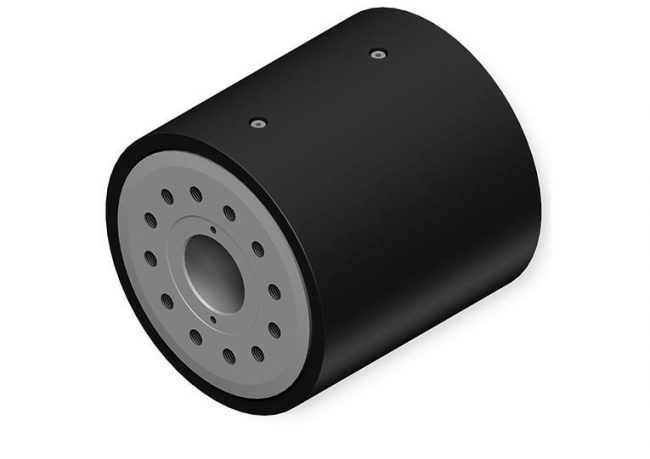

Dkx-c series spiral swing cylinder standard products can withstand bending moment, axial structure is compact, cantilever type installation can be used. It is widely used in municipal engineering equipment (working platform rotation), engineering vehicles (steering), robot equipment (joint movement) and jib crane (jib rotation), as well as many other positioning, lifting and swinging applications.

Important product specifications

Standard working pressure: 21MPa

Standard swing angle: 180 ° and 360 °

Driving torque: 190n. M ~ 2825n. M

Holding torque: 630n. M ~ 9400n. M

Cantilever bending moment: 565n. M ~ 11300n. M

Axial load: 907kg ~ 6800kg

Radial load: 907kg ~ 6800kg

Torque output mode: flange

Installation method: flange

Special models (torque, installation form, size, etc.) can be produced according to customers' requirements

Characteristics and advantages

01 compact structure

A larger screw angle is used in the cylinder to shorten the piston stroke.

02 high bearing capacity

The special internal structure of the oil cylinder enables the oil cylinder to bear large axial and radial loads.

03 zero leakage

The unique seal design makes the oil cylinder only have a very small amount of leakage approaching zero.

04 load direct connection

The load to be driven can be directly connected to the torque output.

05 custom module

According to the different needs of customers, customized production.
