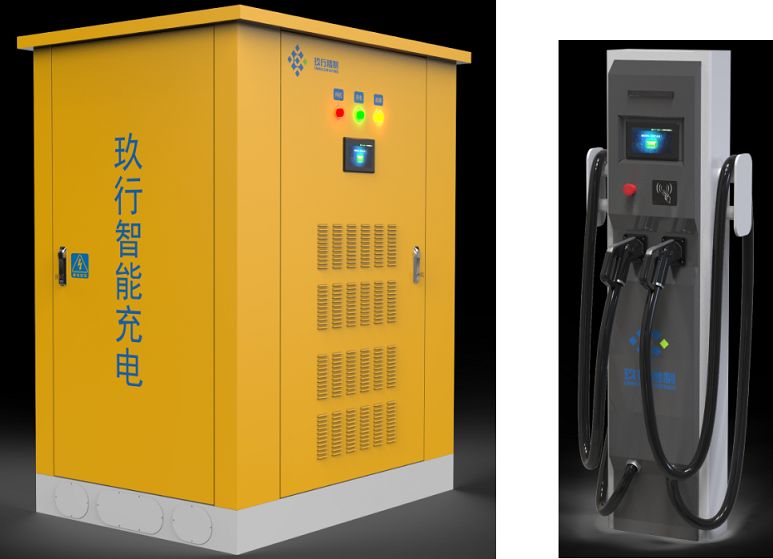

Esdc-200 series split pile

Scope of application

Esdc-200 series DC fast charging pile is suitable for fast charging of electric vehicles. It is suitable for installation in electric vehicle charging and exchanging power station, public parking lot, residential parking space and other places. It can provide DC power for electric vehicle power battery, and it is safe and convenient to operate.

AC input current            547A

AC input voltage            380VAC±15%

AC input frequency            43~67Hz

Output voltage range            200V~750V

Maximum output current            480A

THDi            <5%

PF            >0.99

efficiency            >93%

Charging gun length            7m (six charging)            Customizable

Auxiliary power supply (power supply for vehicle BMS)            12 VDC/10A

Rated operating current of residual current protection            30mA

Accuracy class of watt hour meter            Grade 1.0

DC insulation monitoring            Operating current > 10mA

Protection level            IP54

Noise            ≤65dB

Cooling mode            Intelligent air cooling

MTBF            ≥8760h

Mechanical operation life of connector            More than 10000 times

Human computer interaction mode            touch screen

Charging mode            One machine with six chargers

Dimensions            Length * width * height: 1000 * 1400 * 1800mm m3 (power cabinet)            Length * width * height: 300 * 360 * 1580mm3 (terminal)

Total weight (including module)            550Kg (power cabinet)            70kg (terminal)
