- Summary
- Specifications
Summary
- Place of Origin:China (mainland)
- Model Number:TH804
- Brand Name:Taihong
- Power(W):80HP
- Drive Type:4WD
- Usage:Agricultural
- By wheel:4 wheel
- Type:Farm tractor
- Certification:ISO, CE, CCC
Specifications
- Weight:1800.000kg
- Condition:New
- Moving Type:Wheel
- Fuel:gas / diesel
- Usage peiod:6-10 years
- Engine:Laidong
- Engine rated power:58.8kw
- color:Red or blue or green
- Package:No Package or Metal
- Specification:3565*1500*2160
- Dimension:Medium
- Tyre:657*176-12 13.6-20
- PTO speed:540/760, 540 / 1000
- Dry mass:1800kg
- Wheel base:1790mm
- Transmission box:8f+4r

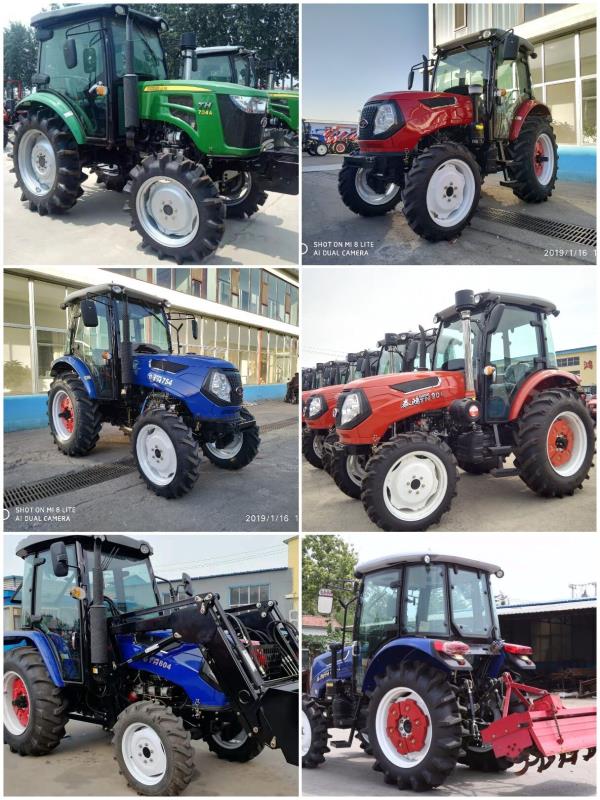

China 30Years Factory Directly Supply 80hp TH804 Mini Farm/Agricultural/Garden Tractors

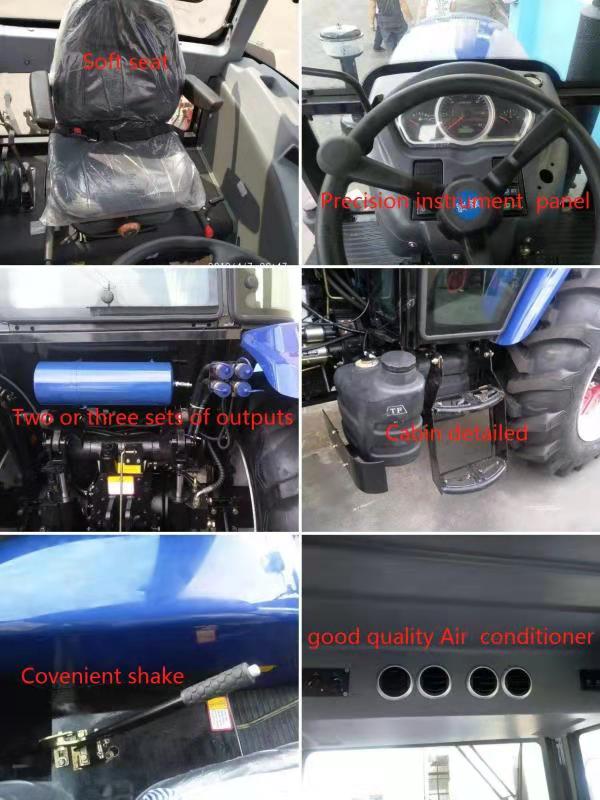

1. Characters and Selling points
(1) Big and Wide tyres, Strong power, low fuel consumption
(2) Weichai or Oriental red engine

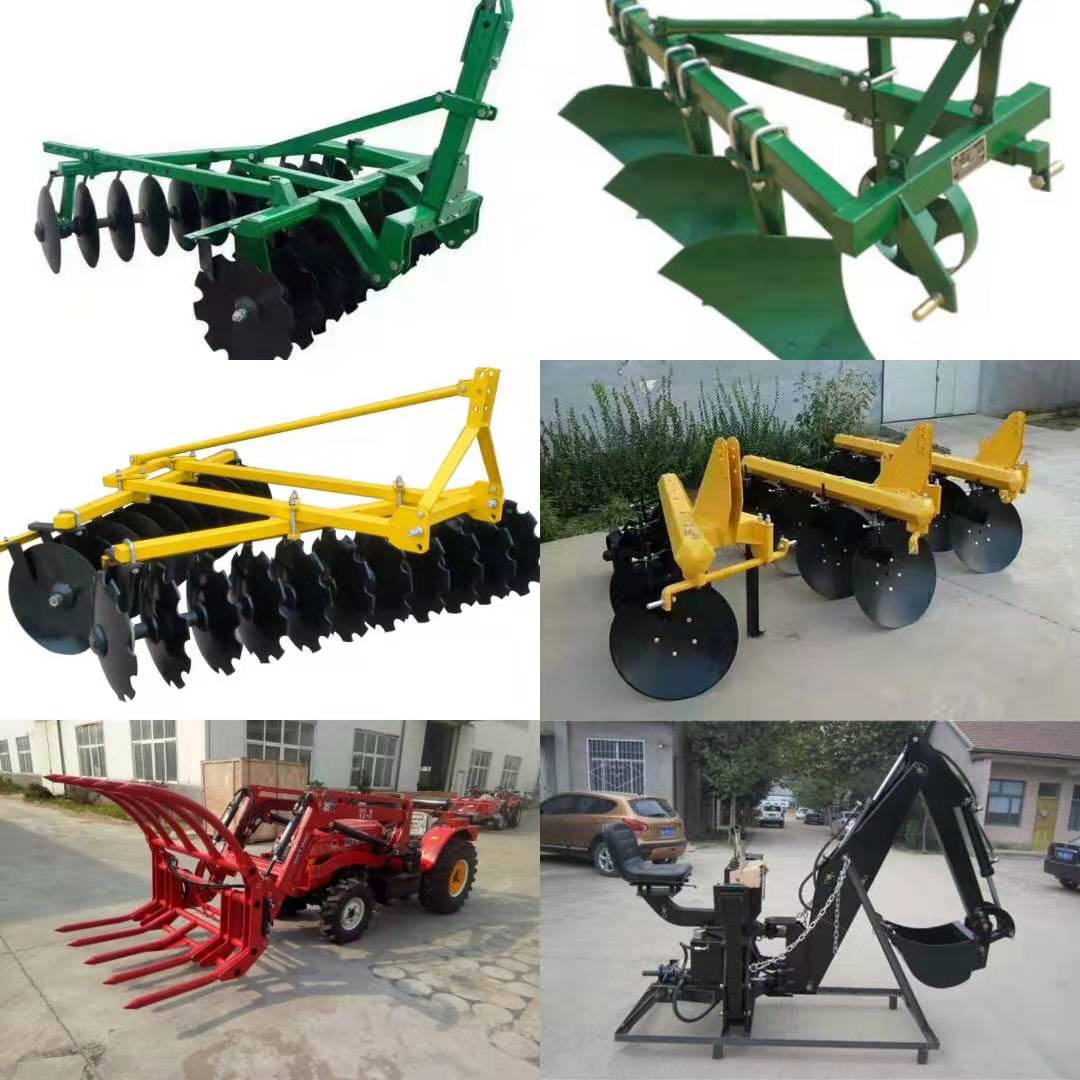

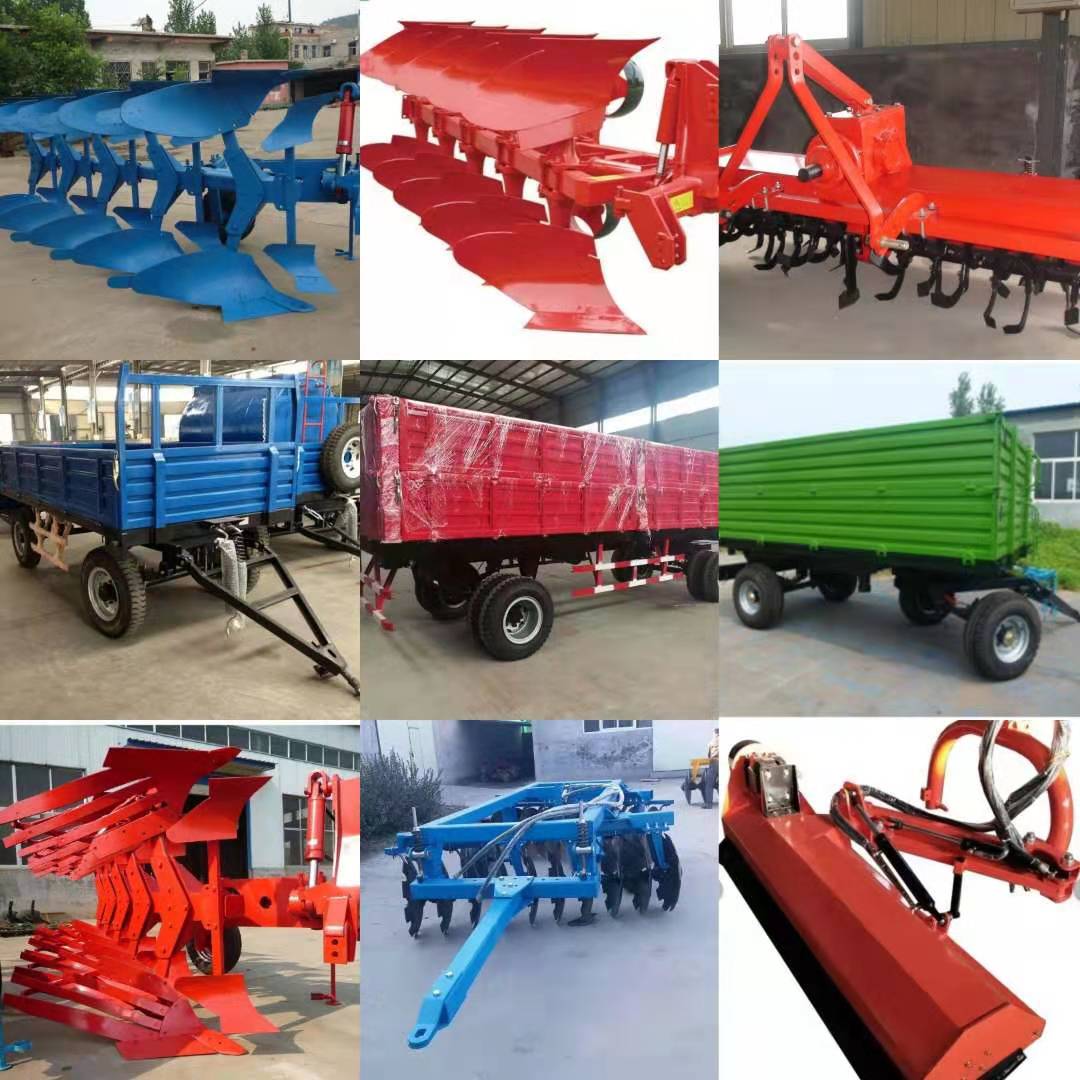

(3) Full hydraulic steering, small turning radius, 3 sets of outputs can attach all accessories
(4) Low noise,big traction and flexble steering
(5)Good stability and easy start performance
(6) Luxury cabin with air conditioner make farmers more comfortable
Our Company Advantages
Most competitive price under the service top quality, shipment on time, service in 24 hours
2.Basic Technical Data of 45HP 55HP tractor
| Weifang TaiHong tractor | |
| Adress | Baotong West Street, Weifang, Shandong, China |
| TB chassis | |
| Modle No | TH804 |
| Specification | 90hp |
| Type | 4X4 wheel |
| L*W*H(mm) | 4200*1715*2390 |
| Wheel base(mm) | 2060 |
| Front wheel tread | 1290, 1390 (step adjustable ) |
| Rear wheel tread | 1000-1500 ( stepless adjustable ) |
| Min ground clearence(mm) | 255 |
| Dry mass(Kg) | 2600 |
| Clutch | single stage |
| Steering | Hydraulic steering |
| Tyre | 8.3-24, 14.9-30 |
| transmission box | 12f+12r shifts |
| Engine data | |
| Engine brand | Quanchai |
| Engine type | 4C6-90C33 |
| Engine rated power(kw) | 66.17 |
| Engine rated speed(r/min) | 2400 |
| Fuel | diesel |
| Front tyre | 8.3-24 |
| Rear tyre | 14.9-30 |
| suspension type | Rear three point suspension / Category 2 |
| PTO speed | 540 / 1000 |
| PTO spline Nos | 8 |
| PTO shaft & Spline size | 38 spline 8 teeth |
| lifting force (N) | 15880 |

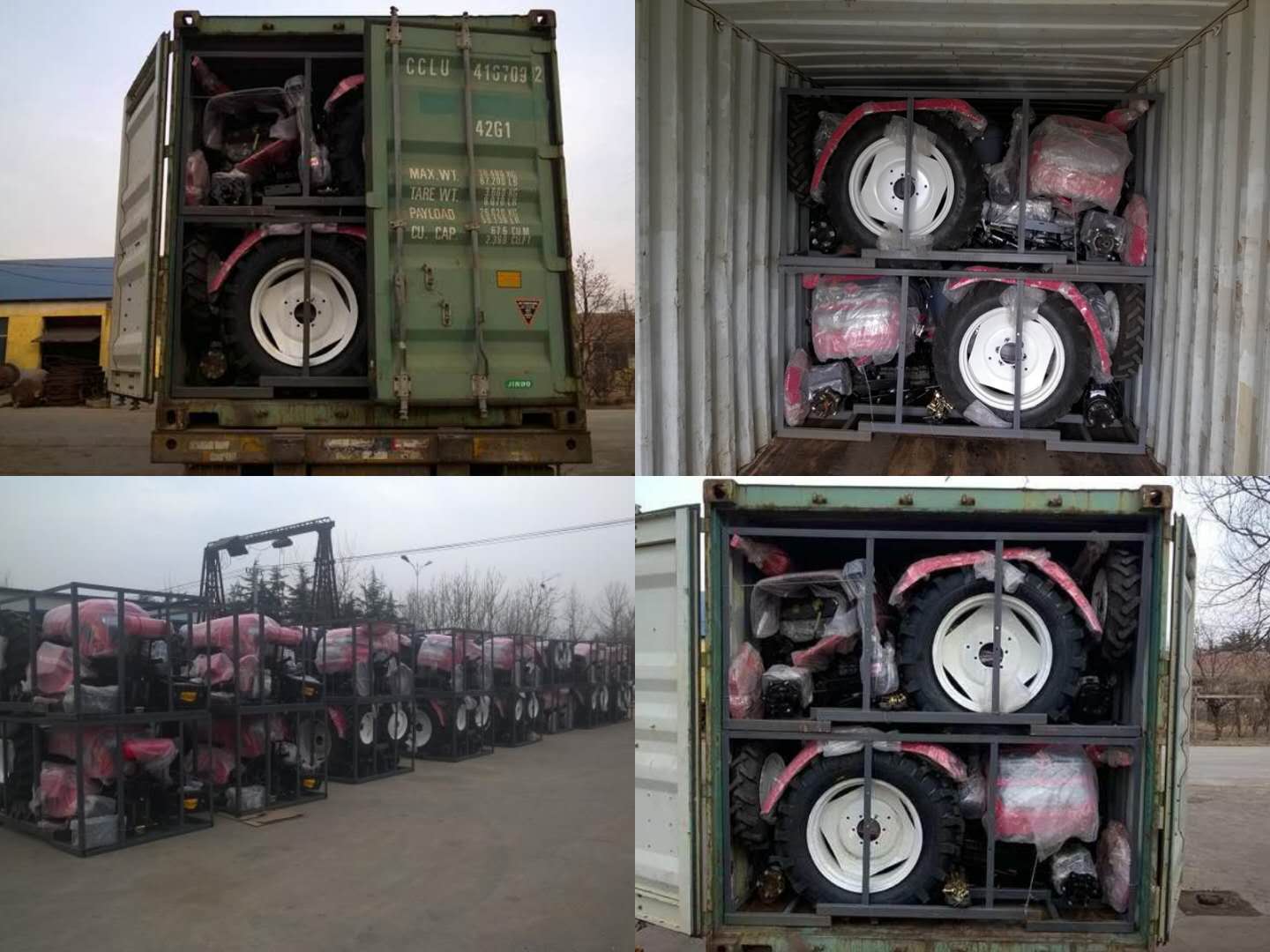

4.Packing & Delivering
5.Service and Warrenty
Pre-sales service
1.24 hours online, Any questions about our machine will be quickly replied.
2.Optimum design and selection according to customer's requirements and environment
3. Welcome to visit our factory and discuss cooperation
Selling service
1.test and inspect every tractor carefully and seriously
2. Technical guidance on common problems, Provide guidelines and videos on how to use them
3.send you the tractor photos for you before packing for your comfimation
After-sales service
1. Except for fragile parts, the whole machine is guaranteed for one year
2. Provide 24-hour technical support via e-mail/telephone
3. We will provide you with the parts atlas and installation video.
6. Company profile
Weifang Taihong Tractor Co.,Ltd established in 1990, with coverage of 206677 square meters, is one of the most professional tractor manufacturer in China. With 30 years development, Taihong is capable of producing tractor from 25hp to 240hp and has a large market share at home and abroad. Taihong has its own foundry, casting, machinery processing line. Some parts are made by itself to realize the whole quality control from the spare parts
Certification & Reputation
7. FAQ
(1) Are you manufactury or trade company?
We are Manufactury specialized in 25hp-240hp tractor for 30 years, In Weifang, Shandong province, China. Our factory have passed ISO9001, CCC, CE, SGS and BV. Also we had quality control department for purching products for clients. And that's the reason why our tractor's price are so reasonable.
(2) Can we have our Logo or company name to be printed on your products or package?
Sure. Your logo could be printed on your products by Embossing, Sticker or Silk-screen Printing.
(3) About price
The price is negotiable. It can be changed according to tractor optional or package.
(4) About Payment or other questions
We accept LC,TT, and if you have other questions Pls email me or chat with me directly.
