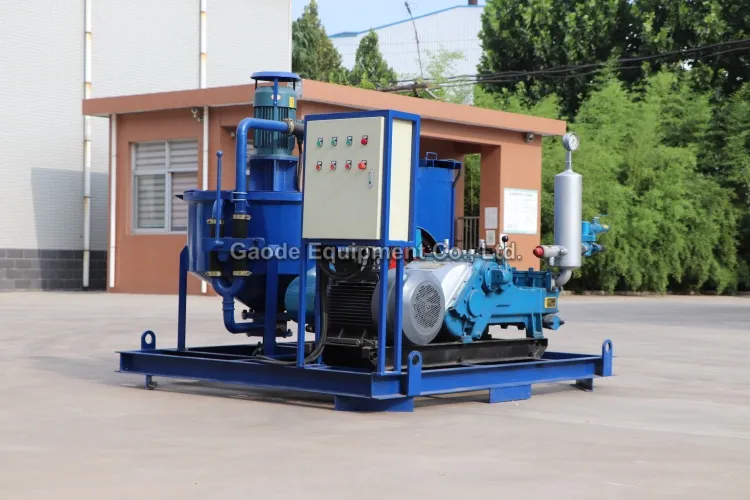

Gaodetec GGP400/700/320/100TPI-E Grout Injection Pump Plant for Ground Construction



GGP400/700/320/100TPI-E
Specs & Compare
Details
Specifications
- Weight:1500.000kg
- Type:GGP400/700/320/100TPI-E
- Mixer Volume(L):400
- Agitator Volume(L):700
- Grouting Pump Stroke (mm):110
- Dimension(mm):2300×2100×1880
- Weight(KG):1500
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Description

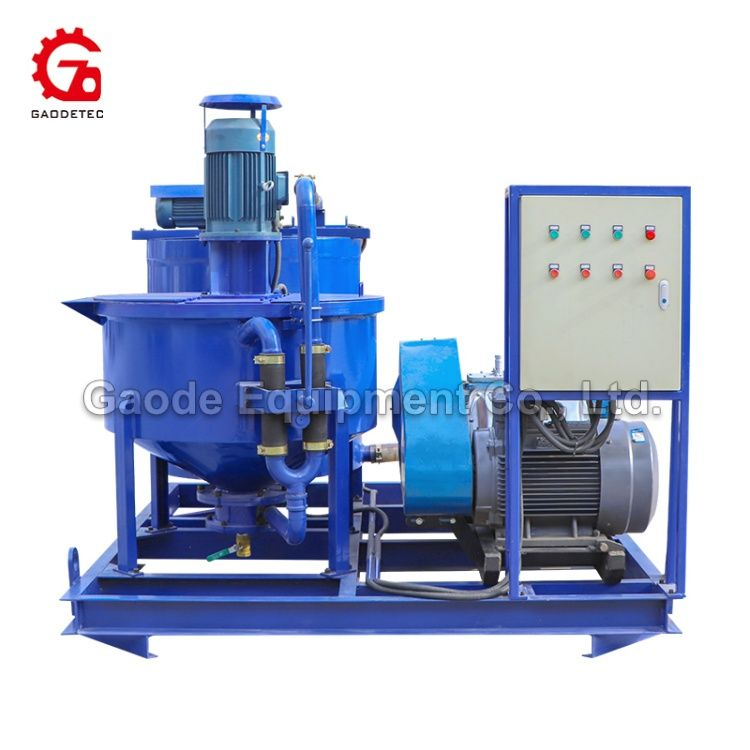

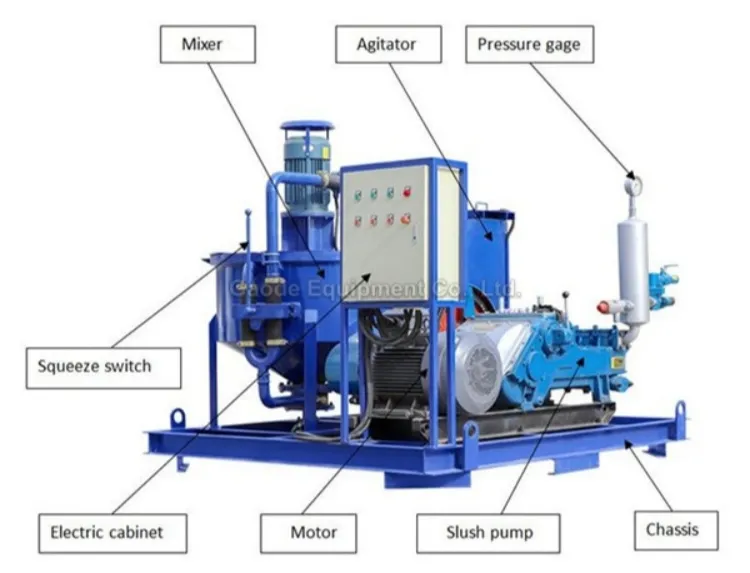

Gaodetec GGP400/700/320/100TPI-E Grout Injection Pump Plant for Ground Construction is a combination of mixer, agitator and grout pump in one plant. It is mainly used in highway, railway, hydropower,construction, mining and other ground and underground construction. Grout plant have special mixing effect of cement or bentonite with water is archived in mixer by a high turbulence created in the pump casing. This turbulence with its high shear forces separates the cement or bentonite particles which results in a fully hydrated suspension.
As soon as the mixing process is over, the mixing is transferred into the agitator. The slow stirring paddle prevents the grout from settling out of suspension and removes any air bubbles from the mix. Each machine incorporates mixers and pumps of matched capacity which together with an agitated storage tank enable virtually continuous operation once work has commenced.
The features and advantages of this machine are as follows:
Three cylinders piston pump with single acting to ensure the continuous slurry flowing (small pulse) and not easily leaking compared with the double acting piston pump.
Grouting pressure and displacement is adjustable.
The function switch between mixer and pulping machine is realized by using squeeze switch.
Triplex single acting reciprocating piston pump acted as universal grouting applications.
Easy to operate and maintain.
Up to 5mm particle size.

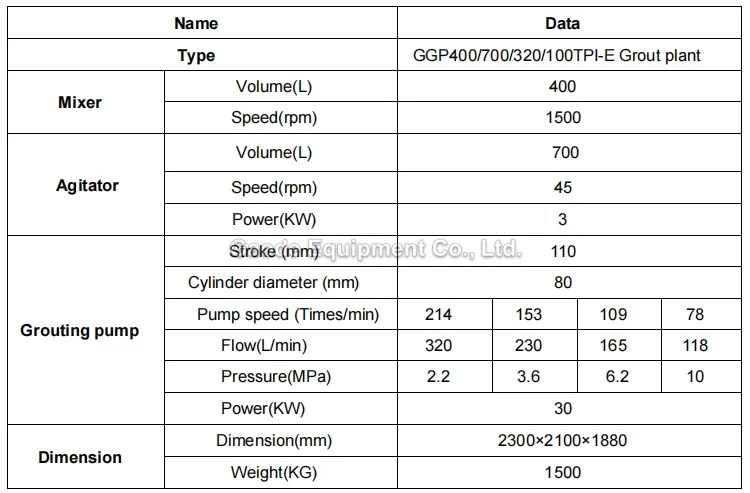

Parameters

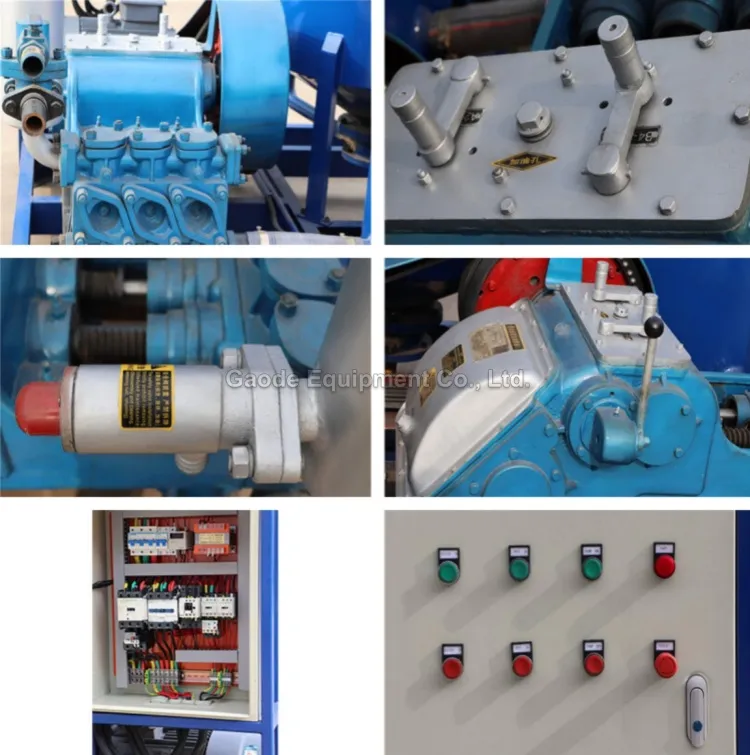

Details Images


Application
GGP400/700/320/100TPI-E Grout Injection Pump Plant is mainly used to make and grout the cement slurry in the highway, railway, hydropower, construction, mining and other ground and underground construction applications.

FAQ
1. Are you the manufacturer or a trade company?
We are the manufacturer for producing grout equipment.
And we have owned a trading company to do International Business,
So that:
1)-We can supply good service with professional international trade experience.
2)-The price is much more competitive.
2. Can you do the ODM or OEM? What is MOQ?
Yes, it is possible as discussed, MOQ: 1unit.
3. What about delivery time? How long can I get the machine after the order?
The production time is as fast as 30-60 working days if you customize the machine.
The standard machine in stock can be delivered as soon as possible after ordering.
4. How to pay for yourself?
50% down payment, then production starts, and the balance 50% paid before shipping.
If the machines are in stock, pay 100% then delivery.
