Summary
- Dimension(Long * Breadth * High):4993×3479×3150
- Machine Weight:16100kg

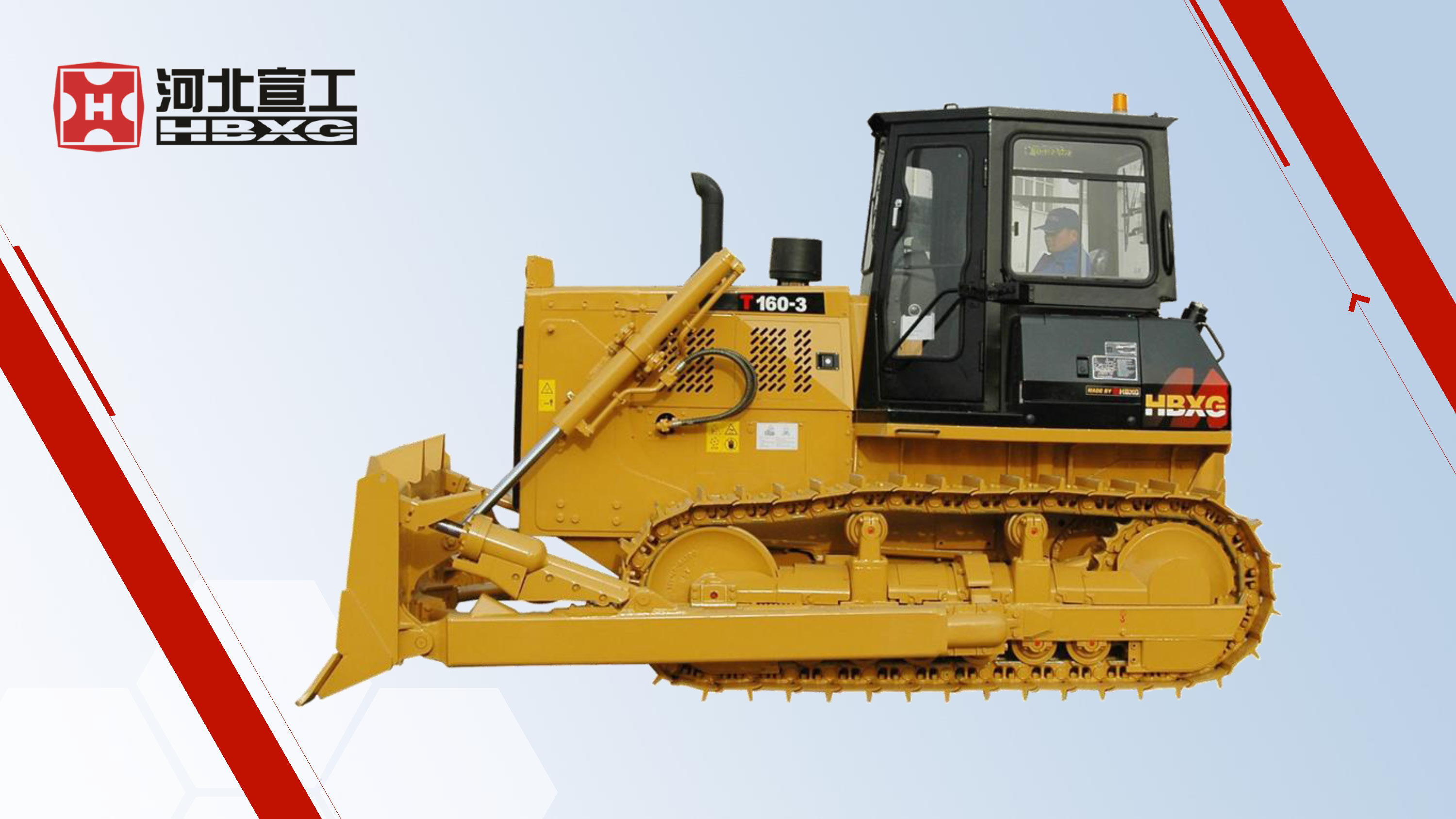

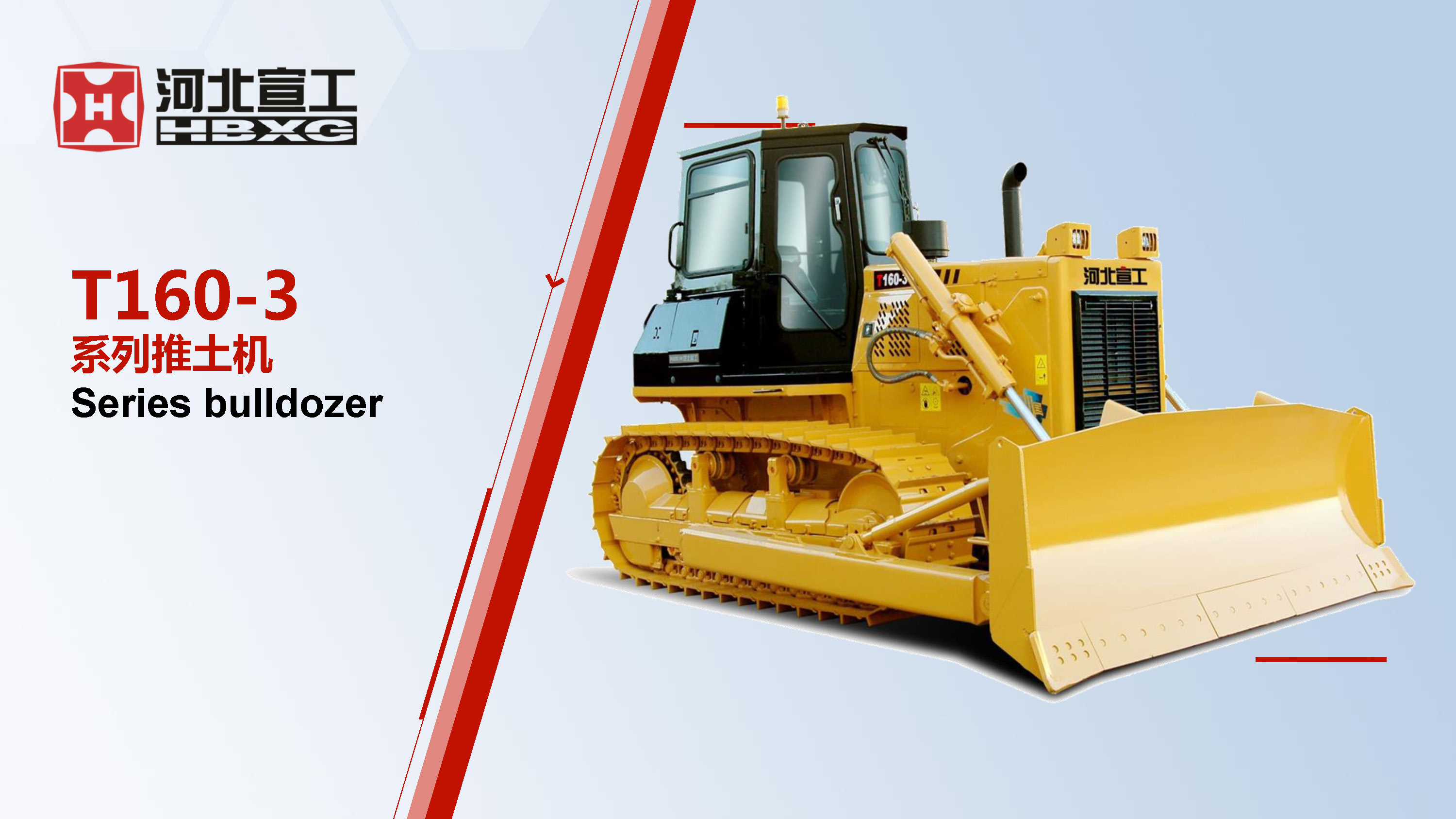

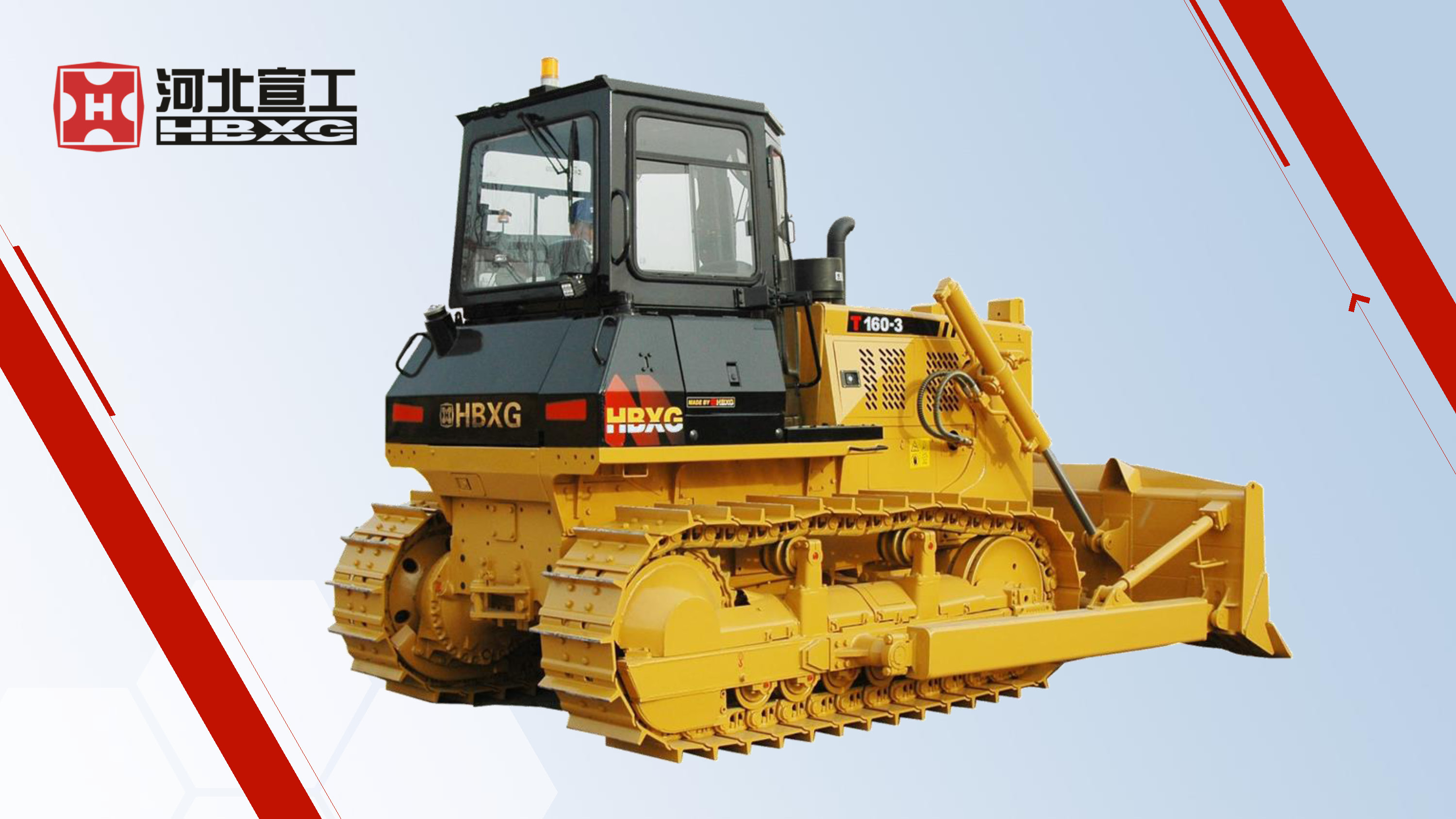

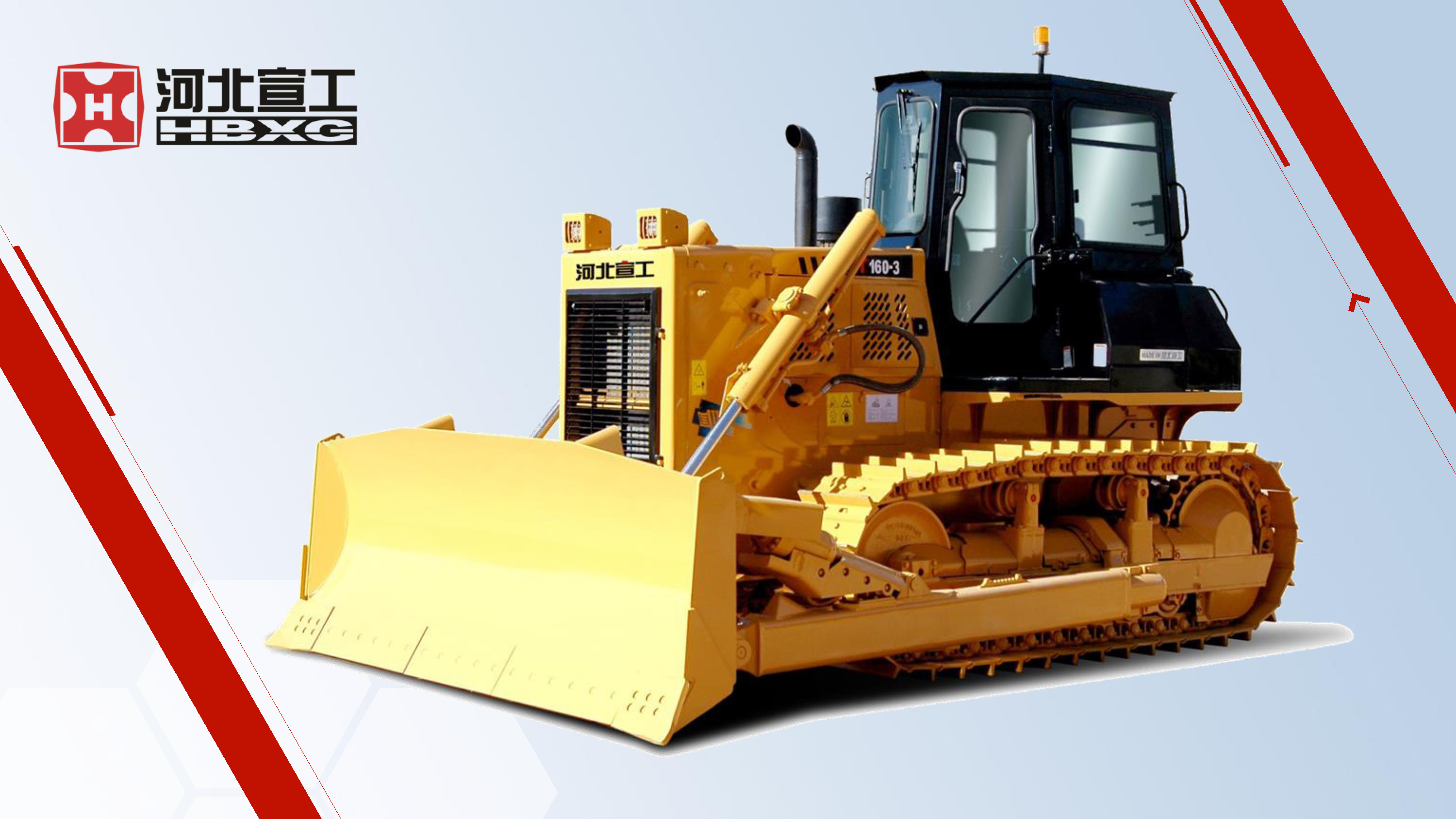

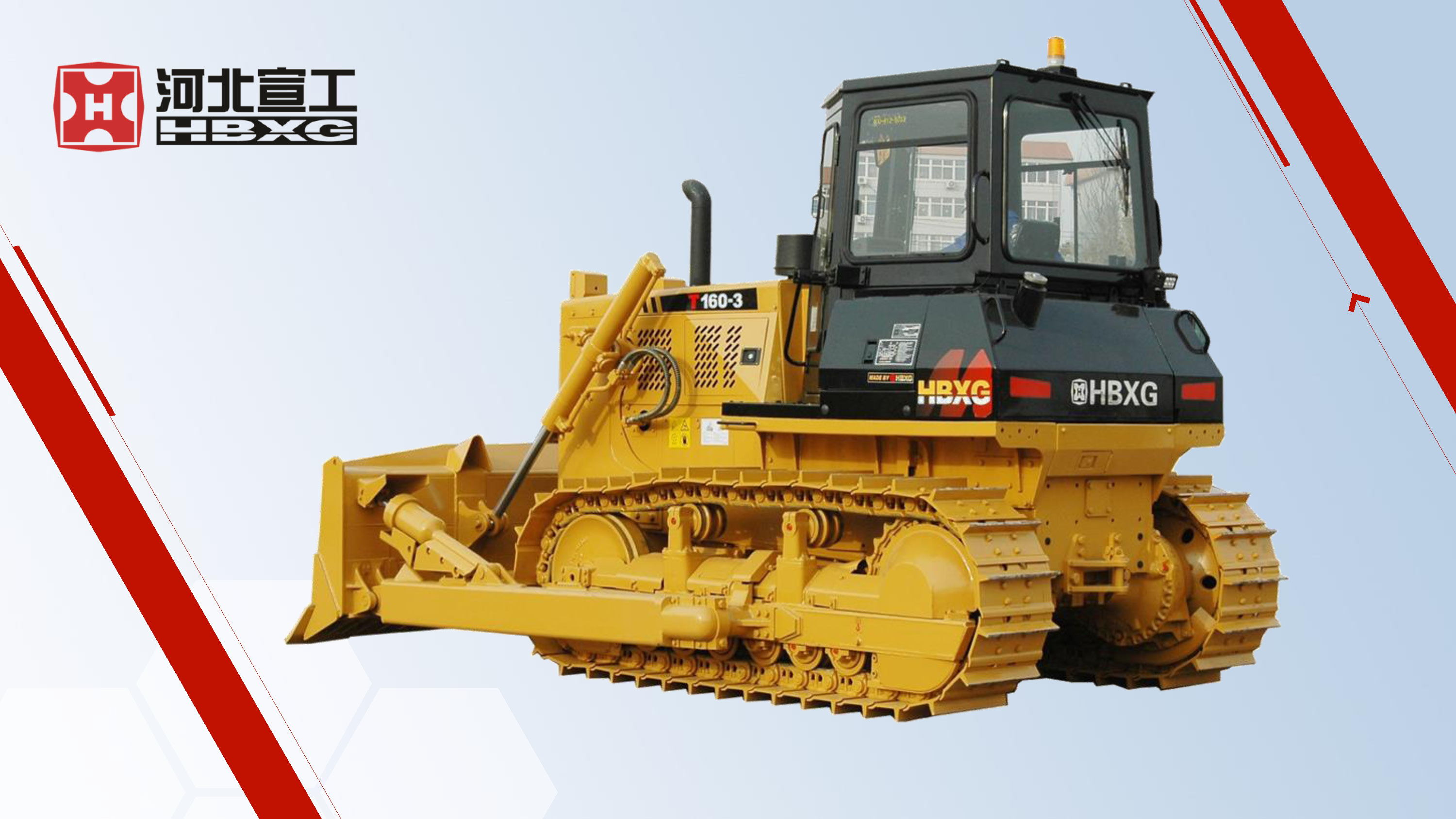

- Model Number:T160-3
- Brand Name:HBXG
- Place of Origin:China
- Certification:ISO9001
Details
- Product Name:G5CE172BF0A761
- Display online time:2019-05-20
- weight:16100.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:crawler
- Model:T160-3(160HP)

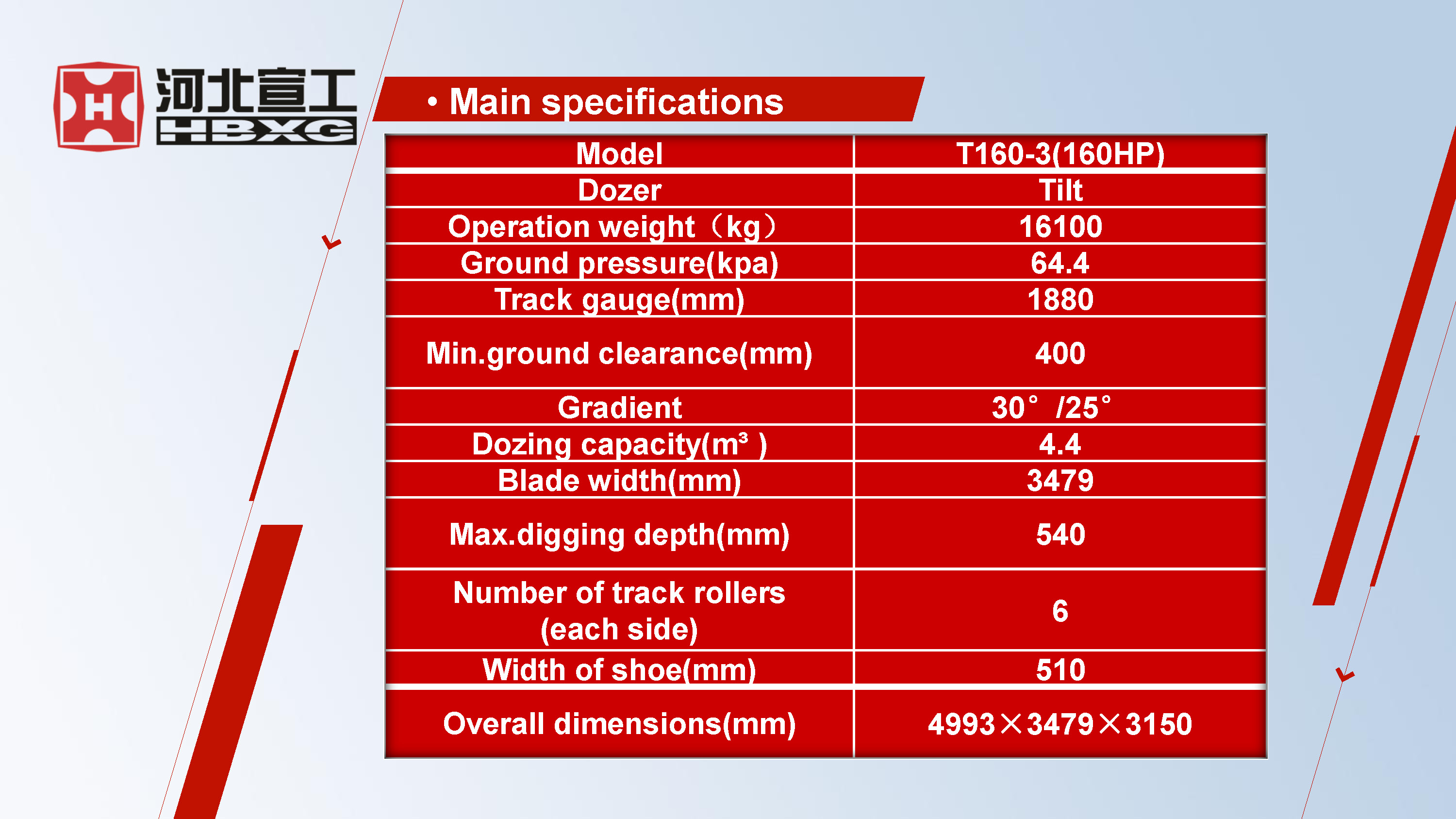

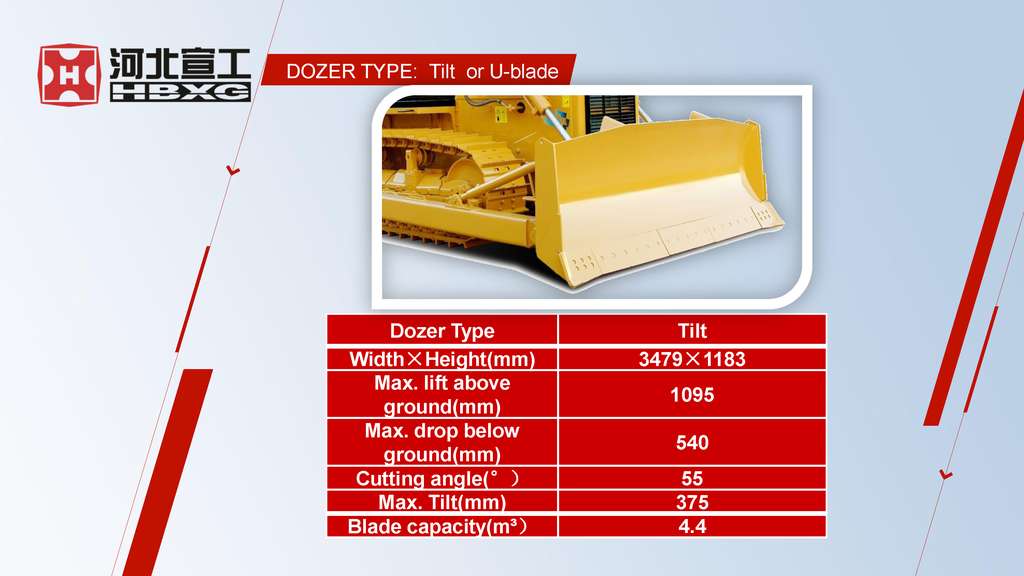

- Dozer:Tilt
- Operation weight（kg）:16100
- Ground pressure(kpa):64.4
- Track gauge(mm):1880
- Min.ground clearance(mm):400
- Gradient:30°/25°
- Dozing capacity(m³ ):4.4
- Blade width(mm):3479

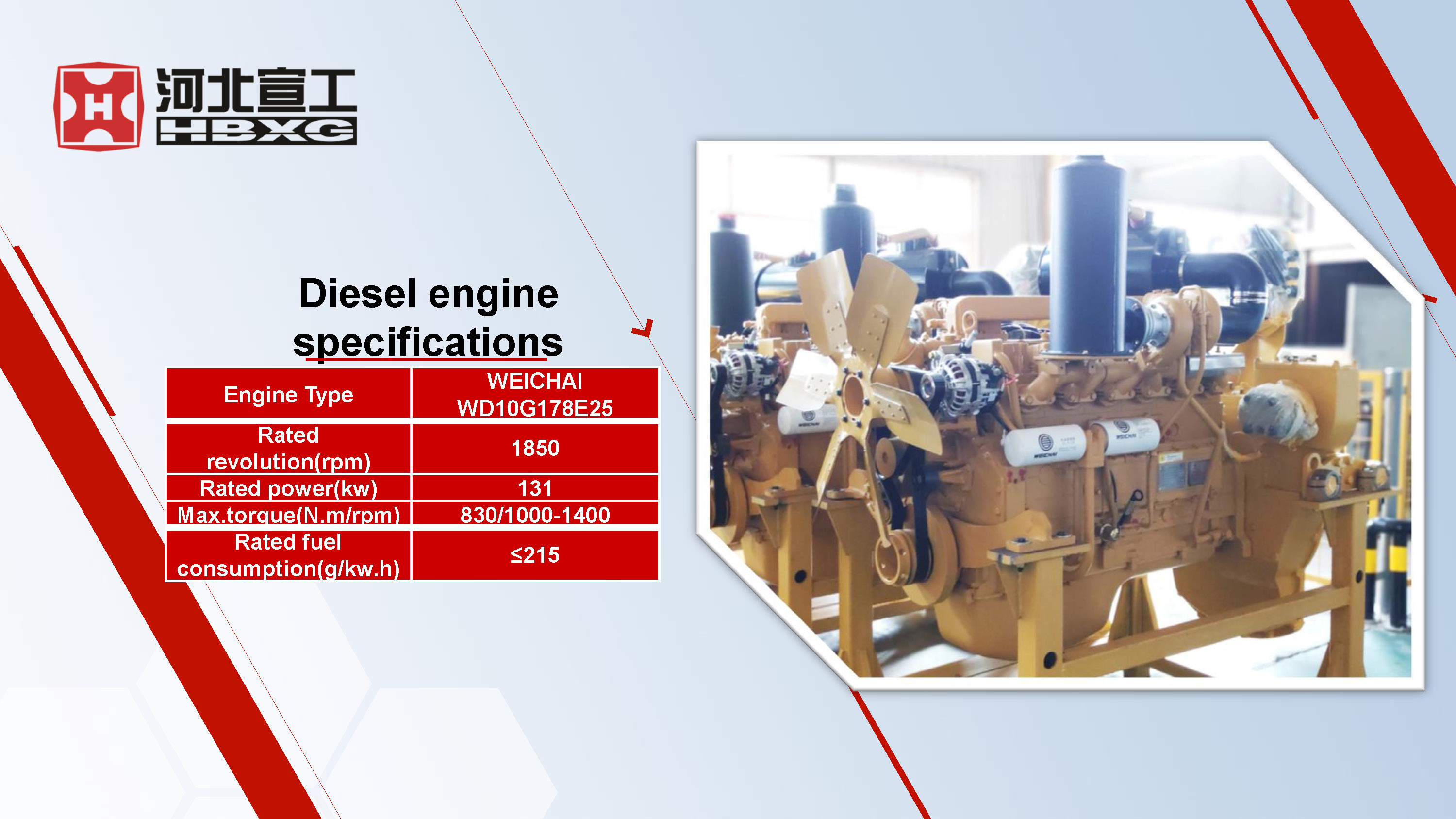

- Engine Type:WEICHAI WD10G178E25
- Rated revolution(rpm):1850
- Rated power(kw):131
- Max.torque(N.m/rpm):830/1000-1400
- Rated fuel consumption(g/kw.h):≤215
- Undercarriage system:Swing type of sprayed beam,suspen-ded.Structure of equalizer bar.
- Number of track rollers(each side):6
- Width of shoe(mm):950(1070)

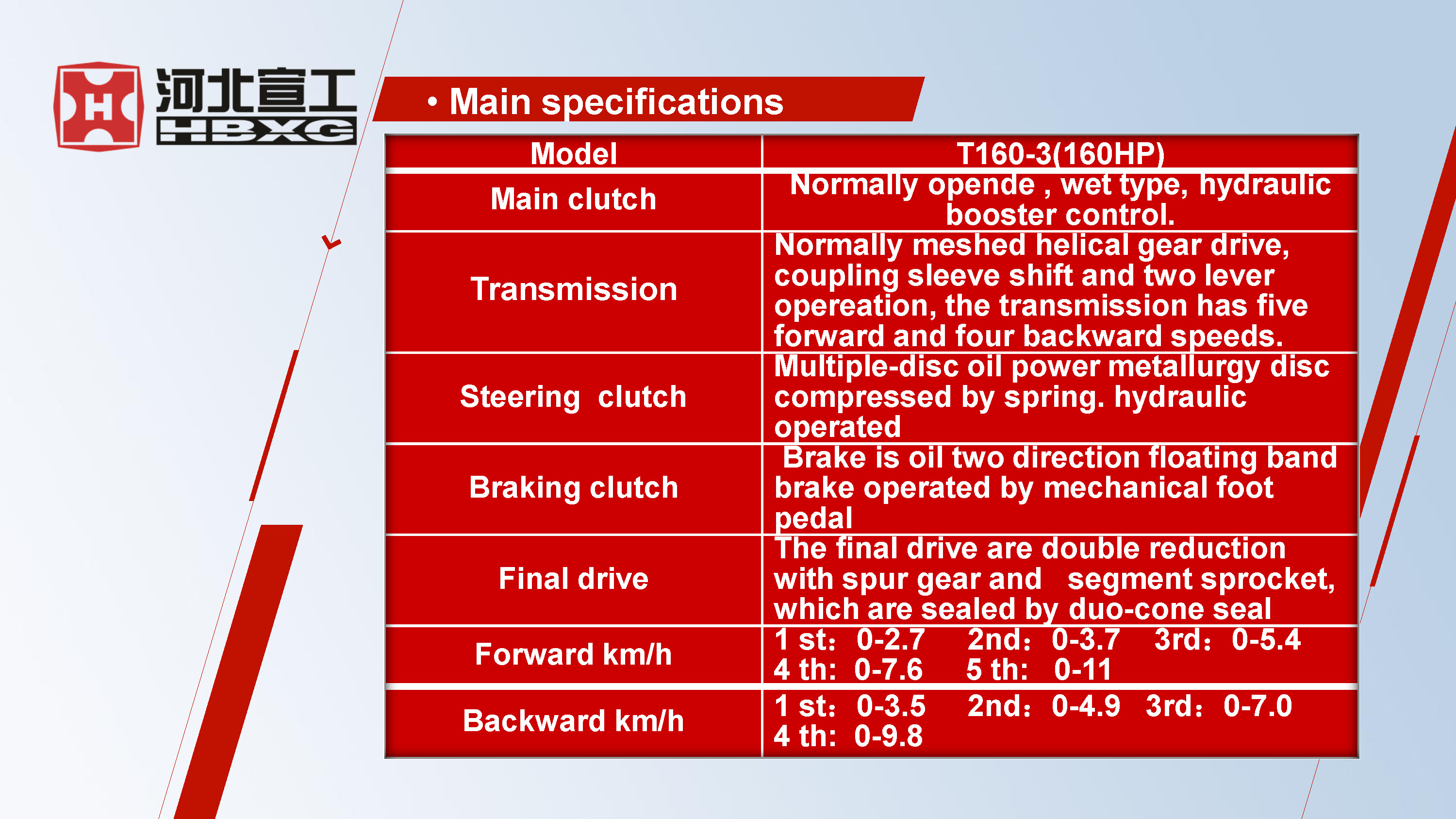

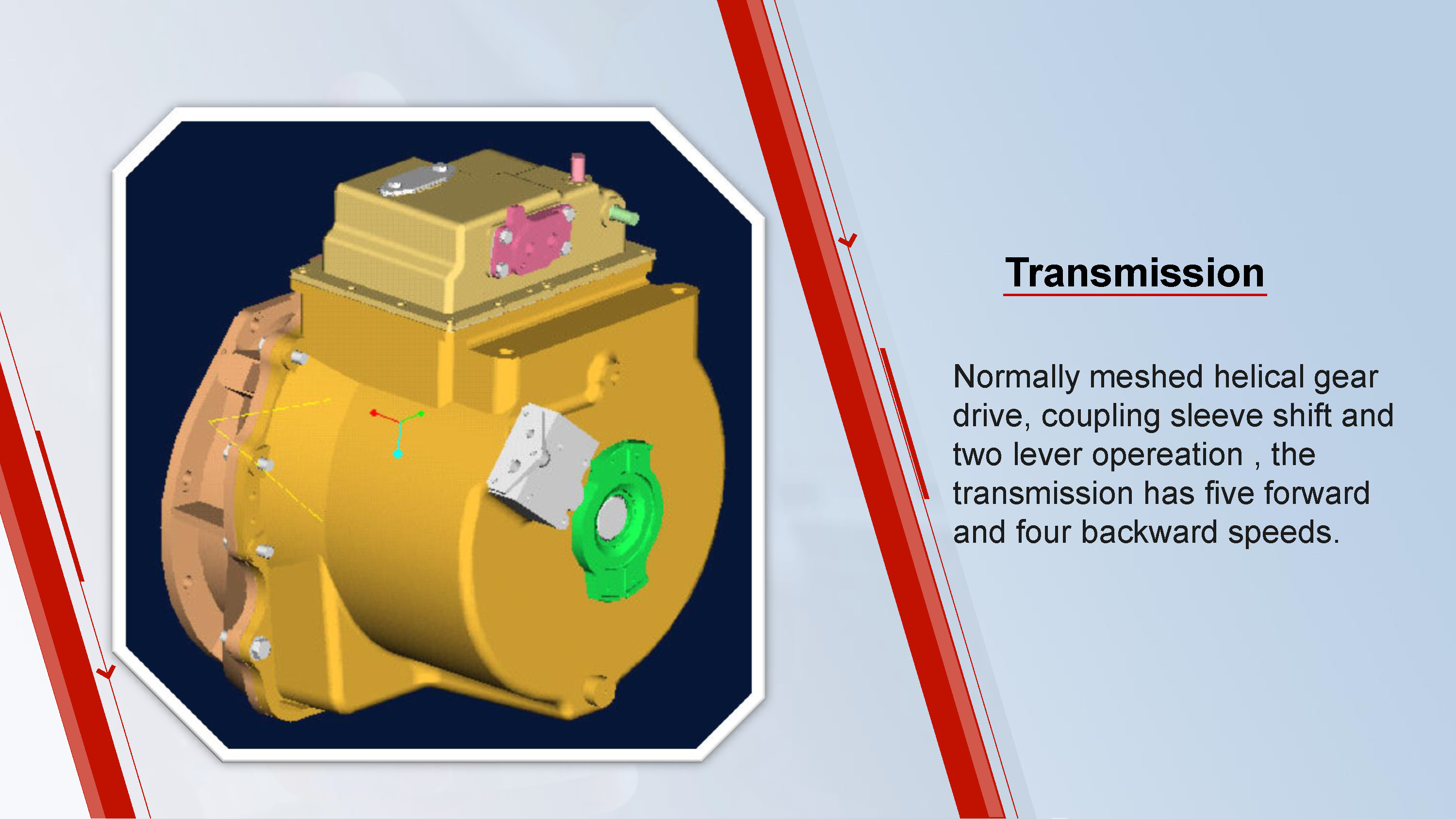

- Forward （km/h）:1 st：0-2.7 2nd：0-3.7 3rd：0-5.4 4 th: 0-7.6 5 th: 0-11
- Backward （km/h）:1 st：0-3.5 2nd：0-4.9 3rd：0-7.0 4 th: 0-9.8
.jpg)
.jpg)
.jpg)
.jpg)
Response Time : 12 hours
HBXG is the pioneer of the track bulldozer manufacture in China. Now it has become a state-owned public company, a leading manufacturer of bulldozer.
