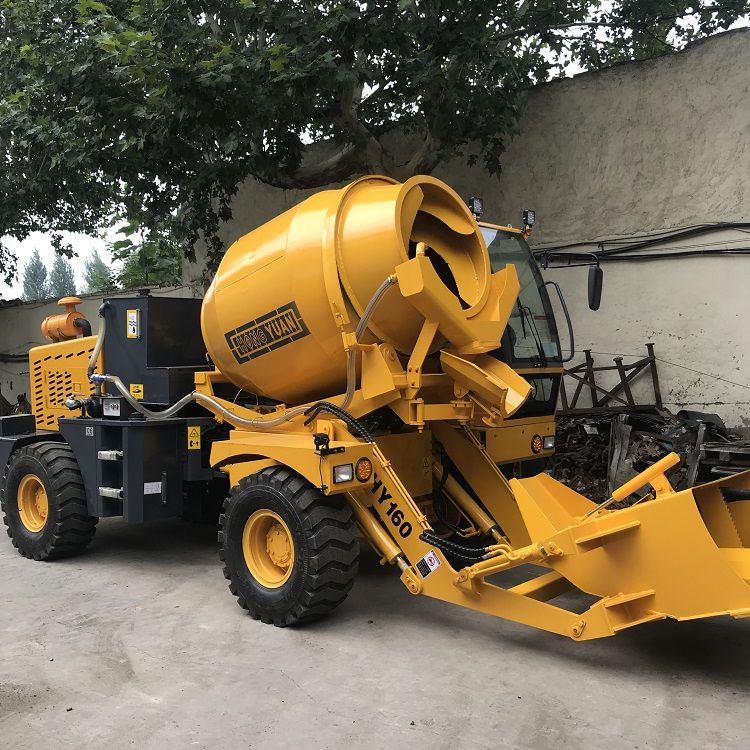

HY-160 self loading concrete mixer

  • HY-160 self loading concrete mixer
  • HY-160 self loading concrete mixer
  • HY-160 self loading concrete mixer
  • HY-160 self loading concrete mixer
  • HY-160 self loading concrete mixer
  • HY-160 self loading concrete mixer

Share:

HY-160 self loading concrete mixer

Chat Now 1 / EA (Min. Order)
Model: HY-160
Engine: Yunnei 4102 engine 60KW.
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
HY-160 self loading concrete mixer
HY-160 self loading concrete mixer
Quantity:
- + /EA

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications

Summary

  • Dimension(L*W*H):6180*2270*2626mm(3434mm)

Specifications

  • Weight:2222.000kg
  • Condition:New
  • Moving Type:Other
  • Tread:1600mm
  • Wheelbase:2500mm

Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.


The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits.

SELF LOADING CONCRETE MIXER HY-160

DELIVERY TIME:20 working days after deposit

PAYMENT TERM:30% T/T payment in advance ,balance before shipment

PACKING STYLE:Nude package ,2 unit in 40HQ container

WARRANTY:1 year From the date customer receive the machine

PRICE VALIDITY : 20 days

Model

Desc

Qty

EXW price



HY160  mobile self loading concrete mixer

Yunnei 4102 engine 60KW.

Concrete productivity 1.6cbm

4 batches per hour.

Hydraulic Torque Converter Transmission,

4 wheel drive ,articulated style.

20.5/70-16 tyres .

Double Reverse Camera

Automatic upper water system ,with pump and pipes.

warning light, back sound, radio, fan, hand brake, extinguisher, window hammer, Easy damaged spare parts ,tool box.

1









Turbo-Wom rotation 240°rotation function







Total













  Specification and Photo

Name

Item

Spec

Overall machine

Net weight

5500kg

Overall size

6180*2270*2626mm(3434mm)

Transmission

Full Hydraulic

4WD

Brake

Air brake

Chassis

Off-road

Tread

1600mm

Wheelbase

2500mm

Loader bucket

Capacity

0.4cbm

Control

Hydraulic

Tilt Angle

30%



Speed

High speed

0-25KW/H





Low speed

0-9KW/H

Min turning radius

6.2m

Tyre Model

20.5/70-16 tyre

Engine

Type

Yunnei

4102

Rated Power/RPM

60KW

Cylinder

4

Starter

Electric

Cooling type

Water Cooling

Maxing Drum





Drum full capacity

2.2cbm

Drum work capacity

1.6cbm

Bank angle

16°

Chute

Swing Angle

60°

Angle control

Hydraulic

Size

100CM

Loader

Weight model

Computer control

Concrete standard

C15.C20.C25.C30

Accuracy

Cement

≤±2%/time

Relative error

≤±3%/time

Water

≤±1%/time

Additive

≤±1%/time

Admixture

≤±2%/time

Loader control

Hydraulic control 4 way stick
